N·m.

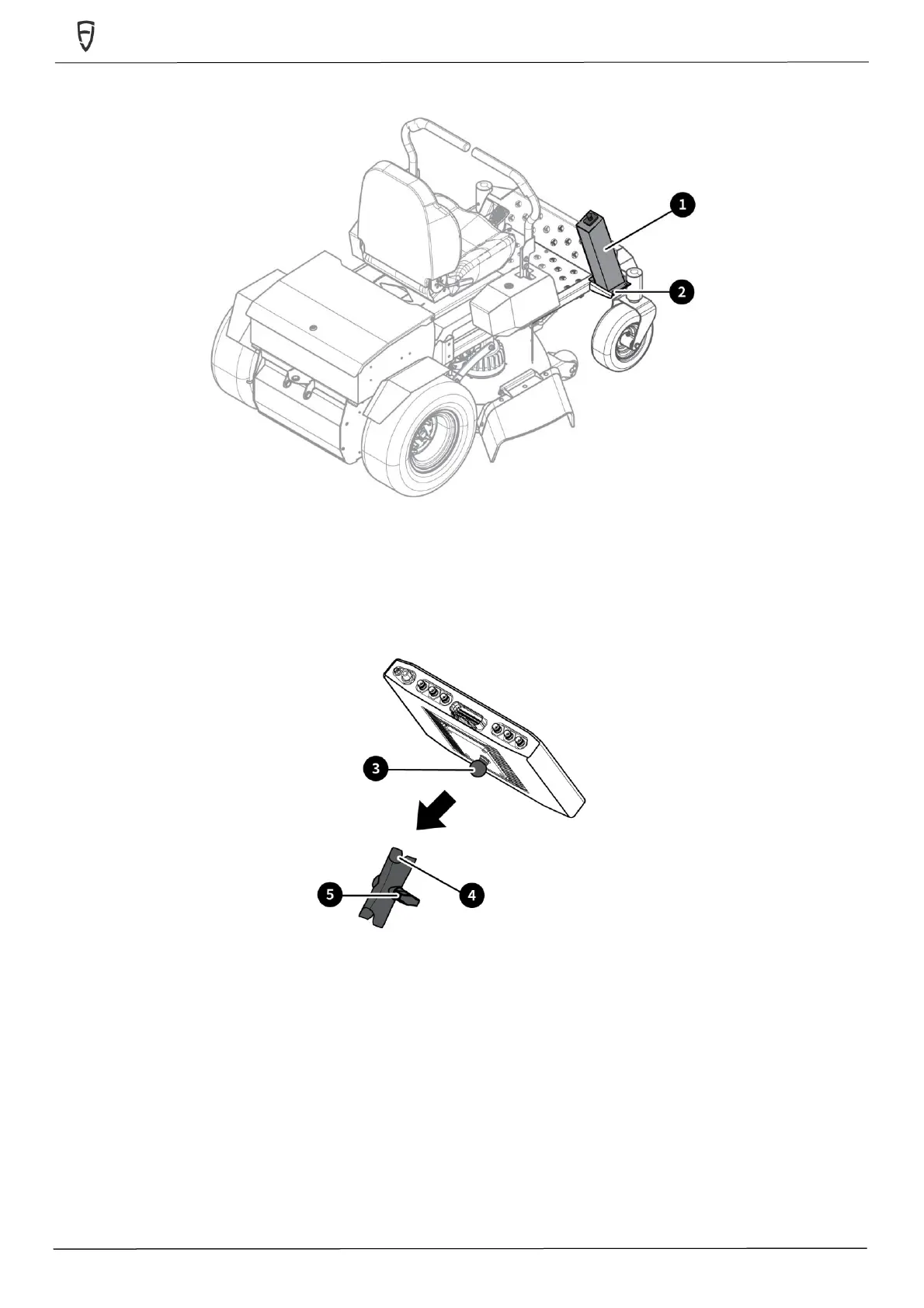

Figure 16. Install the pole on the mower body
2. Plug the ball head of the control terminal mounting plate into the ball socket of the
support rod, and lock the handle .
Figure 17. Install the support rod on the control terminal
3. Plug the ball socket of the support rod of the control terminal onto the ball head of the
mounting plate on the pole.
4. Connect the main harness to the corresponding port of the control terminal.
