6.3 Installing the Seat
Install the seat assembly on the mower frame and fasten the nuts and with a torque of 18–25
N·m. Then, connect the seat sensor harness and put the seat back.

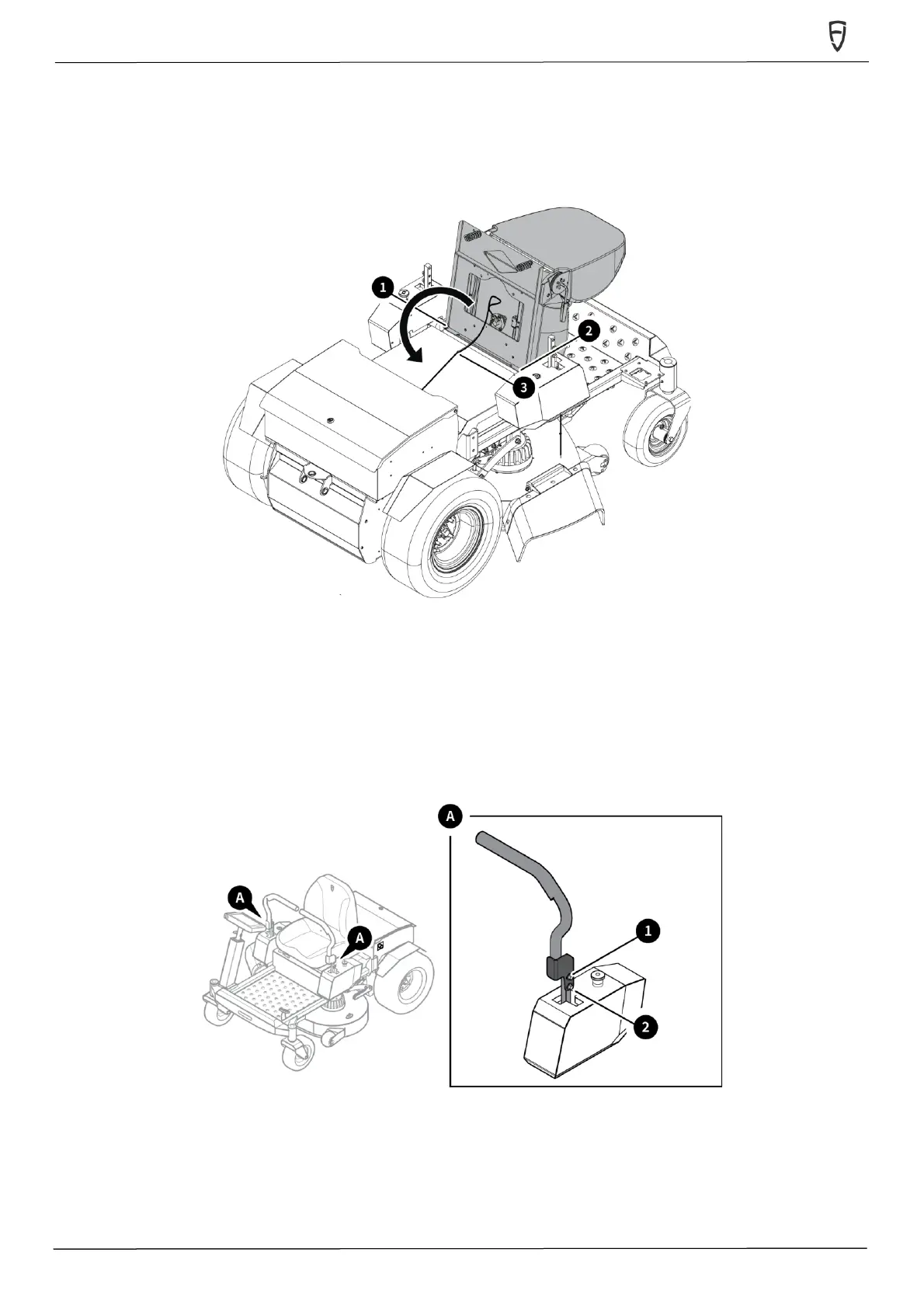

Figure 14. Install the seat
6.4 Installing the Lap Bars
Loosely attach the lap bars to the mounting poles, align the lap bars in the central position, and
then tighten the nuts and with a torque of 35–45 N·m (25.8–33.1 lb-ft).
Figure 15. Install the lap bars
6.5 Installing the Control Terminal
1. Install the pole on the mounting plate, and fasten the four screws with a torque of 9–12
