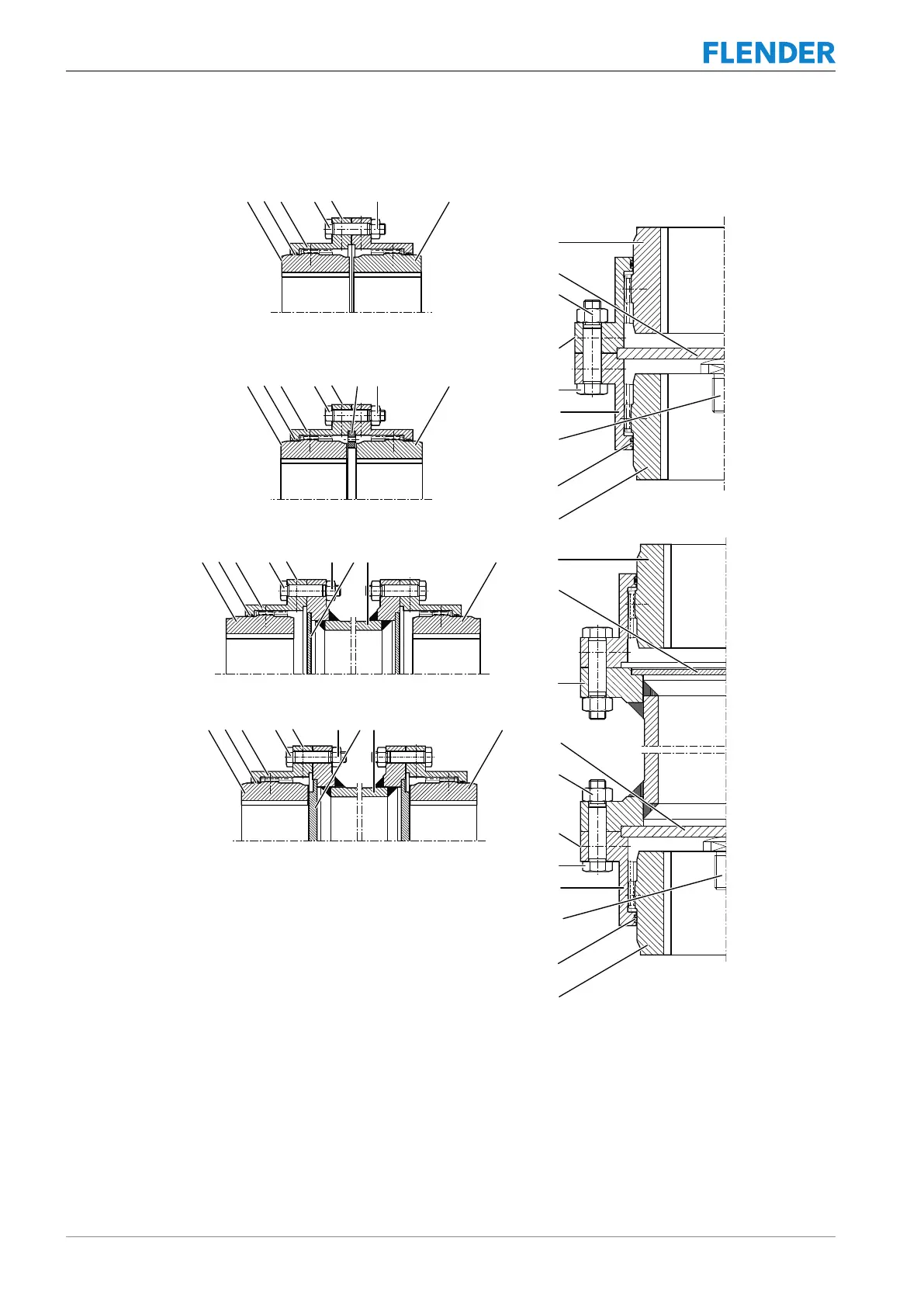

The diagrams show the various types with their constituent parts and their part numbers.
=1=6
=1=9
=11
=119
=1=$
=11$




















Figure3-1:ZNN, ZNNA, ZNZS, ZNZA, ZNNV and ZNZV types
1 Coupling part 1/2 2 Coupling part 1/2
4 Spacer 5 Flanged sleeve
6 Screw plug 7 Sealing ring in size 83
8 Fitting bolt 9 Hexagon nut
12 O-rings 20 Plate pulley
22 Screw plug 33 Support ring
34 Thrust element 51 Retaining ring

Table of Contents
