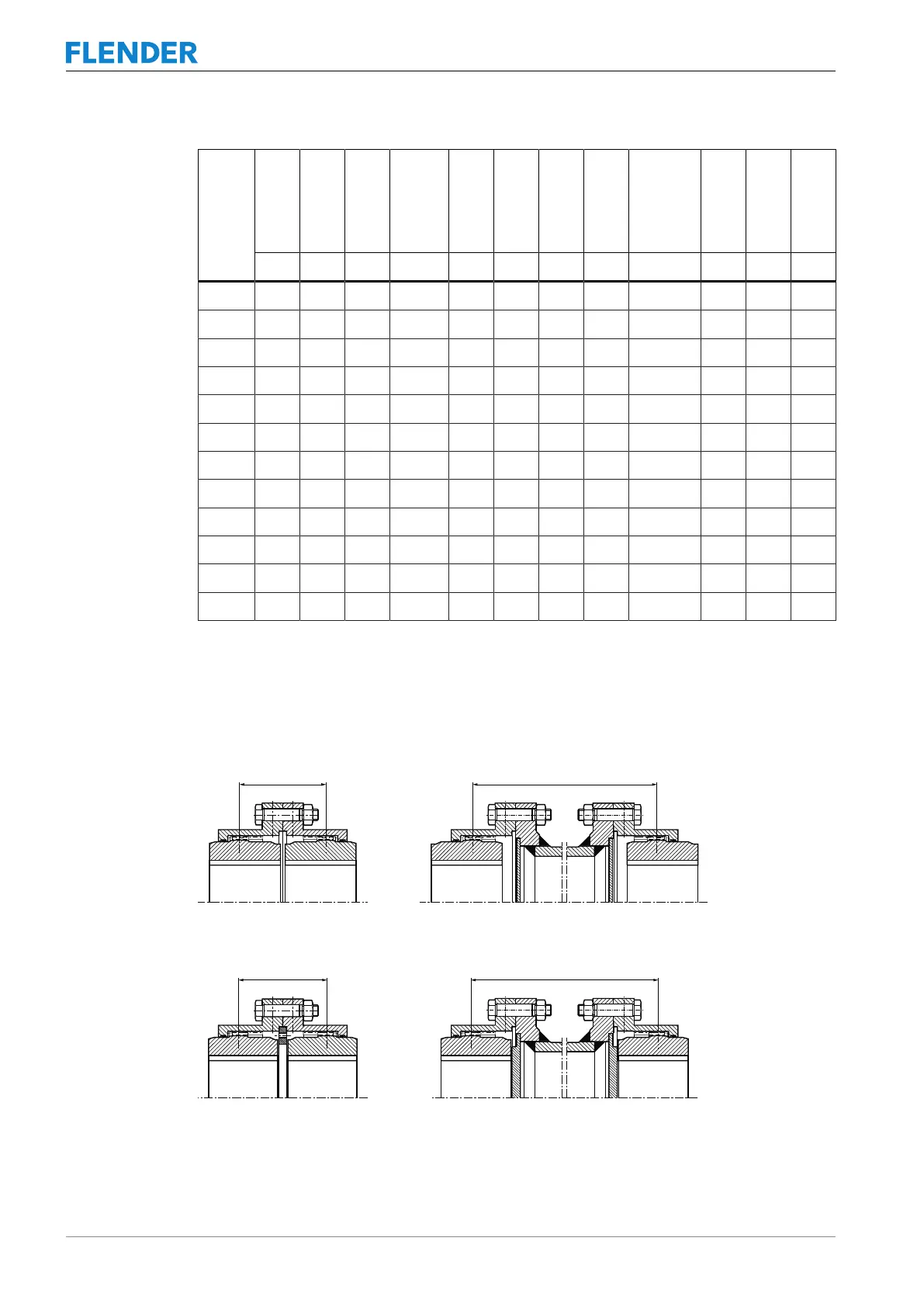

FLENDER ZAPEX - A.3 Alignment Values

Technical specifications
Distances between teeth VA and recommended alignment values for angular and radial misalignment
M3560-02en Edition 09/2022 67
Size S1 S2 S3 perm
Devi-
ation
S1, S2,
S3
S8 S9 S11 S12 perm De-
viation
S8, S9,
S11, S12
S13 S16 S17
mm mm mm mm mm mm mm mm mm mm mm mm
83 3 12 21 +1 10.5 1.5 8 21 +0.5 10.5 5 2.5
107 3 9 15 +1 7.5 1.5 4.5 15 +0.5 7.5 6 3
130 3 17 31 +1 15.5 1.5 12.5 31 +0.5 15.5 6 3
156 5 17 29 +1 14.5 2.5 10.5 29 +0.5 14.5 9 4.5
181 5 19 33 +1 16.5 2.5 12.5 33 +0.5 16.5 9 4.5
211 6 23 40 +1 20 3 15 40 +0.5 20 11 5.5
250 6 24 42 +1 21 3 17 42 +0.5 21 10 5
274 8 29 50 +1.5 25 4 19.5 50 +0.75 25 13 6.5
307 8 32 56 +1.5 28 4 22 56 +0.75 28 14 7
333 8 39 70 +1.5 35 4 29 70 +0.75 35 14 7
364 8 46 84 +1.5 42 4 36 84 +0.75 42 14 7
424 10 43 76 +1.5 38 5 30 76 +0.75 38 18 9
TableA-2: Clearance S
A.3 Distances between teeth VA and recommended alignment
values for angular and radial misalignment Distances between teeth VA and recommended alignment values for angular and radial misalignment
7"7"
7"7"
=1=6=1=9=11=119
=1=$=11$
The following table contains the distances between teeth VA and recommended alignment
values for angular and radial misalignment:
