User’s manual FlexGain Plex, V2
Version 1.3 41 from 99

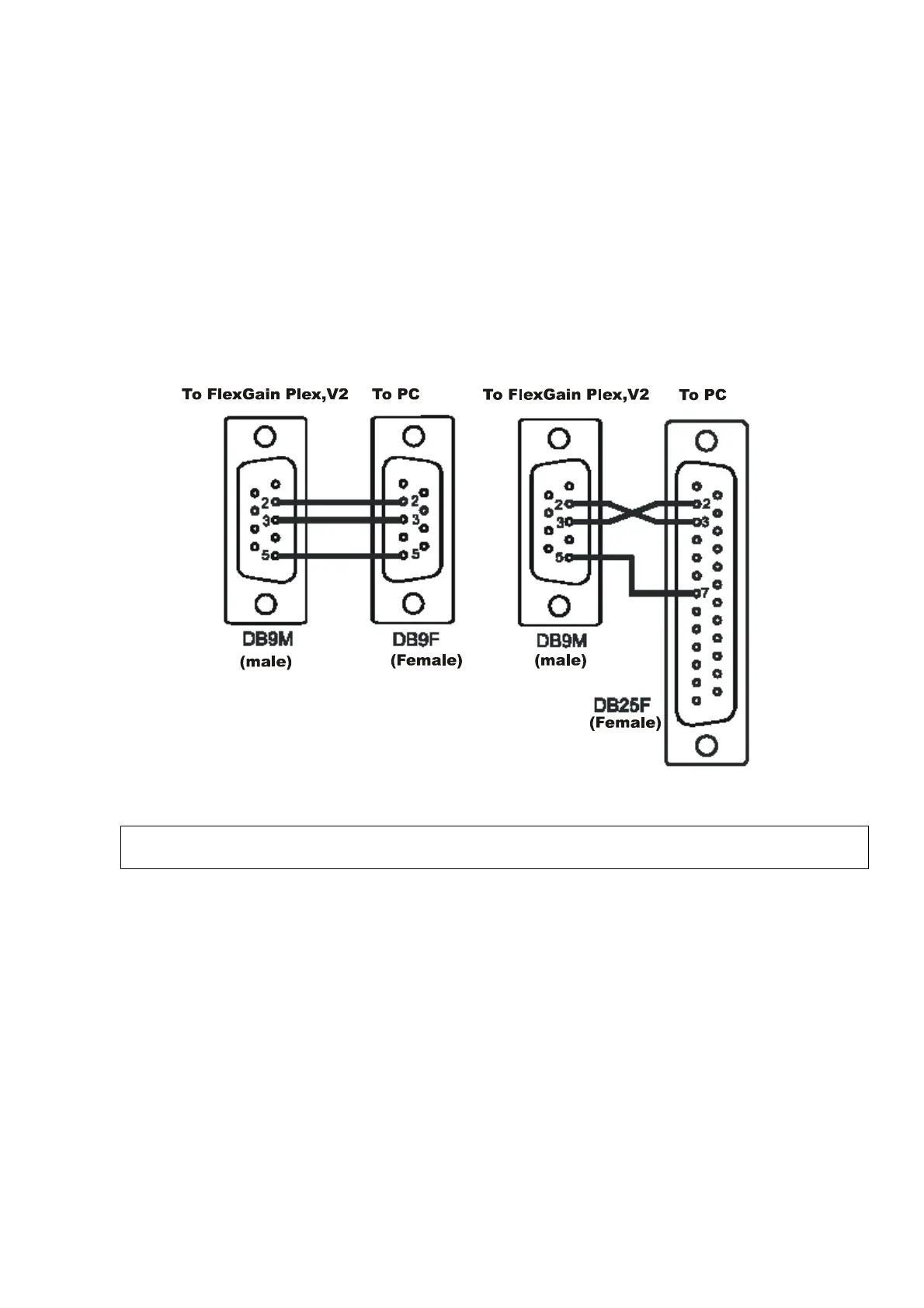

Figure 11. Pin assignment of control cables.
Attention:
The pin assignment of cables is represented from the connection side.
