FLUXUS WW 4 General principles
20 UMFLUXUS_WWV1-1EN, 2018-02-28
4.3.2 Examples

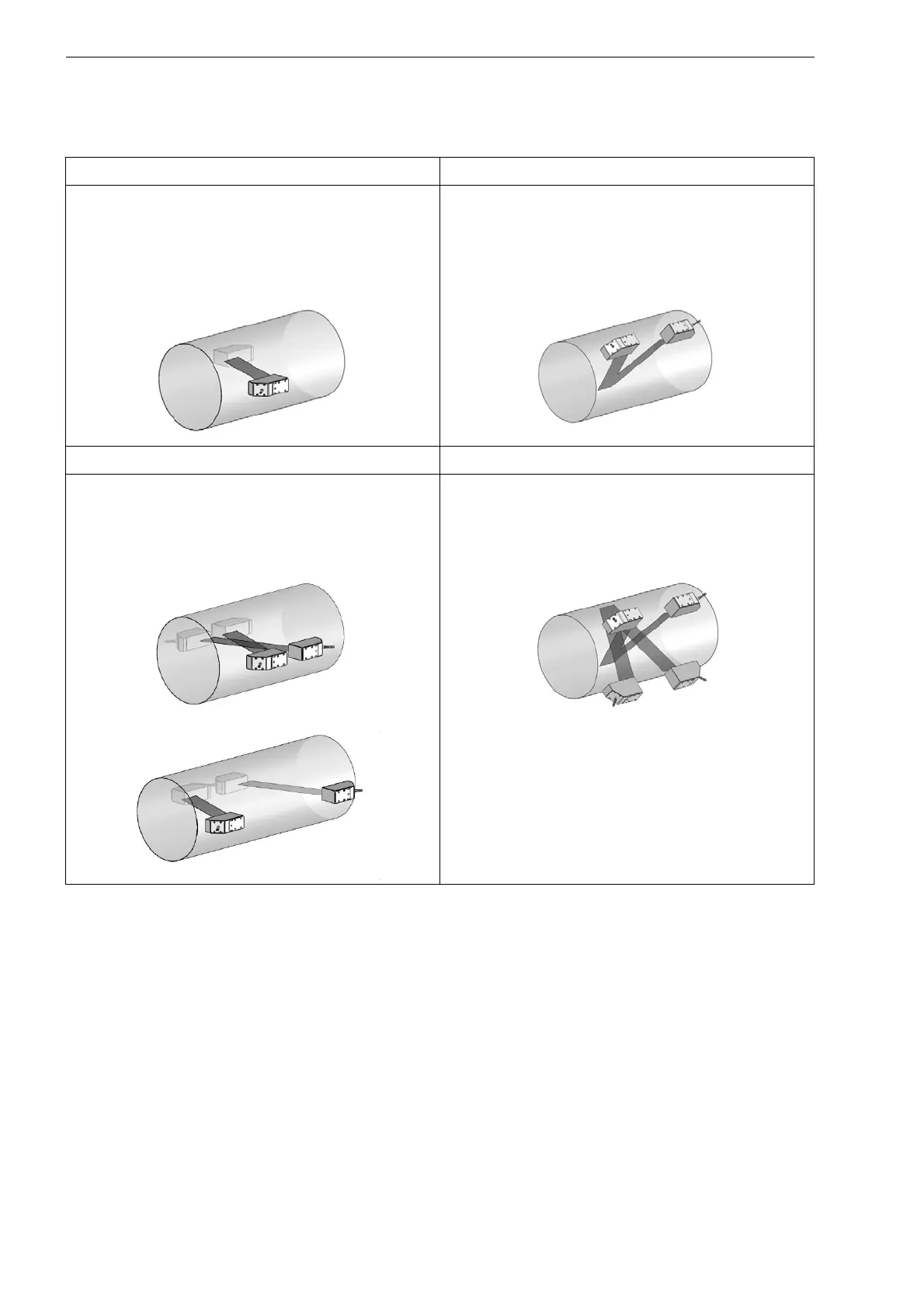

diagonal arrangement with 1 beam reflection arrangement with 1 beam
1 transducer pair
1 sound path
1 beam
1 plane
1 transducer pair
2 sound paths
1 beam
1 plane
diagonal arrangement with 2 beam reflection arrangement with 2 beams and 2 planes
2 transducer pairs
2 sound paths
2 beams
1 plane
2 transducer pairs
4 sound paths
2 beams
2 planes
X arrangement
displaced
X arrangement
