5 Description of the transmitter FLUXUS WW
UMFLUXUS_WWV1-1EN, 2018-02-28 21
5 Description of the transmitter
5.1 Transmitter design
The command panel can be accessed by opening the front plate.
5.2 Keyboard
The keyboard consists of the 3 function keys ENTER, BRK and C and 10 numerical keys.
Several keys have double functions. They can be used to enter data or to navigate through scroll lists.
The arrow-shaped numerical keys , , and are used as cursor keys in the selection mode and for enter-
ing digits and letters in the input mode.
Attention! The degree of protection of the transmitter is only ensured if the cable glands are firmly tightened and the
housing is tightly screwed.

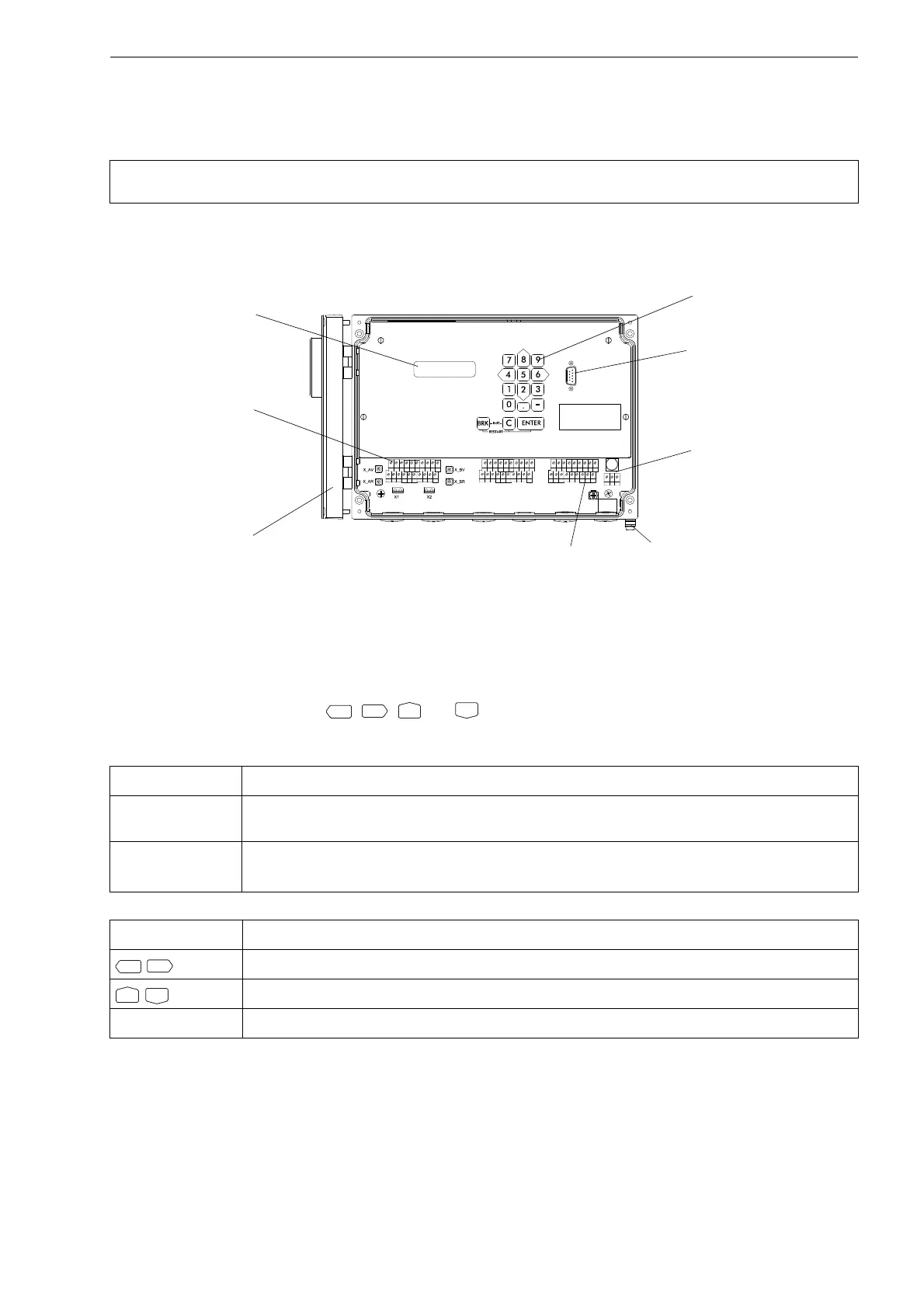

Fig. 5.1: Command panel of FLUXUS WW
Tab. 5.1: General functions
ENTER confirmation of selection or input
BRK + C + ENTER RESET: Press these 3 keys simultaneously to correct a malfunction. The reset has the same effect
as a restart of the transmitter. Stored data are not affected.
BRK interruption of the measurement and selection of the main menu
Be careful not to stop a current measurement by inadvertently pressing key BRK!
Tab. 5.2: Navigation
BRK selection of the main menu
scroll to the left/right through a scroll list
scroll upwards/downwards through a scroll list
ENTER confirmation of the selected menu item
AVSAV
AGN
ARS
AR
BVSBV
BGN
BRS
BR
SA1
SA2
SA3
SA4
SB1
SB2
SB3
SB4
T1a
T1b
S2 T2a
T3a
T3b
S4
T4a
T2b
T4b
T1A
T1B
S1 T2A
T3A
T3B
S3
T4A
T2B
T4B
A+
B-
P1+ P2+
P4+
P5a
P6a P7a
P3+
101
103
P1- P2-
P4-
P5b
P6b
P7b
P3-
PE
N(-)
L(+)
2x 16-digit LCD display,
backlit
serial interface RS232
transducers
outputs
power supply
keyboard
cover plate
equipotential bonding terminal
(FLUXUS F704**-A2)
