7.3.3.1 Disassembly of Variofix L
• Disassemble the transducer mounting fixture Variofix L (see Fig. 7.9).
7.3.3.2 Fixing the clasps to the tension straps
Select the installation instructions that correspond to the supplied clasp:
Band clamp clasp
The clasp is fixed to the tension strap (see Fig. 7.10).
Quick release clasp
The clasp is fixed to the tension strap (see Fig. 7.11).
• Cut the tension straps to length (pipe circumference + at least 120 mm).
Tab. 7.1: Approximate values for the mounting of a Variofix L
transducer frequency
(third character of the technical type)
length of the rail
[mm]
length of the transducer
[mm]
Q 176 < 69
M, P 234 < 84 (Lamb wave transducers)
< 100 (shear wave transducers)
G, H, K (all but ****LI*) 348 < 89
F, G, H, K (only ****LI*) 368 < 94

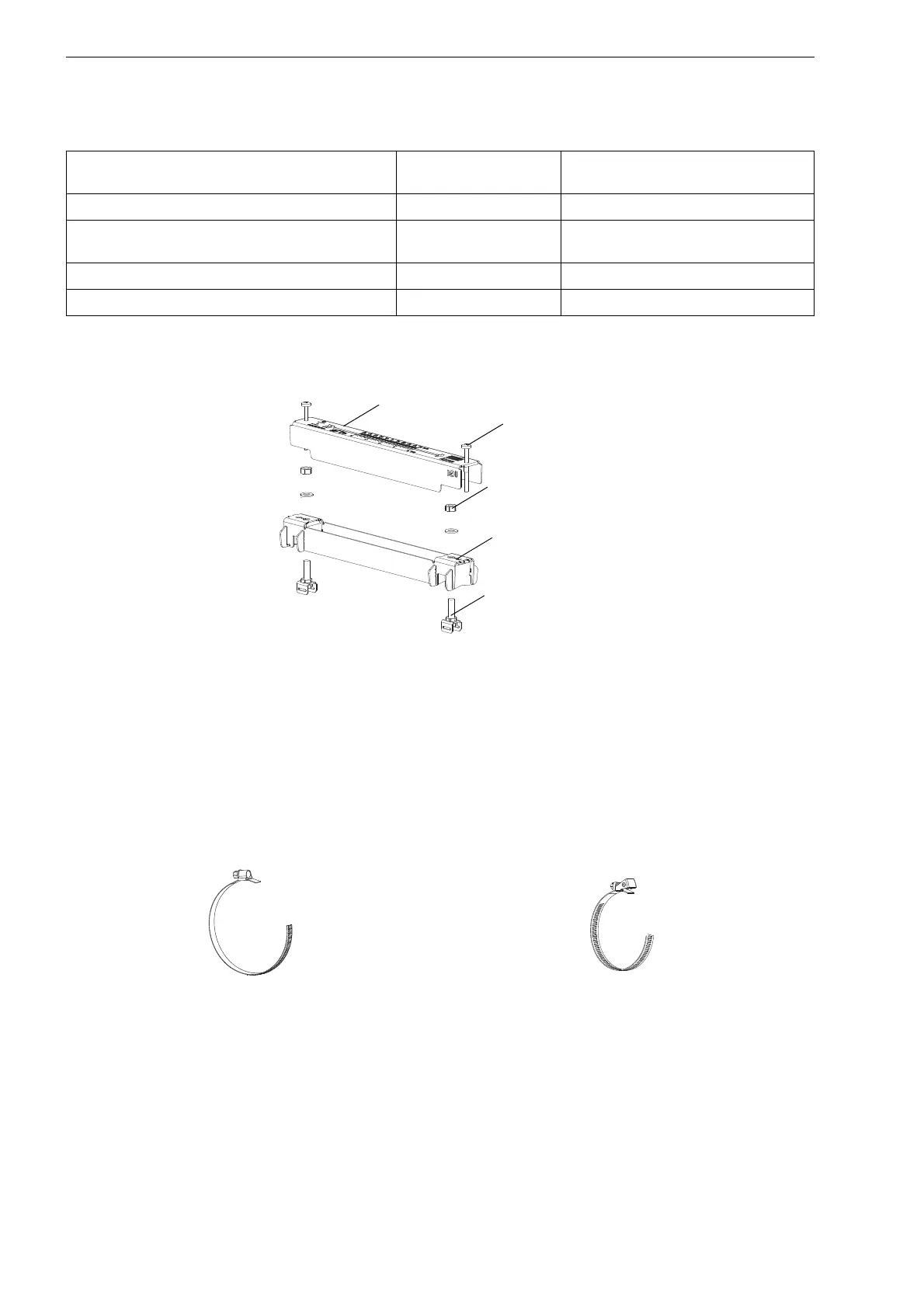

Fig. 7.9: Disassembly of Variofix L
Fig. 7.10: Band clamp clasp with tension strap Fig. 7.11: Quick release clasp with tension strap
cover
rail
tension strap clamp
nut
screw
