7 Installation FLUXUS WW
UMFLUXUS_WWV1-1EN, 2018-02-28 45
• Repeat the steps for the second tension strap.
• Put the rail on the tension strap clamps (see Fig. 7.45).
• Fix the rail to the tension strap clamps with the screws.
• Tighten the screws.

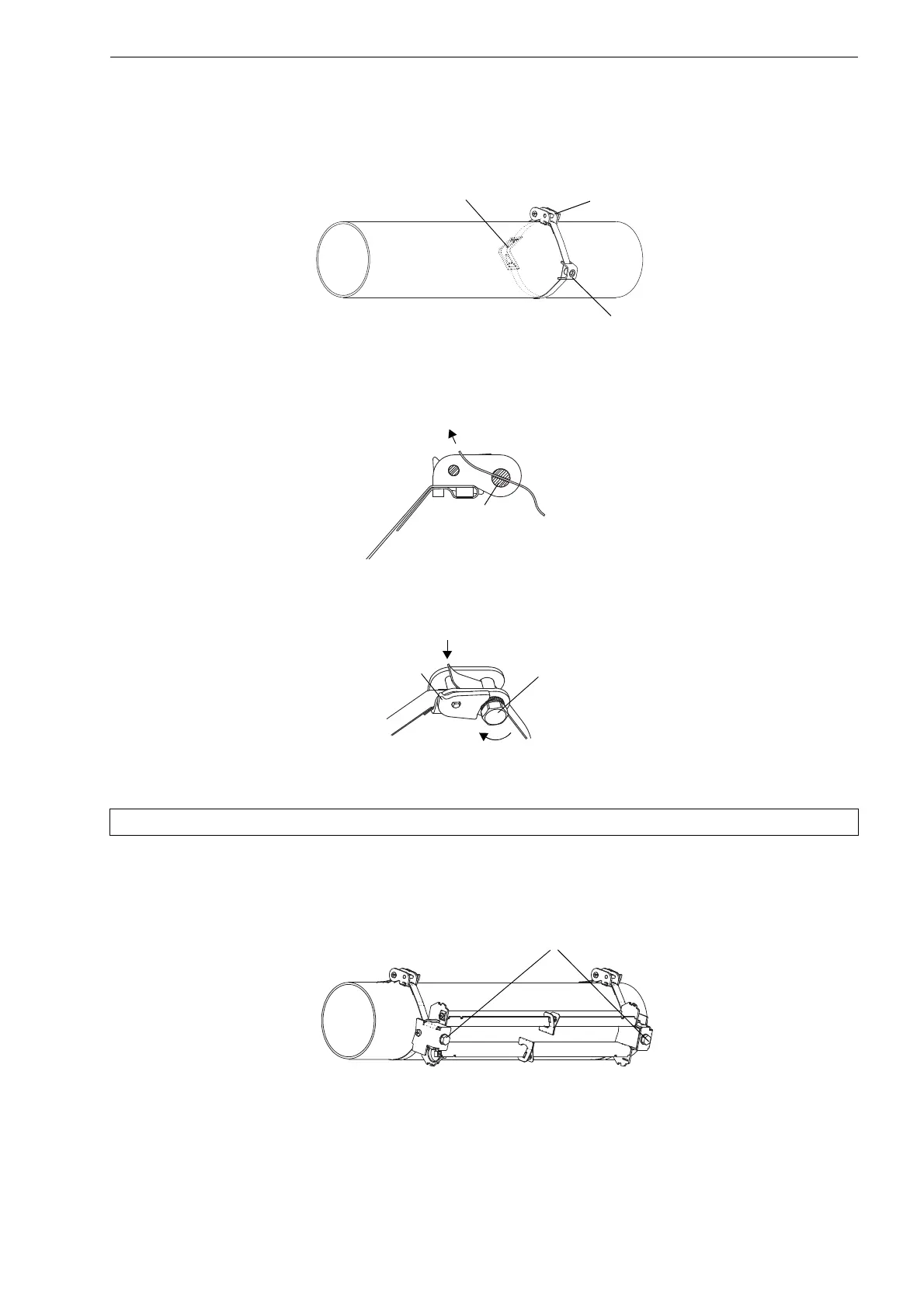

Fig. 7.42: Tension strap with metal spring, the ratchet clasp and tension strap clamp on the pipe
Fig. 7.43: Ratchet clasp with tension strap
Fig. 7.44: Ratchet clasp with tension strap
Note! To release the screw and the tension strap, press the lever down (see Fig. 7.44).
Fig. 7.45: Rail on the pipe
tension strap clamp
metal spring
ratchet clasp
3
lever
sense of rotation
cut
screw of
the clasp
screws
