7 Installation FLUXUS WW
UMFLUXUS_WWV1-1EN, 2018-02-28 47
The cover can be removed from the mounted transducer mounting fixture Variofix C as follows:
• Use a lever tool to remove the cover.
• Insert the lever tool in one of the 4 openings of the cover (see Fig. 7.49).
• Press the lever tool against the fixture.
• Bend the cover outwards and release it from the anchoring.
• Repeat the steps for the other 3 openings.
• Remove the cover from the rail.

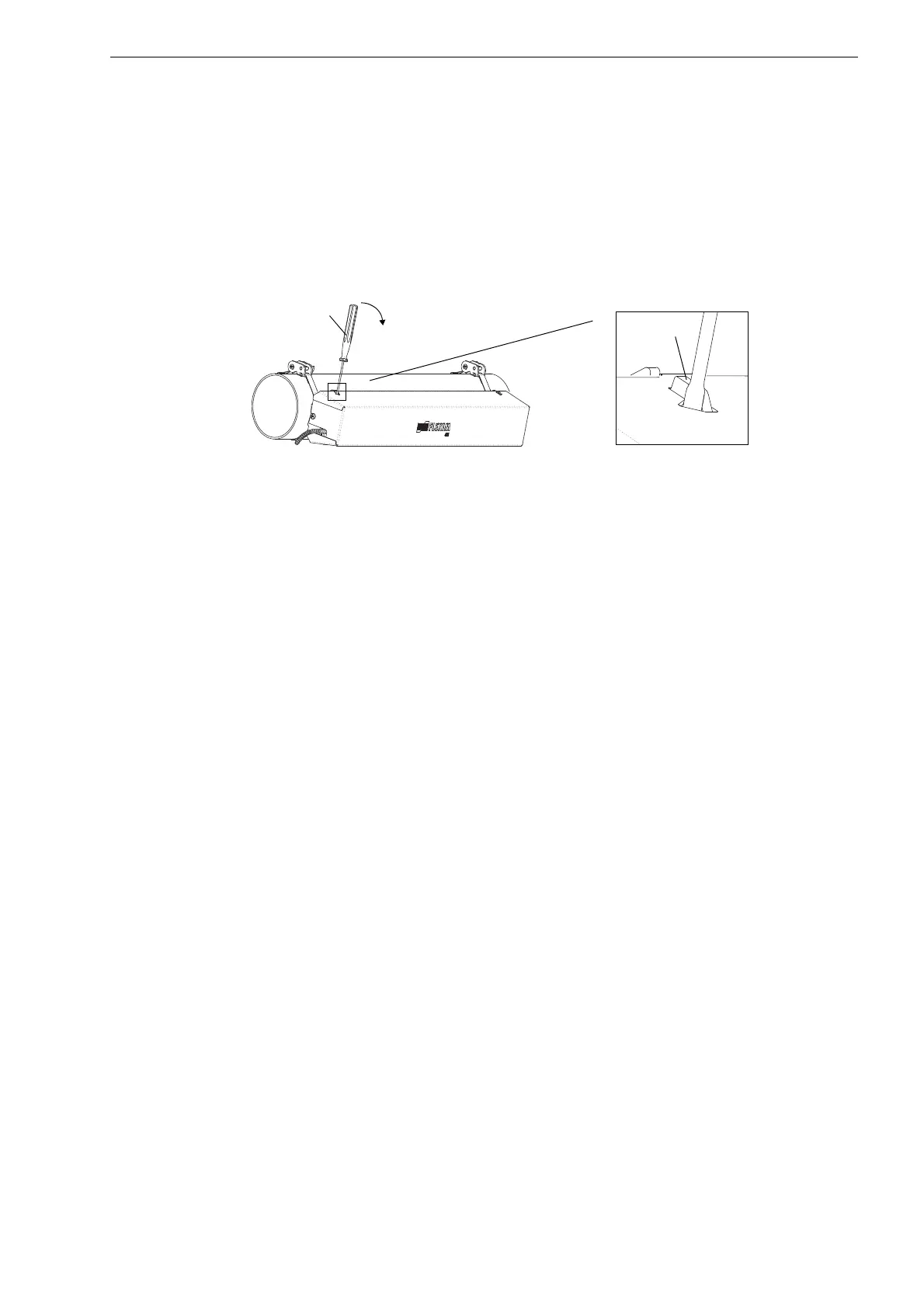

Fig. 7.49: Removal of the cover
