4 Product description
4.1 Handling concept PIOX R721
2021-09-01, UMPIOX_F72xV1-3EN
16
After connecting the transmitter to the power supply and starting up the transmitter for the first time, the following settings
according to language, time, date and units of measurement are to be made. Afterwards the menu Parameters will be
displayed.
At later start-ups the measured values will be displayed in case the measurement had not been stopped before the
transmitter was disconnected from the power supply. If the measurement is stopped, the menu Parameters will be
displayed.
After starting the measurement, the parameter settings or the configuration of the transmitter outputs can be displayed at
any time without interrupting the measurement. A change of the parameter settings is not possible during the
measurement. The measurement has to be stopped in order to change the parameter settings or configuration of the
transmitter outputs.

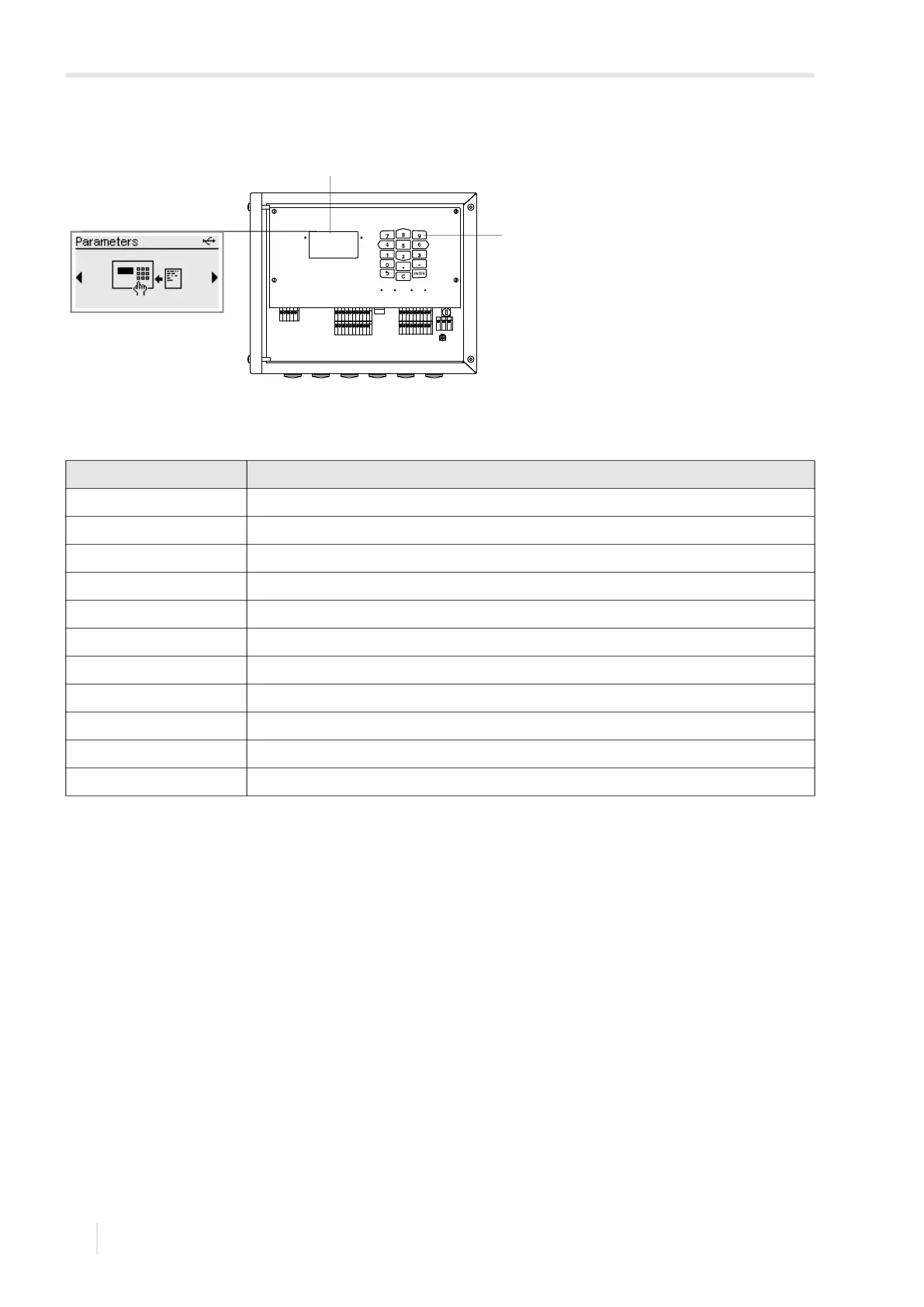

Fig. 4.2: Command panel of the transmitter
1 – LCD display (backlit)
2 – keyboard
Tab. 4.1: Description of the menu
menu description
Parameters input of sensor and fluid parameters
Start measurement measurement start
Show measurement display of measured values
Stop measurement measurement stop
Inputs configuration and assignment of inputs
Outputs configuration of outputs
Event trigger configuration of event triggers R1...R4
Data logger configuration of the data logger; deletion of measured value
Calibration input of correction values, which are added to the calculated physical quantities or scale values
Communication configuration of the communication interface (e.g., LAN interface, fieldbuses (option))
Miscellaneous settings of system and measurement and changes in dialogs and menus
A
B
SNAP
DISP
DISP
MODEFAST
MUX
NEXT
Q
ON
Q+Q-
3x Q
OFF
LAN
USB
A+
B-
P1+
P2+
P3+
P4+
P5a
P6a
P7a
S
S
P1-
P2-
P3-
P4-
P5b
P6b
P7b
KL7KL8
KL9KL10
KL4
T1A
T1B
S1
T2A
T2B
T3A
T3B
S3
T4B
T4A
T1a
T1b
S1
T2a
T2b
T3a
T3b
S3
T4b
T4a
N(-)
PE
L(+)
V+
V-
A+
B-
1
2
