4 Product description
The transmitter and sensor are the main components of the process refractometer. Both are interconnected with the
supplied cable.
4.1 Handling concept
The transmitter is operated via the keyboard.
By pressing or the following menus are displayed consecutively:
• Parameters
• Start measurement
(1)
• Show measurement
(2)
• Stop measurement
(2)
• Inputs
• Outputs
• Event trigger
• Data logger
• Calibration
• Communication
• Miscellaneous
(1)
will only be displayed if no measurement is running
(2)
will only be displayed if a measurement is running
A menu is displayed between 2 arrows .

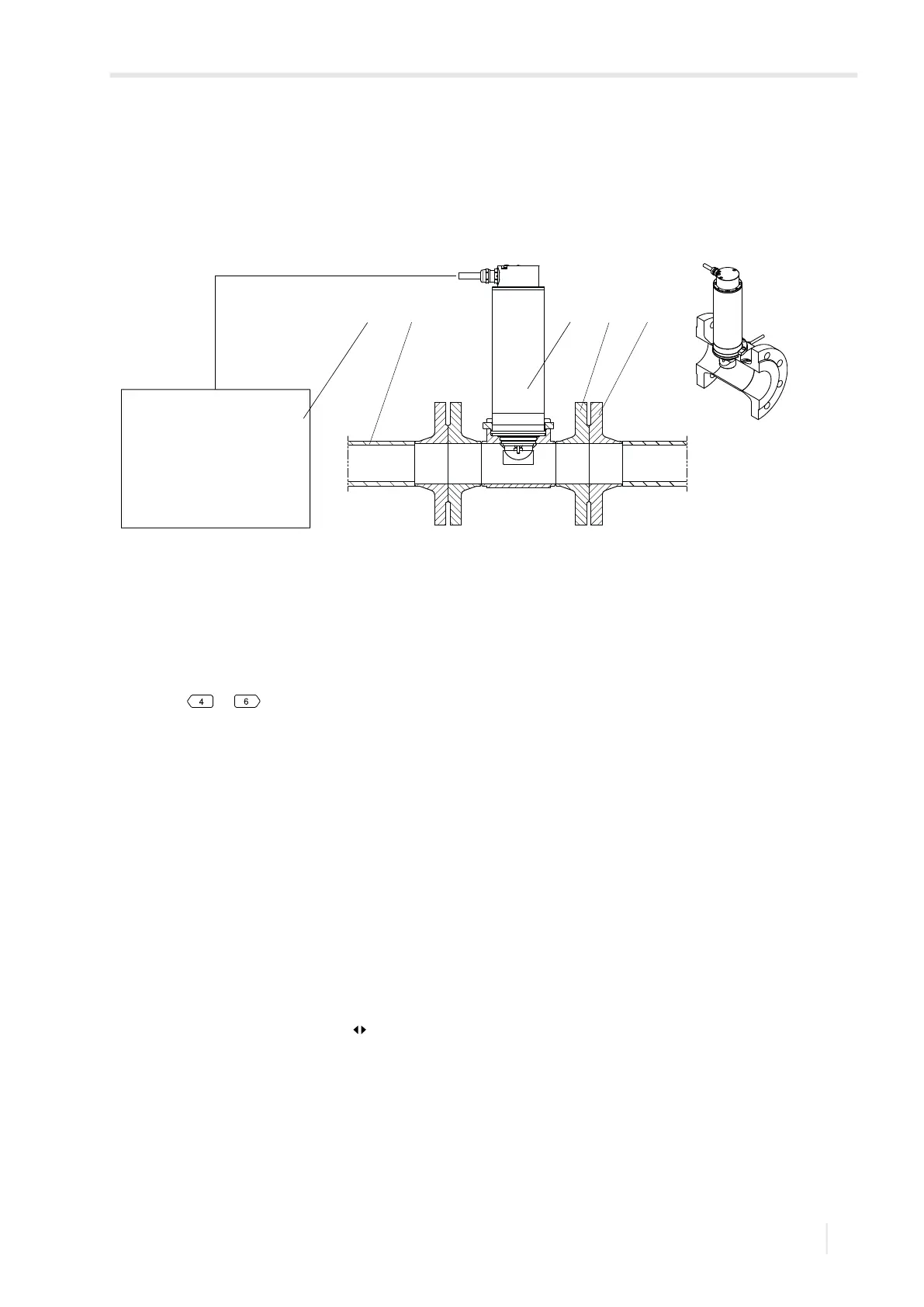

Fig. 4.1: Measuring setup
1 – sensor
2 – transmitter
3 – process connection (example)
4 – pipe
5 – connection (customer side)
1
3
542
