8 Start-up
8.3 Status indications PIOX R721
2021-09-01, UMPIOX_F72xV1-3EN
48
8.3 Status indications
The operation state is indicated by LEDs.
8.4 Language
The language of the transmitter can be selected:
• Select the menu item Language.
• Press ENTER.
• Select the desired language from the scroll list.
• Press ENTER.
Afterwards the main menu will be displayed in the selected language. The selected language remains activated when the
transmitter is switched off and on again.
The language can also be changed by entering a HotCode.

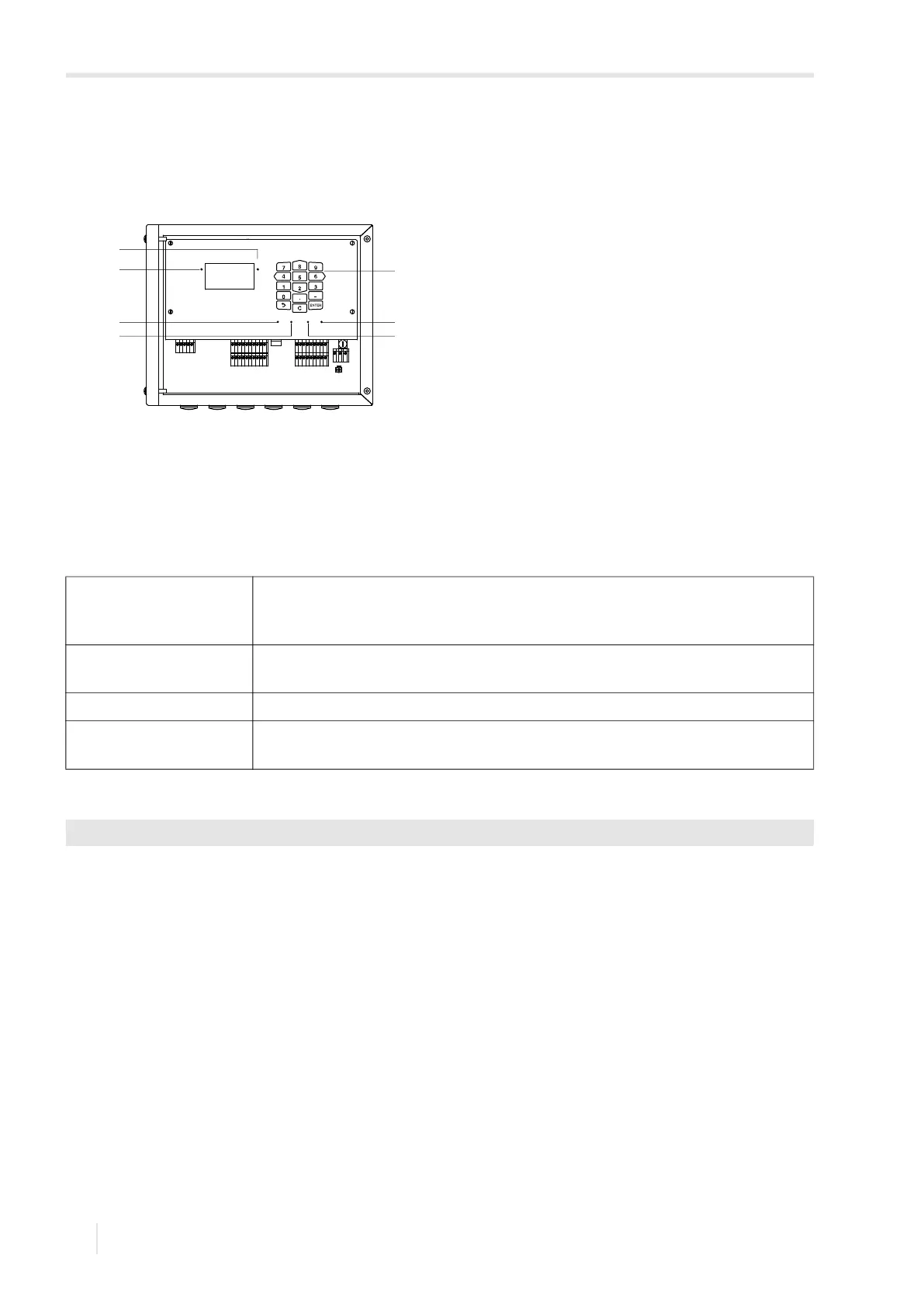

Fig. 8.1: Command panel of the transmitter
1 – LED sensor
2 – LED sensor (not used)
3 – keyboard
4 – LED of LAN activity
5 – LED of LAN mode
6 – LED of USB device
7 – LED of USB host (not used)
Tab. 8.1: Operation state of the transmitter
LED sensor lights, when the transmitter is in measuring mode
red – invalid measurement
green – valid measurement
LED of LAN activity lights, when the transmitter is connected to a network via a LAN cable
flashes in case of a data exchange via the network connection
LED of LAN mode lights when the data rate is 100 Mbit/s; otherwise it is 10 Mbit/s
LED of USB device lights when the transmitter is connected to a PC via a USB cable
flashes in case of a data exchange between the PC and the transmitter
Miscellaneous\System settings\Language
A
B
SNAP
DISP
DISP
MODEFAST
MUX
NEXT
Q
ON
Q+Q-
3x Q
OFF
LAN
USB
A+
B-
P1+
P2+
P3+
P4+
P5a
P6a
P7a
S
S
P1-
P2-
P3-
P4-
P5b
P6b
P7b
KL7KL8
KL9KL10
KL4
T1A
T1B
S1
T2A
T2B
T3A
T3B
S3
T4B
T4A
T1a
T1b
S1
T2a
T2b
T3a
T3b
S3
T4b
T4a
N(-)
PE
L(+)
V+
V-
A+
B-
2
1
3
4
5
6
7
