4.2 Display
Structure
Status indications
Several symbols are used for the status indications.

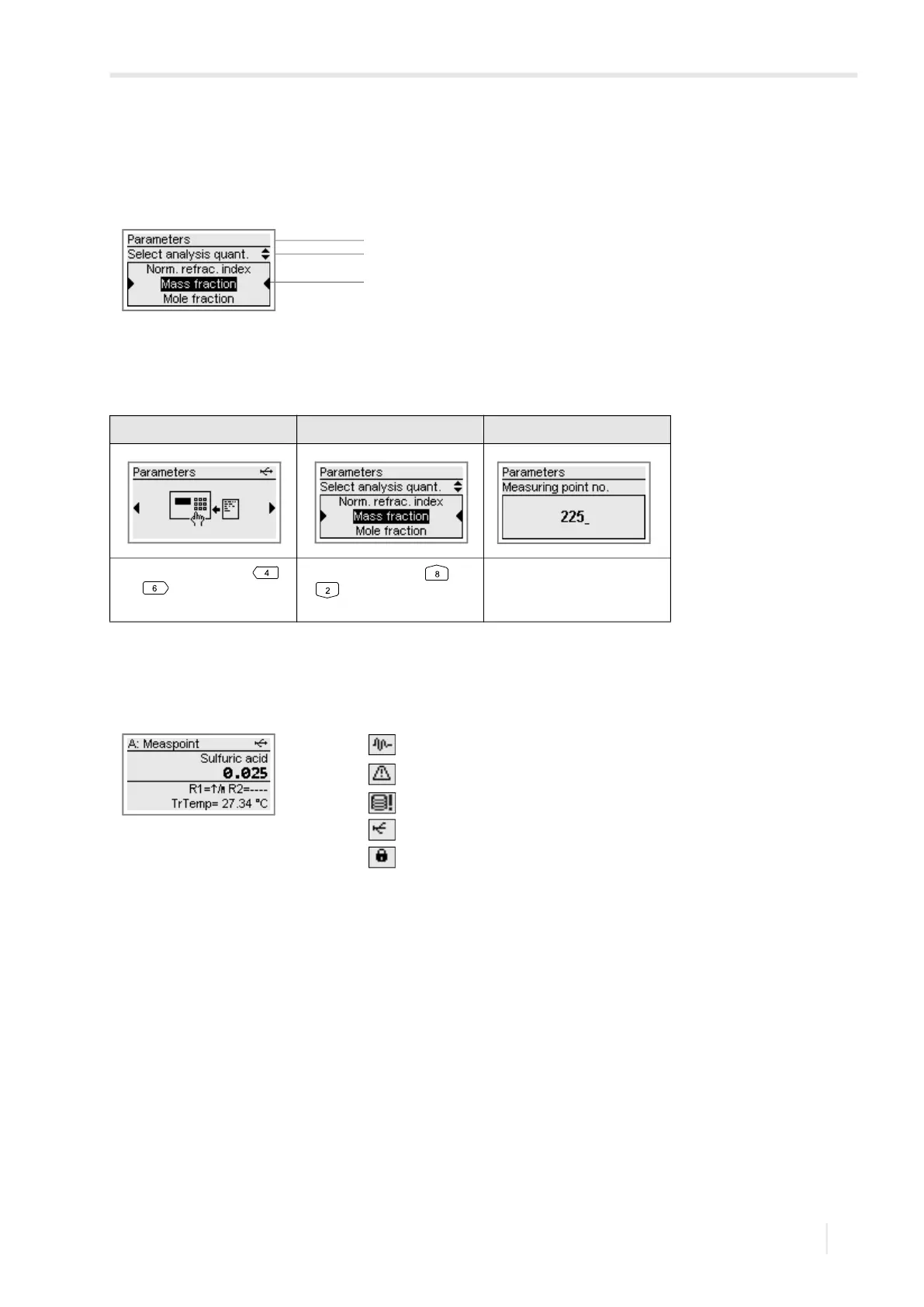

Fig. 4.3: Menu item of the menu Parameters
1 – menu
2 – menu item currently edited
3 – area for scroll lists or input fields
Tab. 4.2: Navigation
horizontal scroll list vertical scroll list input fields
• scroll horizontally with
or
• scroll vertically with or • input via the 10 numerical
keys of the keyboard, see
• delete with C
Fig. 4.4: Status indications (line 1)
1
2
3
error message
running measurement
data logger full
key lock activated
connection via USB cable
