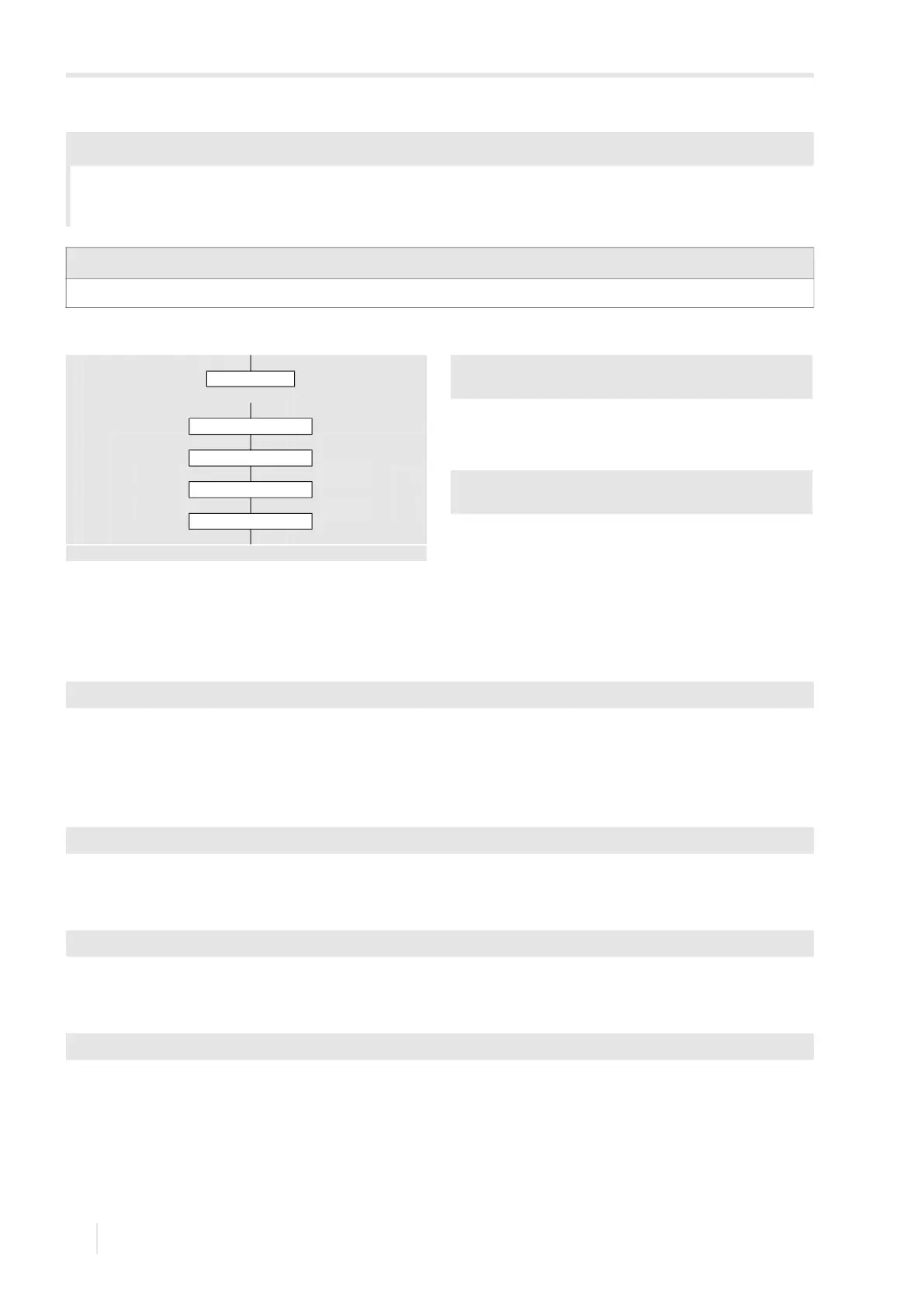

15 Data logger
15.1 Configuration of the data logger PIOX R721
2021-09-01, UMPIOX_F72xV1-3EN
80
Event-based starting time
If it is necessary to start the storing of measured values at
a particular event, select Event-based as starting time.
The event is signalized via an input or event trigger. All
configured inputs and event triggers are displayed in the
scroll list.
For the configuration of the inputs or even triggers, see the menu item Inputs\Configure inputs or menu Event
trigger.
• Select the input or the event trigger through which the event is to be signalized.
• Press ENTER.
The storage rate indicates the interval how often the measured values are transmitted or stored.
• Select in the scroll list a storage rate for storing the measured values in case the event does not occur.
• Select Off if no measured values are to be stored, as long as the event does not occur.
• Press ENTER.
• Select in the scroll list a storage rate for storing the measured values in case the event occurs.
• Press ENTER.
• Enter the time interval for the measured values to be stored before reaching the event (switching condition is met).
• Press ENTER.
• Enter the time interval for the measured values to be stored if the event is no longer active (switching condition is no
longer met).
• Press ENTER.
Example
actual time: 09:06 am
setting: Full 10 minutes
The storing starts at 09:10 am.
Notice!
Make sure that the date and time settings of all transmitters are synchronized.
Start storing
→ Event-based
Storage rate w/o trig.
Storage rate (trig.)
Buffer time →П
Buffer time П→
see annex A
Data logger\Configuration
\Start storing\
Event-based
Data logger\Configuration
\Start storing\
Event-based\Rx
Data logger\
Configuration\Start storing\Event-based\Storage rate w/o trig.
Data logger\Configuration
\Start storing\Event-based\Storage rate (trig.)
Data logger\Configuration
\Start storing\Event-based\Buffer time ->П
Data logger\Configuration
\Start storing\Event-based\Buffer time П->
