FLEX-6000 Signature Series – Maestro User Guide
Page 93
Copyright 2019 FlexRadio Systems. All Rights Reserved.
22.5 USING TWO TRANSCEIVE ANTENNAS ON THE FLEX-6700

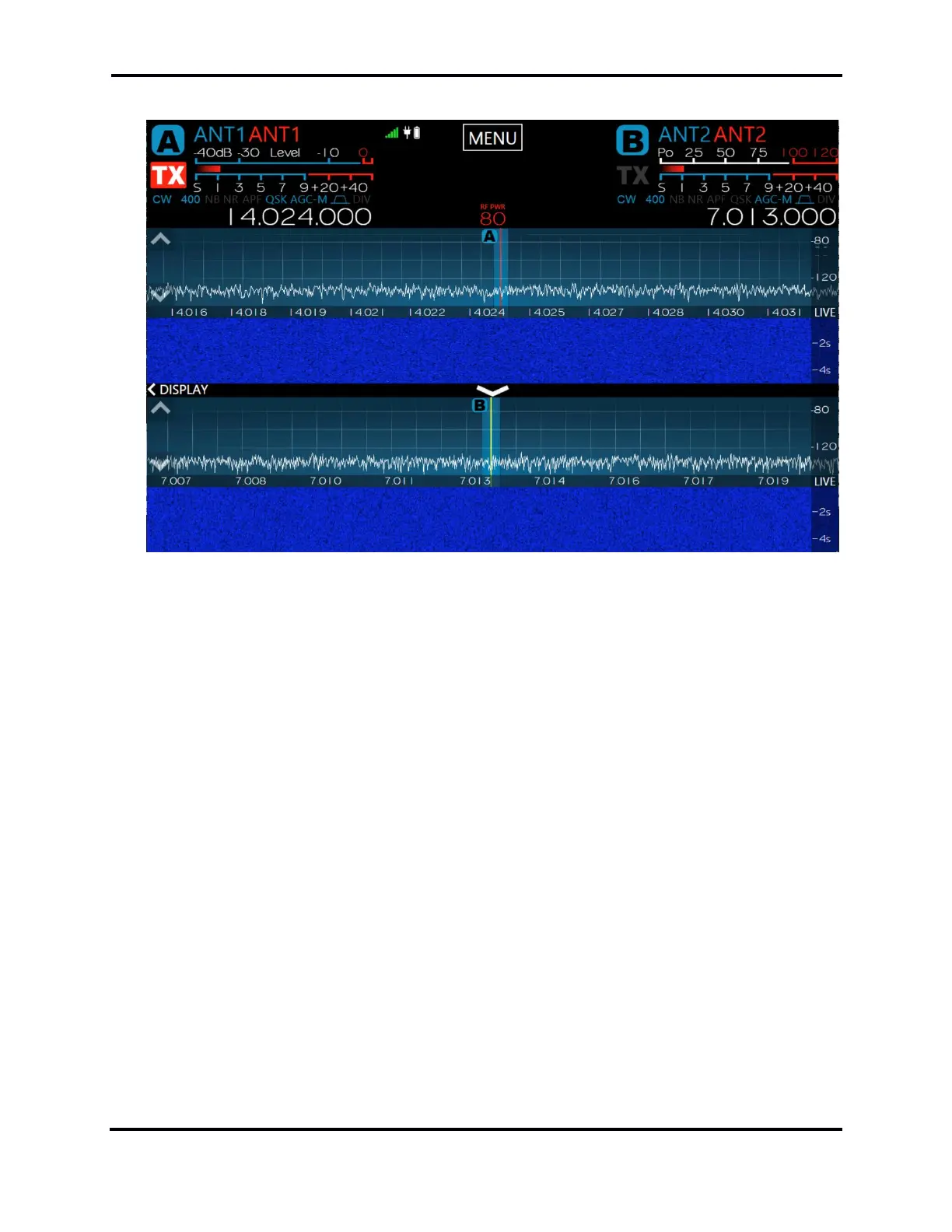

In the image above, Slice A is set to receive and transmit on ANT1. Slice B is set to receive and
transmit on ANT2. Slice B is selected as the active transmit frequency of 7.033 MHz on ANT2 as
indicated by the red TX button. To move the transmit frequency to 14.225 MHz on ANT1, simply tap
the TX button on Slice A, or press the TX A button.
