FLEX-6000 Signature Series – Maestro User Guide
Page 46
Copyright 2019 FlexRadio Systems. All Rights Reserved.

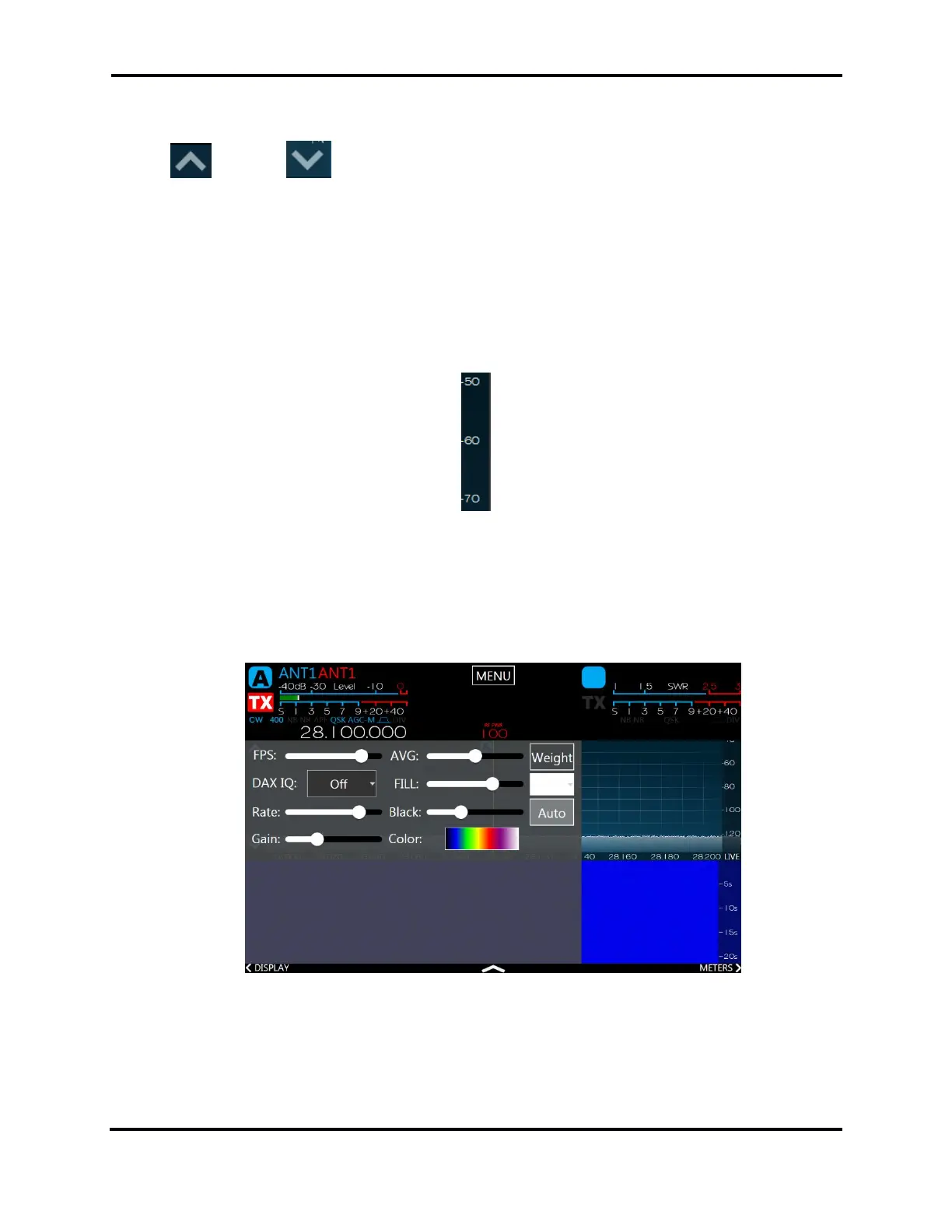

10.5 HOW TO CHANGE THE SIGNAL MAGNITUDE SCALE OF A PANADAPTER
The maximum and minimum amplitude displayed in each Panadapter may be adjusted. Tapping the
up or down arrows displayed along the left edge of the Panadapter increases or
decreases, respectively, in 10 dB increments, the maximum amplitude displayed. You may also adjust
the minimum amplitude by touching and dragging the vertical axis on the right side of the
panadapter. This will effectively adjust where the noise floor is positioned within the Panadapter.
The radio remembers these settings by band so that future switches to the band will restore these
settings.
The vertical scale is calibrated in dBm, showing the signal strength as measured at the antenna
terminal.
10.6 ADJUSTING THE PANADAPTER AND WATERFALL CONTROLS
Touching the Display control at the bottom of the first Panadapter opens the display controls. When
one Panadapter is active, the upper half of the control panel is populated, and the lower half is blank.
When both Panadapters are active the upper and lower halves of the control panel are populated.
Complete details about the use of this screen are found in section 32.3.4, Panadapter Display Menu.
