22 HOW TO CONFIGURE ANTENNAS
22.1 GETTING STARTED
When Maestro starts, it loads a single Panadapter and Slice Receiver with Antenna 1 (ANT1) selected
by default. Transmit and receive operations are then functional on ANT1 with no further setup or
adjustment required.
22.2 SELECTING THE TRANSMIT ANTENNA FOR A SLICE RECEIVER

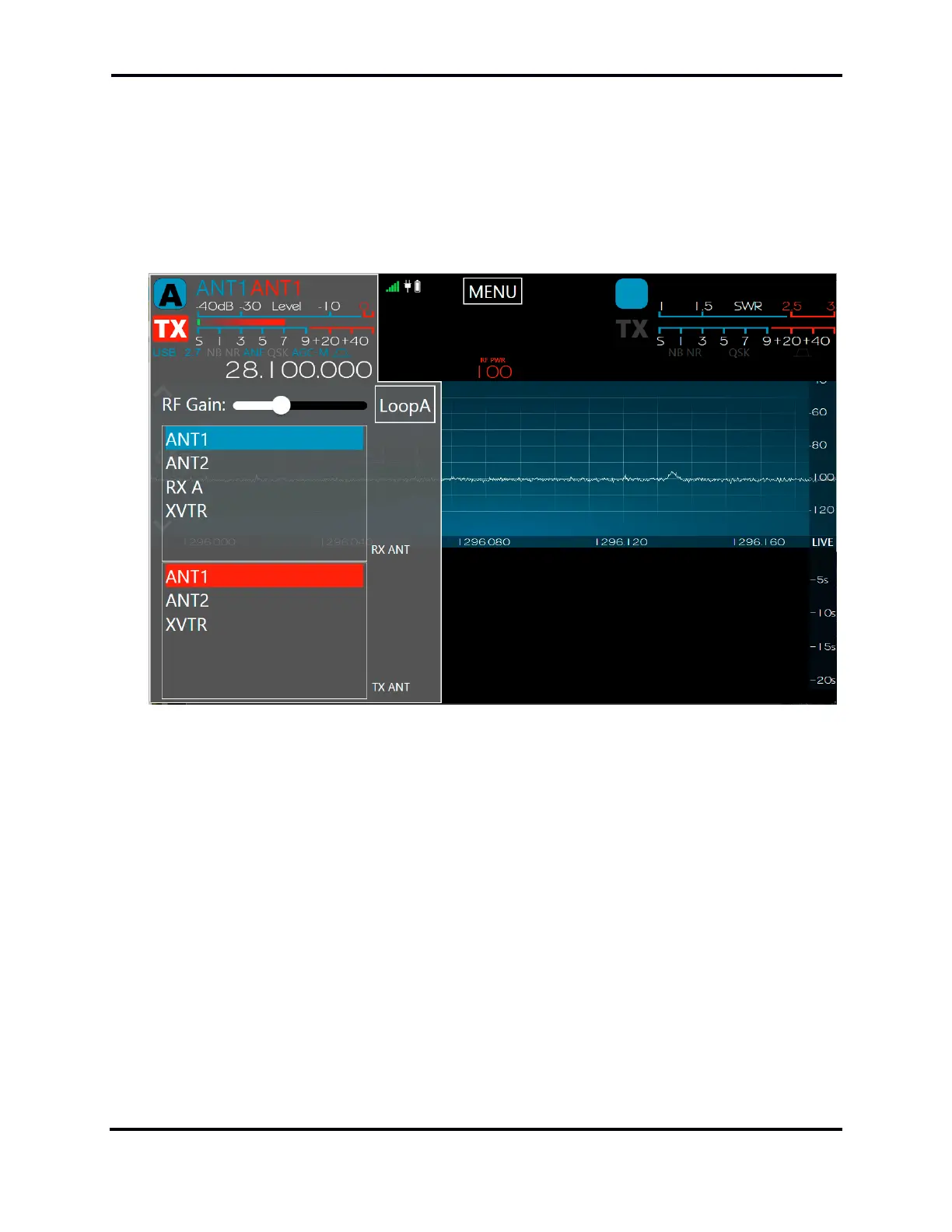

The transmit antenna for each Slice is selected from the Antenna Menu shown on Slice A above. The
transmit antenna selector offers the same ANT1, ANT2, and XVTR options on both the FLEX-6500 and
FLEX-6700 models. Each Slice may have its own designated transmit antenna. Open the menu by
tapping on the antenna indicators in the Slice Flag.
Loop selection is provided in the Slice Receiver Antenna Menu and is indicated next to the receive
antenna selector on each Slice. The example shown above indicates that the RX A loop is active and
connected to ANT1.
22.3 ANTENNA OPTIONS FOR PIN DIODE QSK OPERATION
Full QSK operation with reception between individual CW elements is supported on a single antenna
at speeds up to 30 WPM. QRQ QSK is supported at 100+ WPM when a separate receive antenna is
used on the RX A, RX B or XVTR inputs. The QSK annunciator located just above the frequency display
on each Slice Receiver Flag indicates that QSK is possible in the selected mode. QSK is not supported
with a separate receive antenna if that antenna is connected to ANT1 or ANT2.
