22.6 USING A DEDICATED RECEIVE ANTENNA

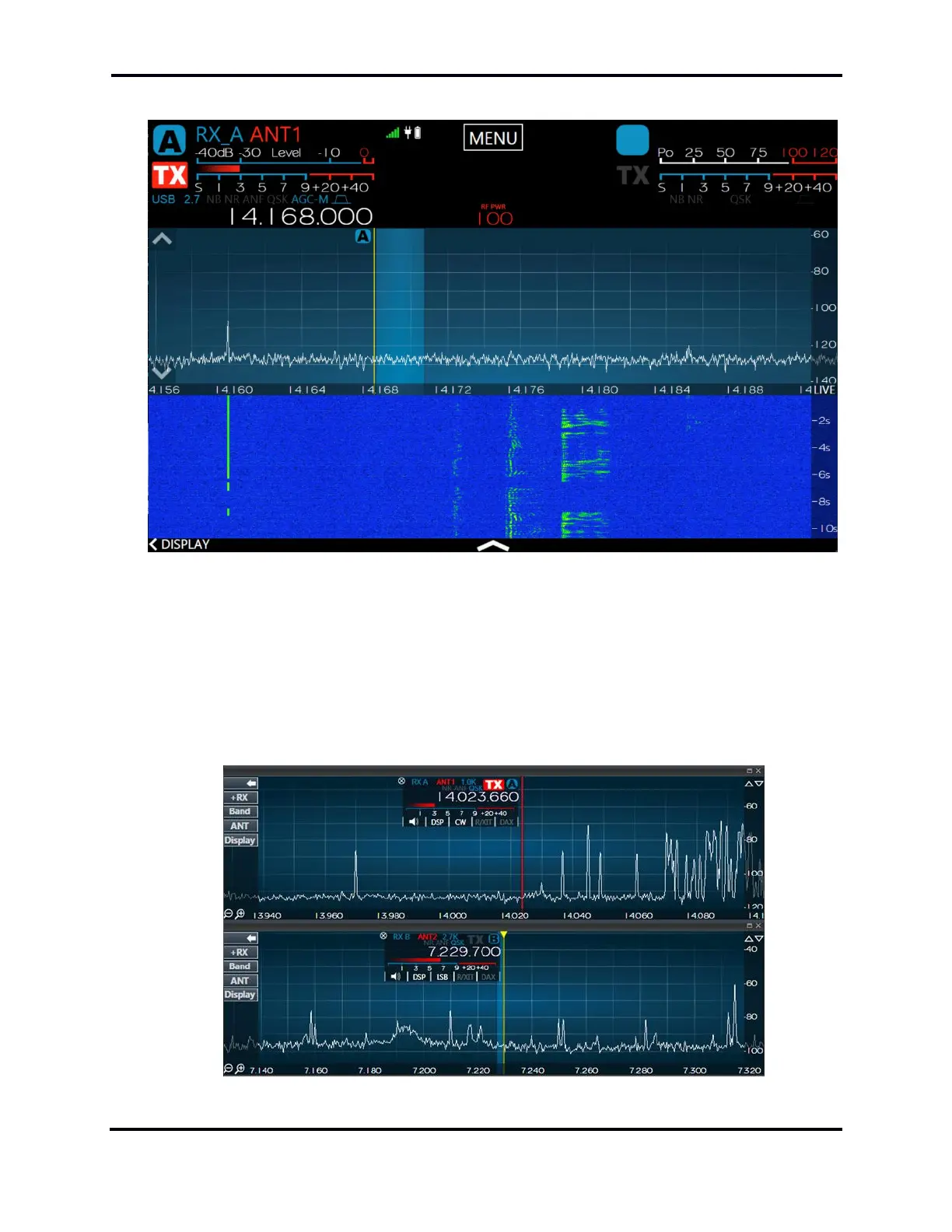

In the image above, Slice A has a dedicated receive antenna on RX A and is transmitting on ANT1.
The FLEX-6700/6700R models have the option of using separate receive antennas on RX A and RX B
respectively. The FLEX-6500 has only the RX A option. The FLEX-6300, FLEX-6500 and FLEX-6700 all
have the option of receiving from the XVTR port. The XVTR port is not recommended as a receive
antenna port if an external preamp is used on its antenna. Transmission on the XVTR port could put
up to +10 dBm of reverse power into the connected preamp.
22.7 RECEIVE-ONLY ANTENNA OPERATION
