Page 20 CWT Compact Touch Installation and Maintenanace Manual Issue 13

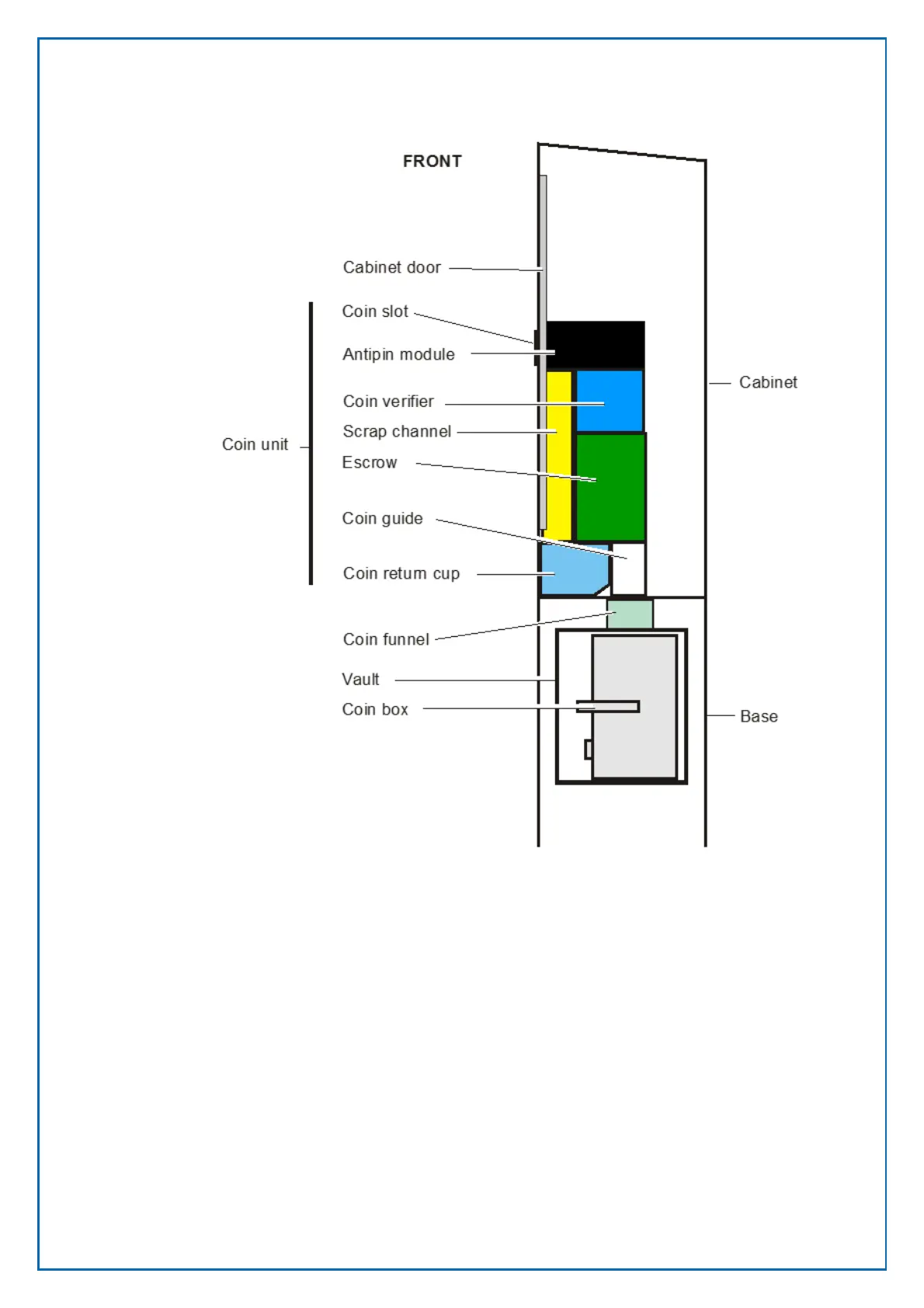

The coin unit is designed as a module that is fitted at the back of the cabinet door
by means of two key holes. The module is secured with two screws that only
need to be loosened slightly when the module is to be removed.
4.1.3.1 Anti-pin module
The function of the anti-pin module is to prevent external manipulation of the coin
system. The figures below illustrate the function principles of the anti-pin module.
The mechanism is seen from above.
The anti-pin module has a pair of metal-detector coils just inside the coin slot
opening. A bit further in there is a barrier plate that usually covers the coin slot.
The barrier plate is pulled into closed position by a tension spring.
