4.8.4 Inside the pedestal
The contents of the pedestal may vary depending on local regulations, needs for
specific electrical components, etc.

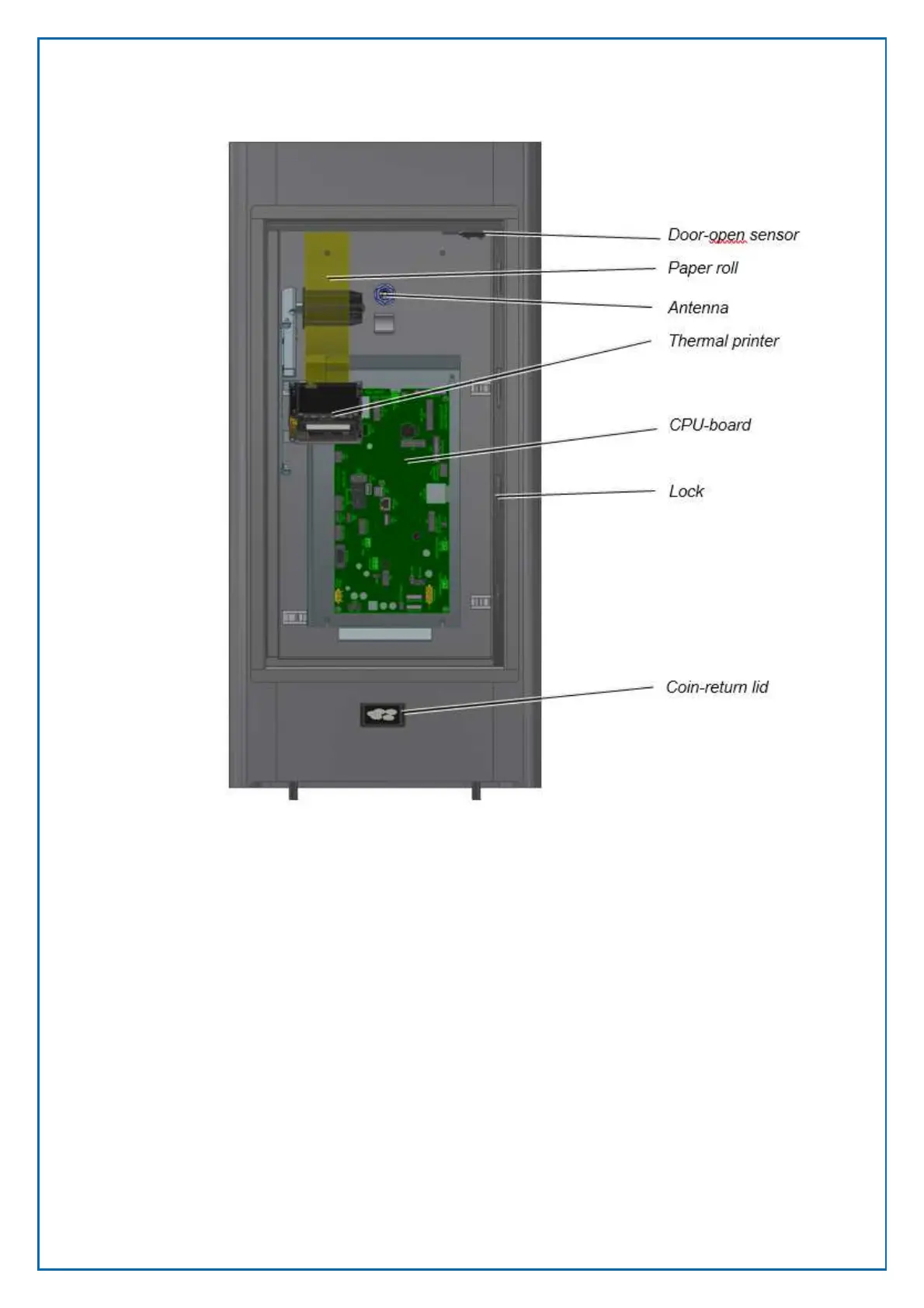

Figure 28, Cabinet interior with CPU board 0501-E0150 and GEBe printer. The printer is mounted on the
version 2 printer shelf
