Page 84 CWT Compact Touch Installation and Maintenanace Manual Issue 13
8.5 Coin verifier replacement
8.5.1
Removal
1. Ensure that there is sufficient free length of the verifier cable. Loosen more of
the cable from the cable clamp if necessary.
2. Keep the locking latch pulled out while you lower the coin verifier a bit and
remove it.
3. Disconnect the cable at the back of the verifier.
Install in reverse order.

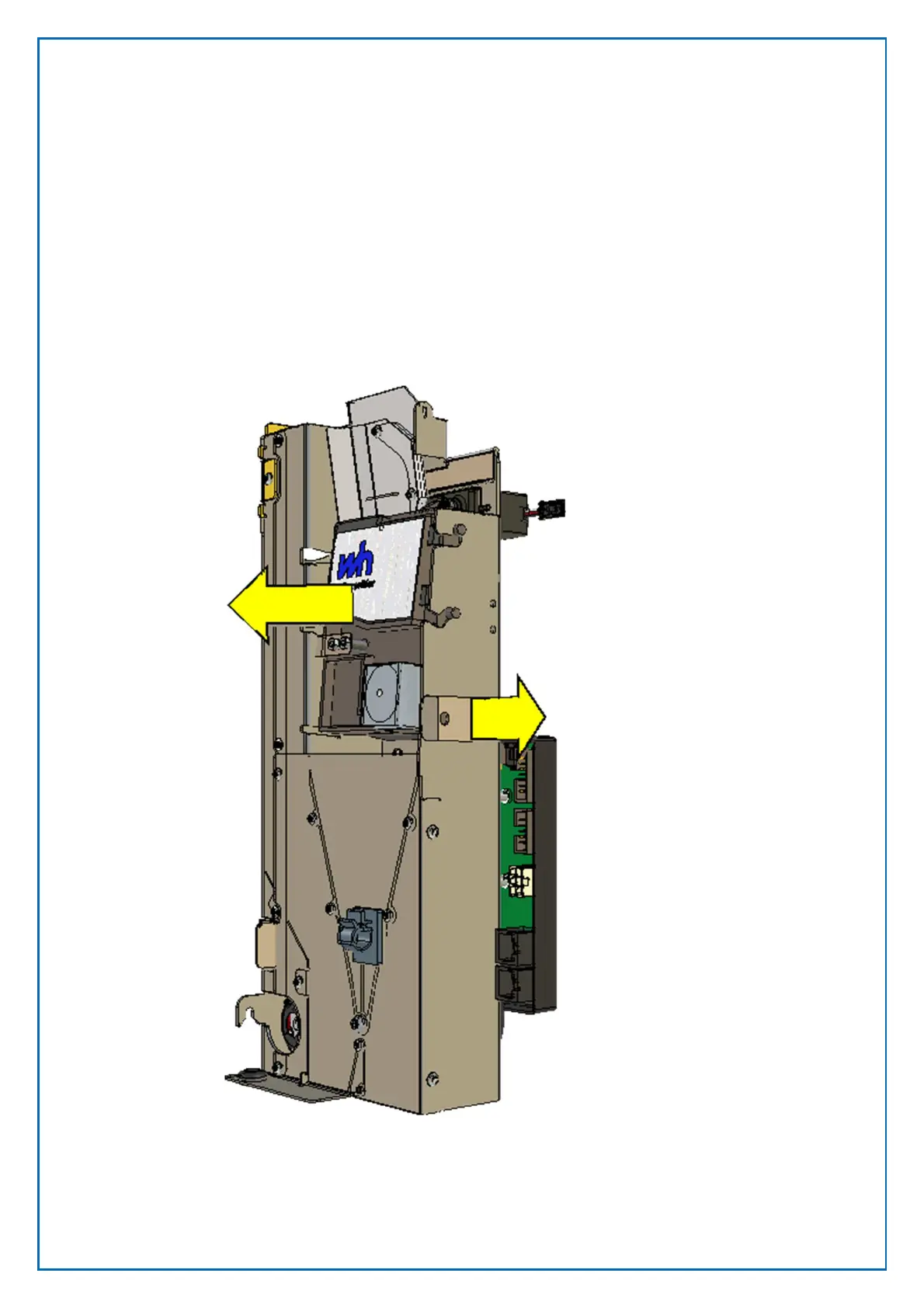

Figure 58, Removing the coin verifier Assembly
