Page 66 CWT Compact Touch Installation and Maintenanace Manual Issue 13
5.2.6 Loading paper in a GeBe printer
Note:
The maximum diameter of the paper role is 200 mm
1. Remove about 0.7 m of the paper from a new roll to ensure there is no glue
residue left.
2. Swivel the printer module by pulling the locking hatch while moving the
module to the right.
3. Orient the roll so the paper leaves the roll from the front and downwards. The
temperature-sensitive layer should face toward the front of the terminal.
4. Put the roll onto the roll hub. Make sure the role clicks in place to prevent it
dropping off during operation
5. Let the terminal boot up in service mode (leaving the upper door open and
bottom door closed).

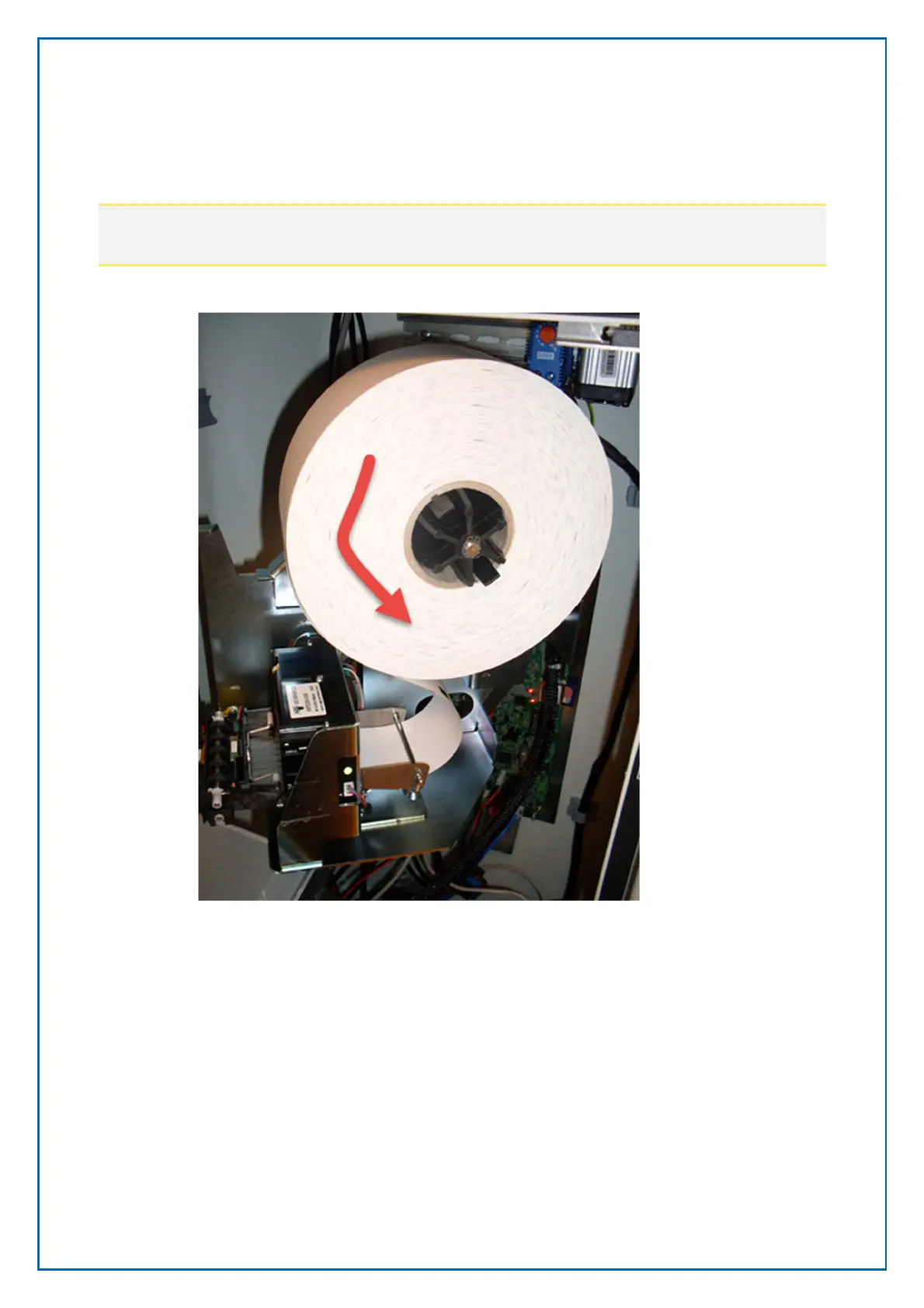

Figure 51, Paper roll mounted on a version 2 printer shelf
