Page 58 CWT Compact Touch Installation and Maintenanace Manual Issue 13
Important:
Terminals for coin payment must be properly aligned vertically because the
function of the anti-pin module and the coin verifier may be interrupted if the
terminal leans more than a couple of degrees in any direction.
5.1.4 Pouring a new concrete foundation
If the installation site does not have an existing concrete base or the equivalent,
you can pour a concrete foundation, casting a base anchor (0403-B0122) into
position. The Cale base anchor is supplied as a flat package containing parts to
be assembled at the installation site.
Important:
Terminals for coin payment must be properly aligned vertically because the
function of the anti-pin module and the coin verifier may be interrupted if the
terminal leans more than a couple of degrees in any direction.

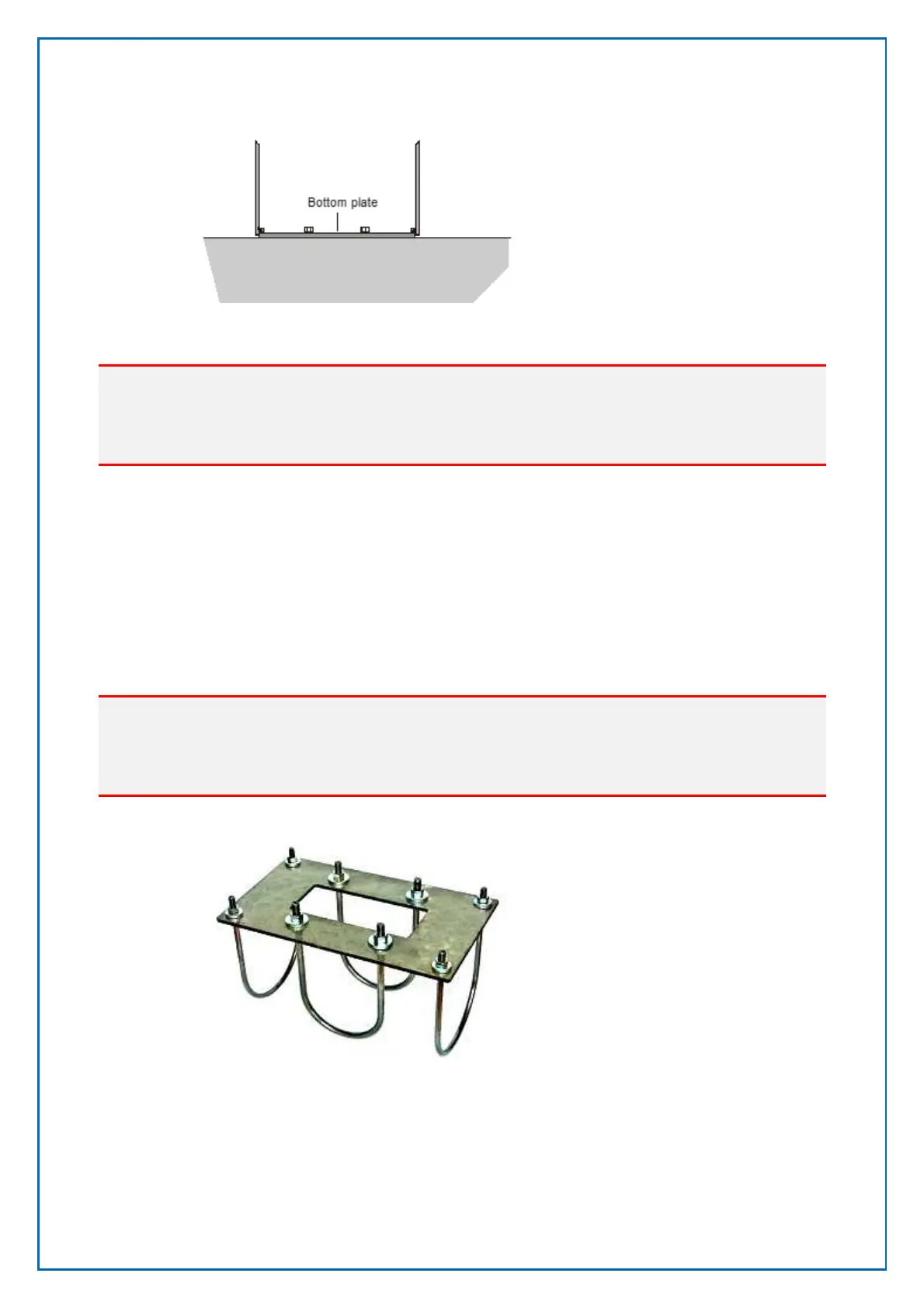

Figure 44, Base anchor 0403-B0122.
Figure 43, Terminal placed directly on the foundation
