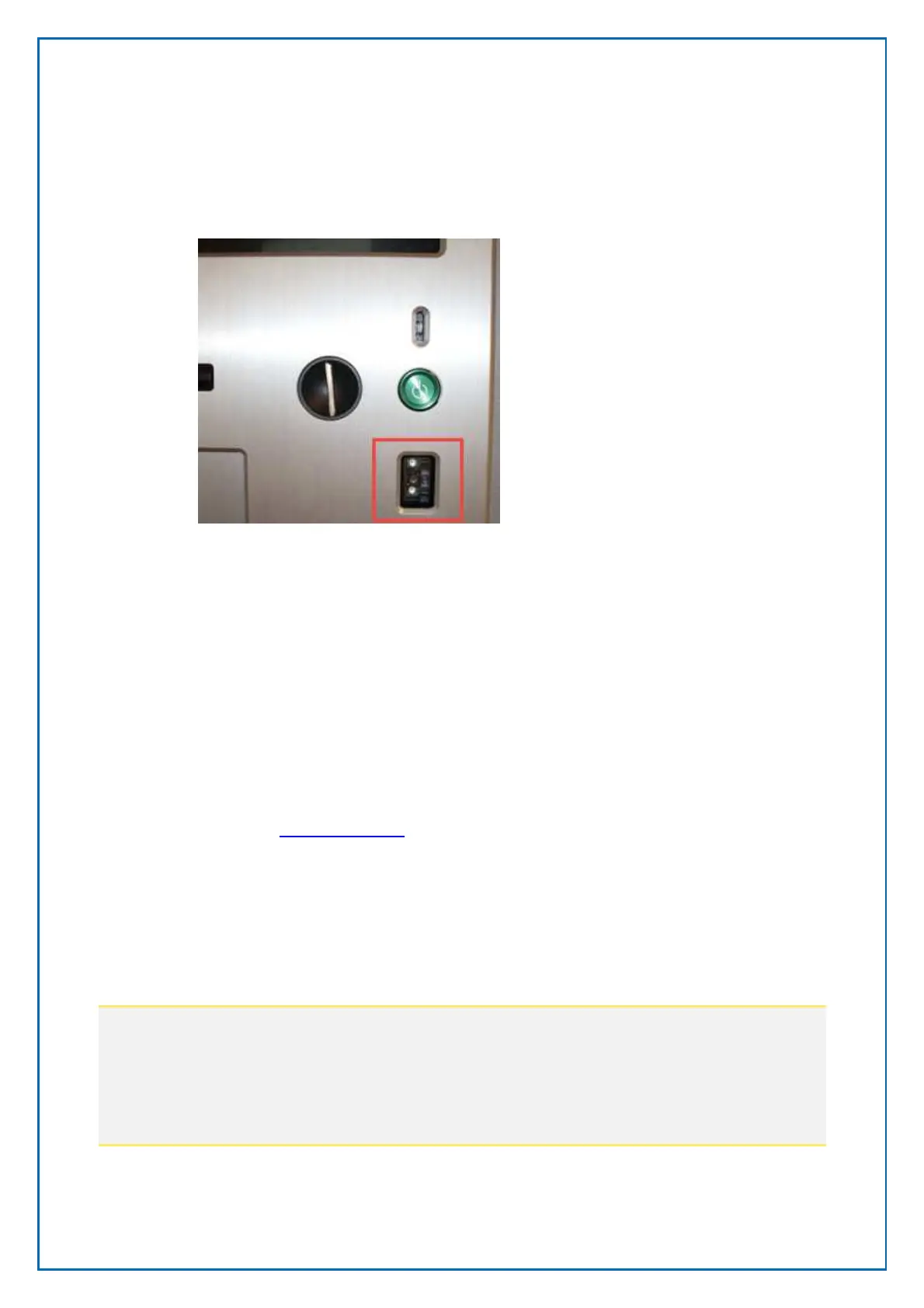

Issue 13 CWT Compact Touch Installation and Maintenanace Manual Page 31
The scanner will be activated via a button in the Code Input panel or personal
Identifier panel. The scanned code will be displayed in the input text box.
4.6 Print system
CWT Compact terminals can be equipped with a thermal printer using direct
thermal printing to generate characters, symbols and graphics.
Both landscape and portrait orientation are supported. The document length is 75
– 100 mm. Paper loading is automatic and full cutting is supported. There is a
translucent sensor for preprinted black marks used for precise positioning of
printing and cutting.
The printer module consisting of the printer and the paper supply roll are
positioned on a vertical main assembly plate that can easily be removed. The
printer module is held in position by means of hinges on the door frame and a
locking hatch. The location of the lock hatch depends on the version of the printer
shelf. See
Printer mounting.
The printer is connected to the CPU board via a serial interface.
The printer firmware can be updated via Cale WebOffice.
4.6.1 GeBe GTP4672 Thermal printer
Note:
The printer shelf comes in two variates.
The older version (version 1) has a long plate mounted in the cabinet with a lock
mechanism at the end of the plate. The newer version (Version 2) has lock
directly after the hinge.
Both types are displayed in the manual.
