Page 42 CWT Compact Touch Installation and Maintenanace Manual Issue 13
4.8.4.1 COIN BOX Vault
The coin box vault is made of 4 mm sheet metal with side drilling protection.
The vault door, made of 6 mm armoured steel, has six drilling protected locking
latches along its edges.
The coin box vault door lock, placed inside a drilling protected and anti-bolster
fitting, is of a high security mechanical type such as Kaba or any of the Abloy
locks Guard-x, Exec and Protec. All of them use a key profile that can only be
obtained from the original lock manufacturer. The key does not have any serrated
surfaces neither any sharp or pointed edges. Registered locks and keys are
available.

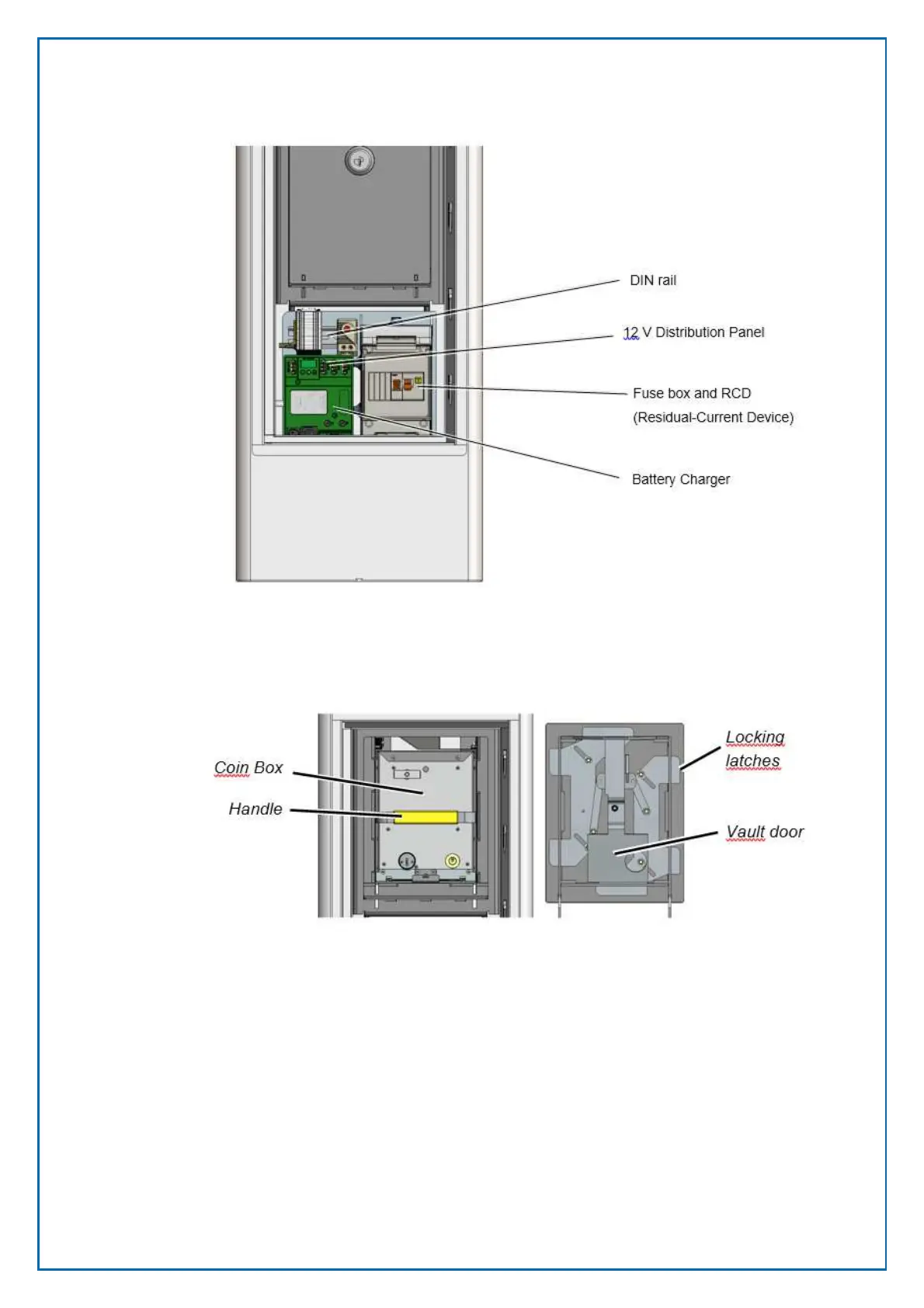

Figure 30, Vault interior.
Figure 29, Pedestal interior (example)
