Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
92

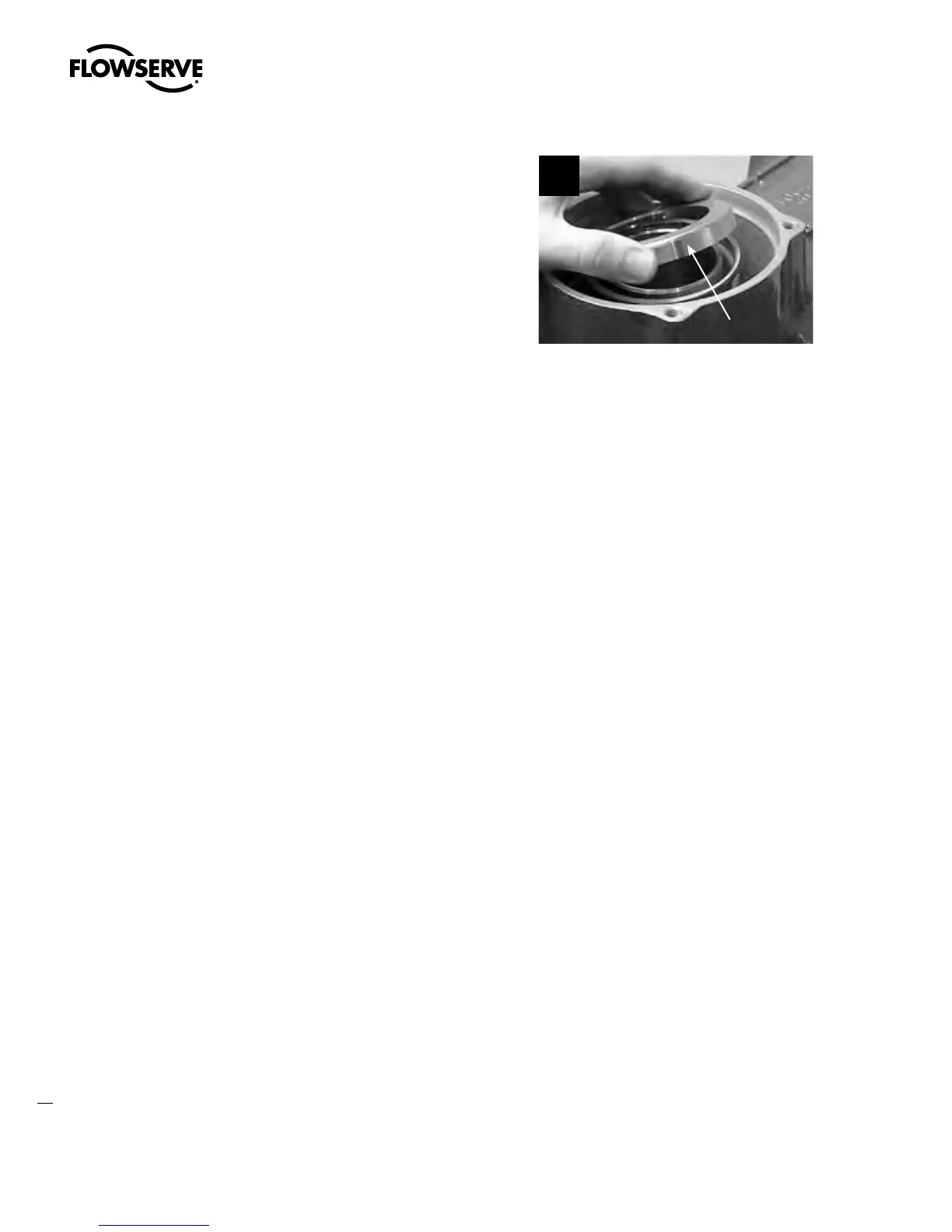

STEP 8
Slide spring spacer (#1-40) over drive sleeve
assembly.
8
1-40
STEP 9
Remount removed subassemblies according to their remounting instructions in the following order:
1. Handwheel adapter assembly (subassembly #12). See Section 4.14.2.
2. Top-mounted handwheel (#1-8) or side-mounted handwheel (subassembly #13). See Section
4.3.2 or Section 4.4.3 (MX-20), or Section 4.5.3 (MX-40).
