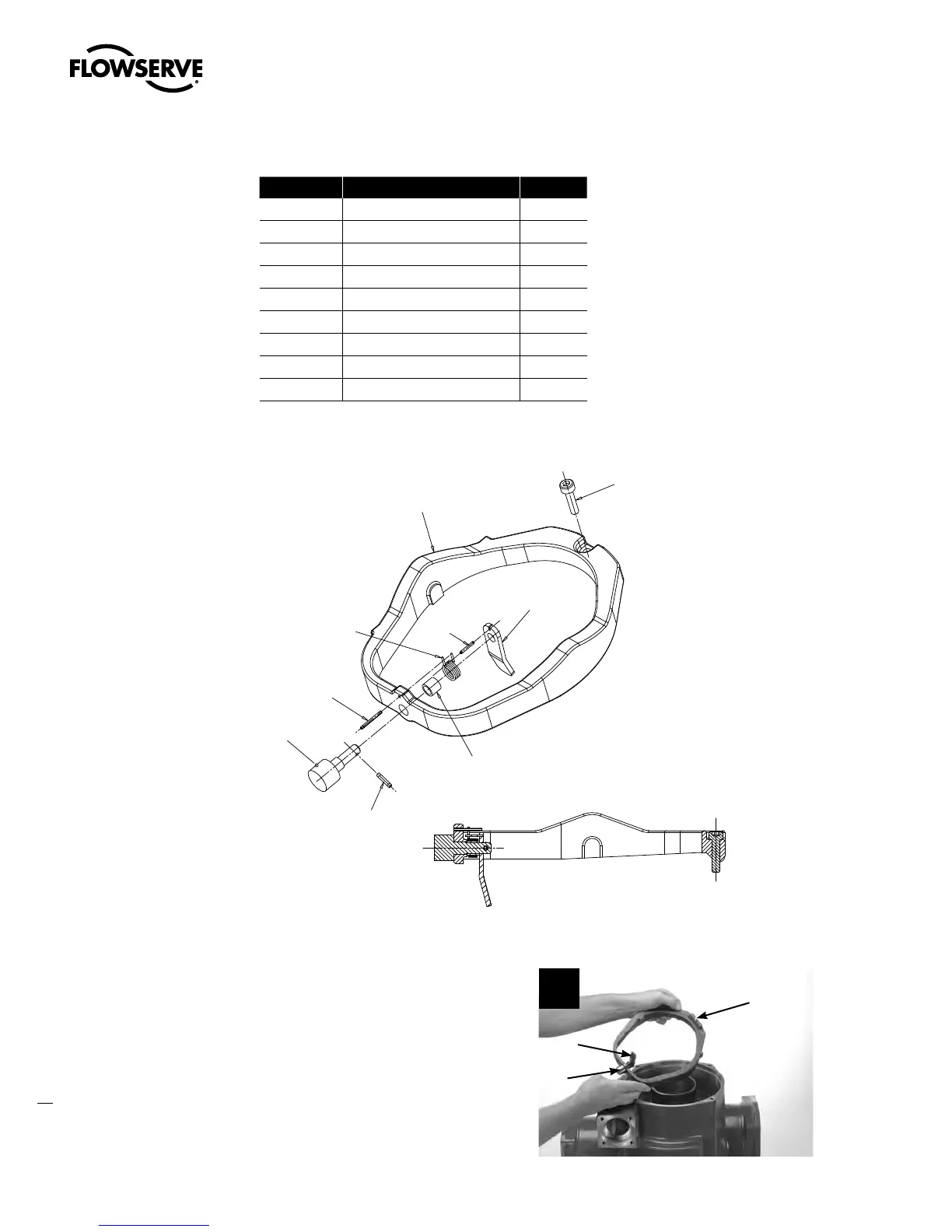

Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
90
Table 4.24 – Clutch Ring Assembly Parts List
Part Number Description Qty.
15-1 Clutch ring 1
15-2 Roller 1
15-3 Roll pin 1
15-4 Spacer 1
15-5 Latch spring 1
15-6 Roll pin 1
15-7 Latch 1
15-8 Roll pin 1
15-9 Socket head cap screw 1
Figure 4.28 – MX-85, -140, and -150 Clutch Ring









STEP 5B (MX-85, -140, AND -150 ONLY)
5b
15-9
15-7
15-2
Swanson Flo | 800-288-7926 | www.swansonflo.com
