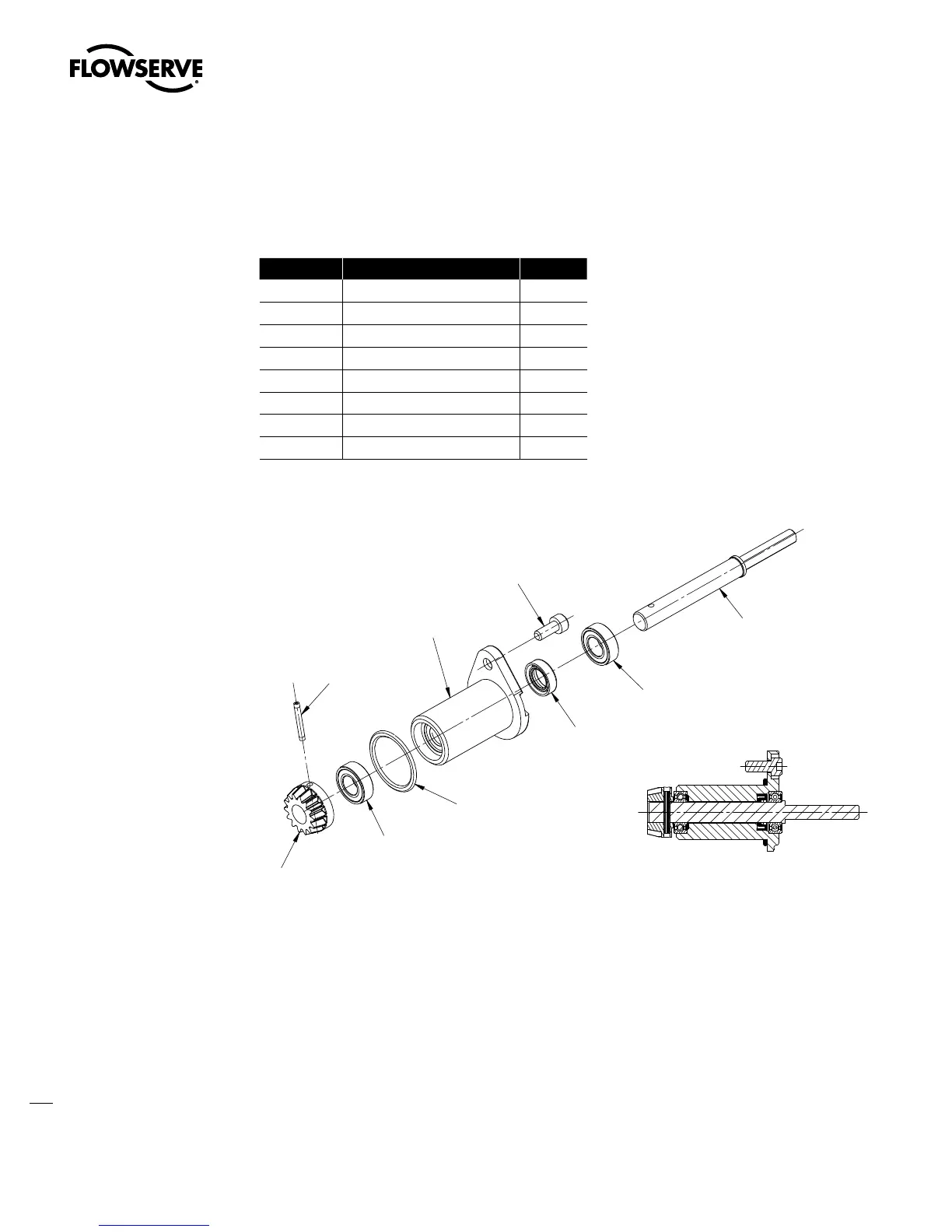

Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
138
5.16 Encoder Drive Cartridge (Supplied With Most
Actuators Since September 2007)
Table 5.16 – Encoder Drive Cartridge Parts List
Part Number Description Qty.
14-1 Encoder drive cartridge 1
14-2 Encoder drive shaft 1
14-3 Encoder pinion 1
14-4 Ball bearing 2
14-5 Oil seal 1
14-7 Roll pin 1
14-8 Socket head cap screw 1
14-9 O-ring 1
Figure 5.19 – Encoder Drive Cartridge
14-1
14-2
14-4
14-4
14-5
14-7
14-8
14-9
14-3
