Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

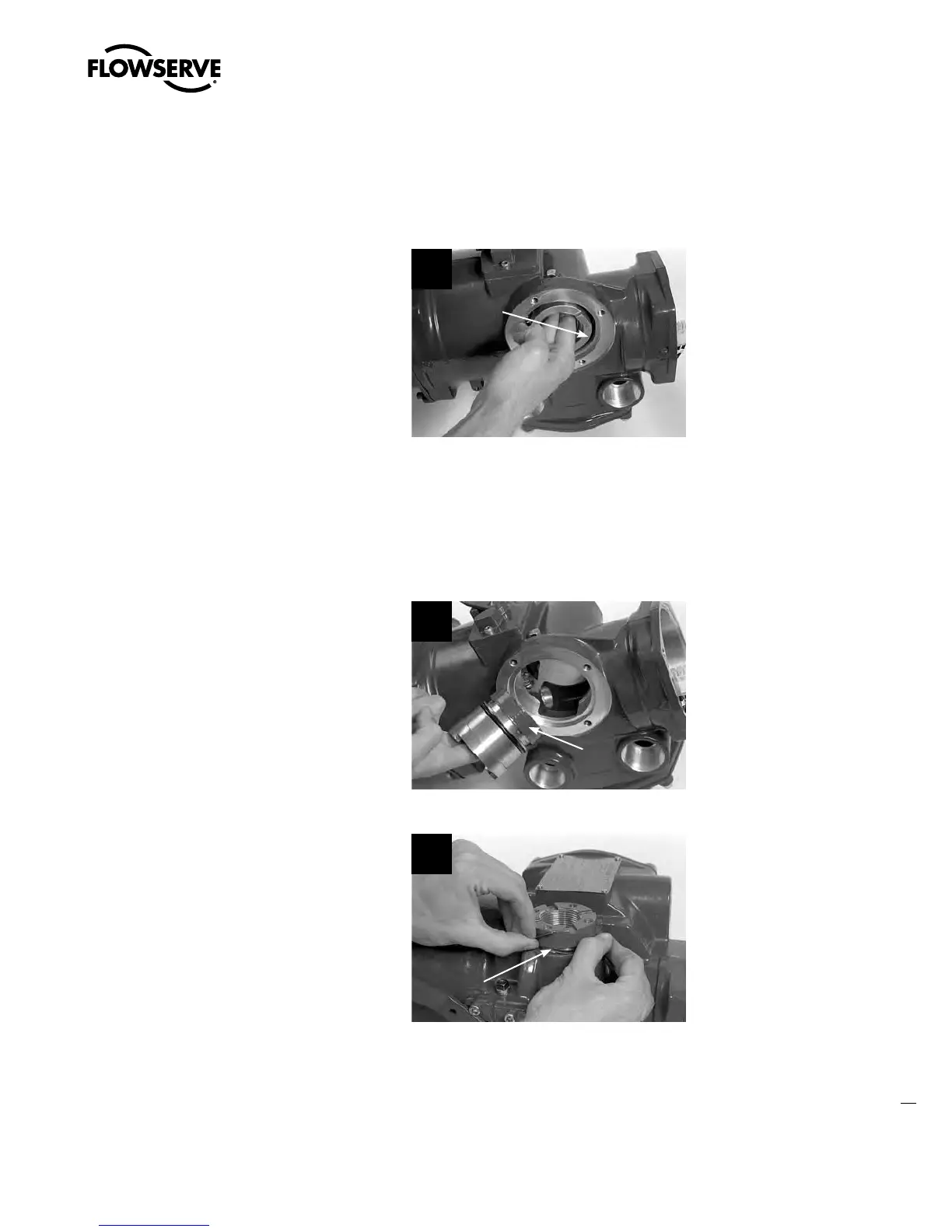

STEP 3
NOTE: The handwheel adapter for the MX-05 is removed and introduced from the base of the
actuator housing.
Push adapter assembly (#12) from the top
of the actuator out through the bottom of the
actuator housing.
3
Handwheel
Adapter
Assembly 12
4.13.2 Remounting
STEP 4
NOTE: Lightly lubricate quad rings/O-rings before remounting subassemblies.
With handwheel screw taps facing toward the
nameplate side of the actuator, slide handwheel
adapter assembly (#12) into the actuator hous-
ing’s drive sleeve bore. Use hammer handle
or similar device to push handwheel adapter
assembly against shoulder inside actuator
housing.
4
Handwheel
Adapter
Screw Taps
STEP 5
Once handwheel adapter assembly is installed
in actuator housing, wind wave spring (#1-10)
into groove on the handwheel adapter.
5
1-10
Swanson Flo | 800-288-7926 | www.swansonflo.com
