Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
5.14 Encoder Drive Cartridge (Most units prior to
September 2007)
Table 5.12 – Encoder Drive Cartridge Parts List
Part Number Description Qty.
14-1 Encoder drive cartridge 1
14-2 Encoder drive shaft 1
14-3 Encoder pinion 1
14-4 Ball bearing 2
14-5 Oil seal 1
14-6 Retaining ring 1
14-7 Roll pin 1
14-8 Socket head cap screw 1
14-9 O-ring 1
6-25 Input gear, 21-tooth 1
Table 5.13 – Encoder Drive Cartridge Drive Sleeve Speed
Drive Sleeve
Speed I.D.
1 2 3 4 5 6 7 8
50 Hz RPM
15 22 33 43 65 84/110
1
127/143
1
165
2
60 Hz RPM
18 26 40 52 77 100/131
1
155/170
1
200
2
NOTE: Reference the Output RPM block located on the MX nameplate and cross-reference in table above to
determine the unit Drive Speed ID.
NOTE 1: MX-85, -140, and -150 only.
NOTE 2: N/A MX-85, -140, and -150.

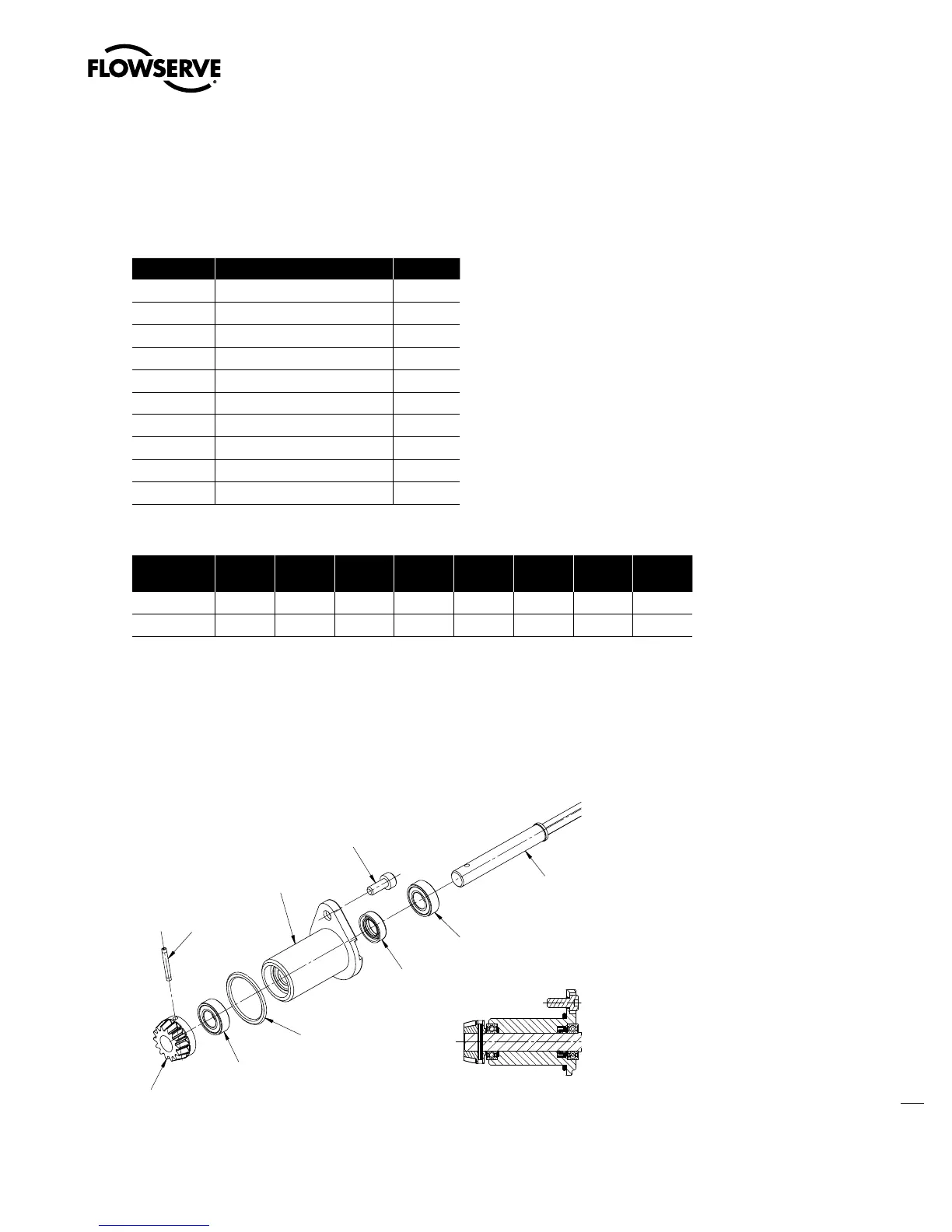

Figure 5.17 – Encoder Drive Cartridge
14-1
14-2
14-4
14-4
14-5
14-7
14-8
14-9
14-3
