Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
STEP 4
Remount all removed subassemblies according to the remounting instructions in the following
order.
1. Contactor assembly (subassembly #8). (See Section 5.10.1)
2. Control module (subassembly #15). (See Section 5.6.1)
3. Control panel (subassembly #7). (See Section 5.1)
4. Motor (subassembly #4). (See Section 4.1.1)
5.18 Solid State Motor Reverser Upgrade
Instructions (Most units prior to September
2007)
Table 5.17 – SSMR Upgrade Kit Parts List
Part Number Description Quantity
7 Control panel (CP) 1
7-27 Socket head cap screws (CP) 4
1-52 Solid state reverser assembly 1
1-53 SSMR protection fuse assembly 1
1-54 Motor fuse block assembly 1
1-55 Standoff 3
1-56 Washer 3

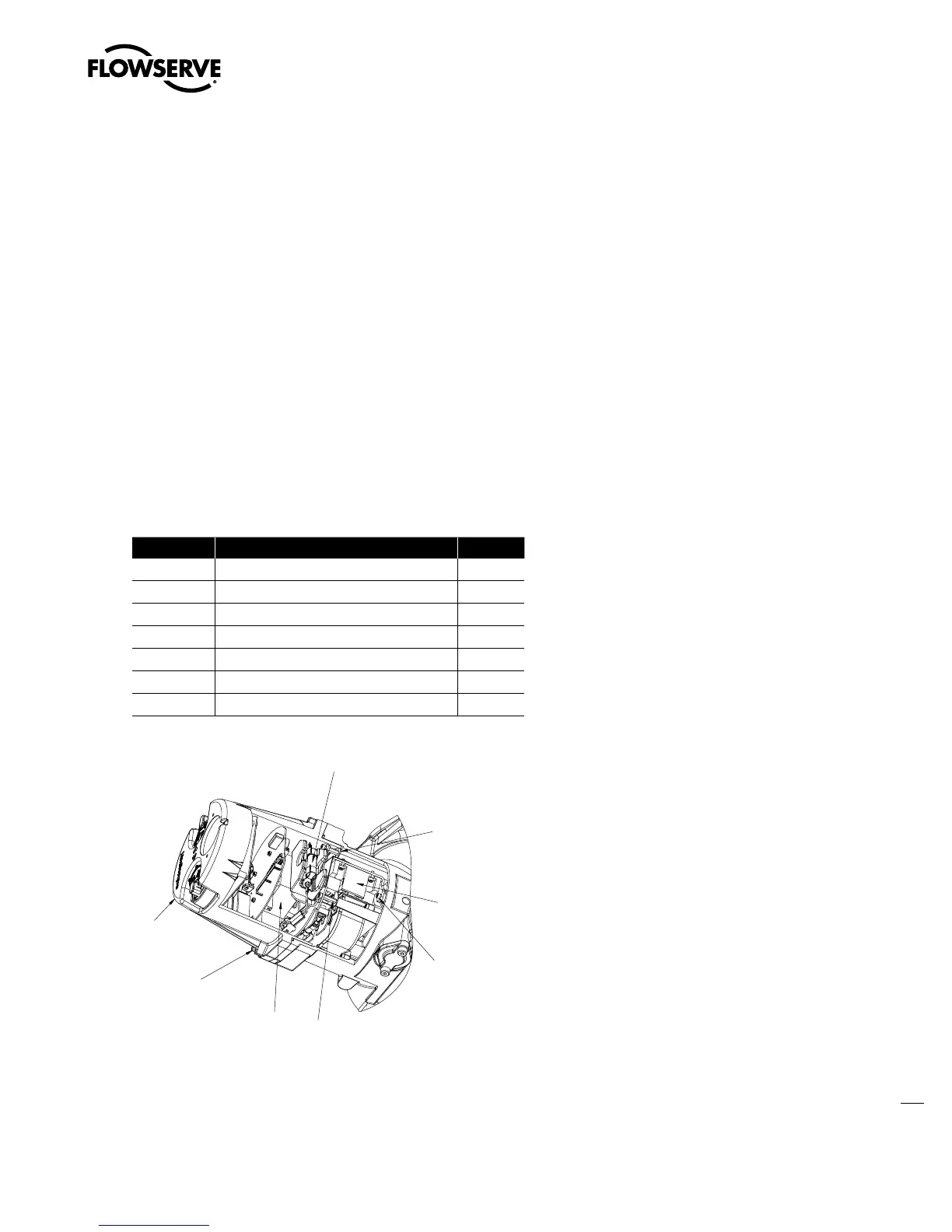

Figure 5.21 – Cutaway View of SSMR Controls Area
1-18
7-27
1-19
1-53
1-56
1-52
1-55
8-28
