Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
70
4.12 Drive Sleeve (MX-20, -40, -85, -140, and -150)
Table 4.19 – Drive Sleeve Parts List (MX-20, -40, -85, -140, and -150)
Part
Number
Description
Quantity
MX-20 and -40
MX-85, -140, and
-150
MX-85, -140, and
-150
10:1 and 13:1
Ratio
2-1 Drive sleeve 1 1 1
2-2 Worm gear 1 1 1
2-3 Encoder drive gear 1 1 1
2-4 Ball bearing 1 1 1
2-5 Retaining ring 1 N/A N/A
2-6 Drive sleeve key 1 1 1
2-7 Spacer N/A N/A 3
2-8 Ball bearing N/A N/A 2
2-9 Retaining Ring N/A N/A 1

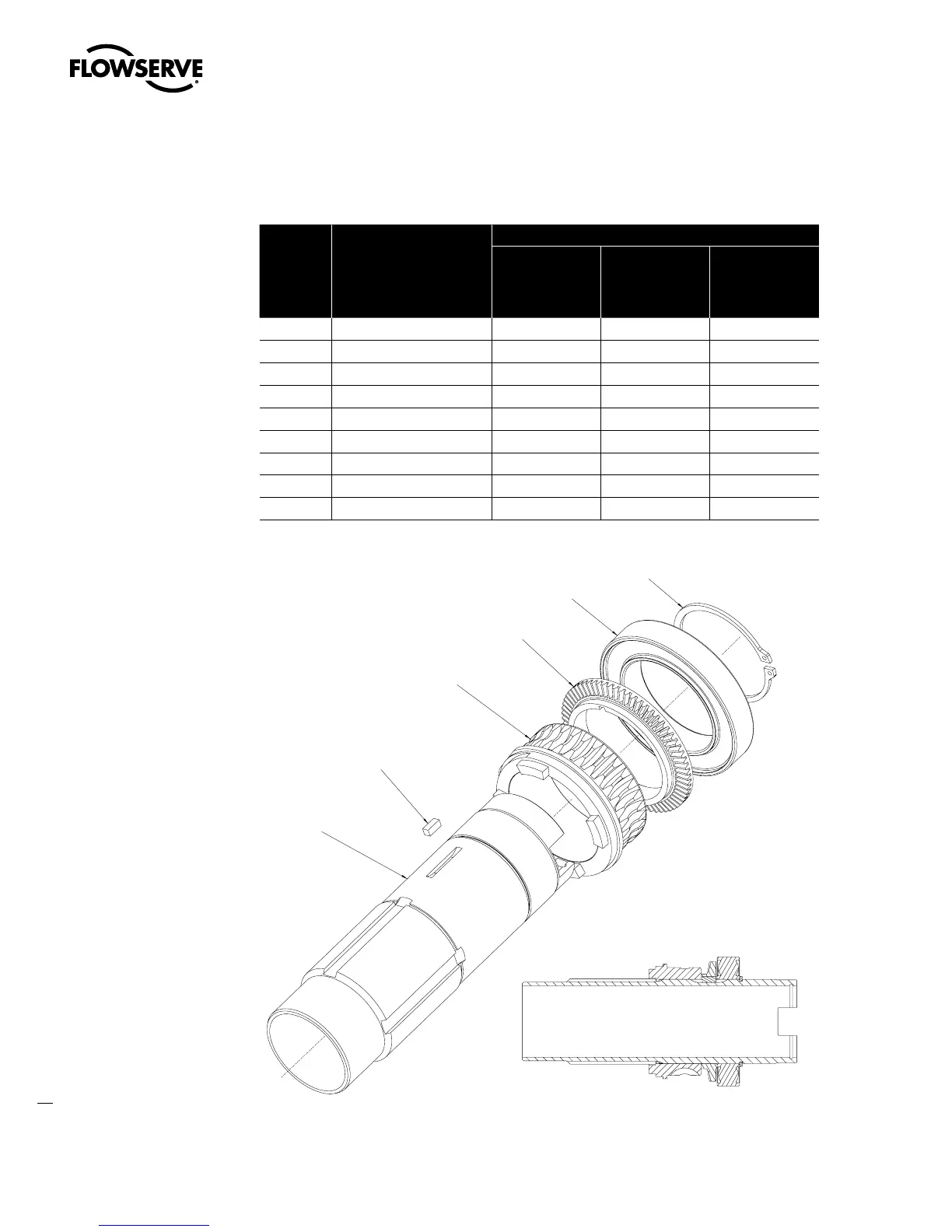

Figure 4.20 – MX-20 and -40 Drive Sleeve






