Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
54
Table 4.13 – Type A1 Thrust Base Parts List (MX-85)
Part Number Description Qty.
10-1 Thrust base housing 1
10-2 Thrust base mounting flange 1
10-3 Thrust nut (A1 or A1E) 1
10-10 Socket head cap screw 4
10-11 Grease fitting 1
10-12 Thrust bearing 2
10-13 Thrust washer 4
10-14 Quad ring 2
10-15 O-ring 1
10-17 Socket head cap screw 6

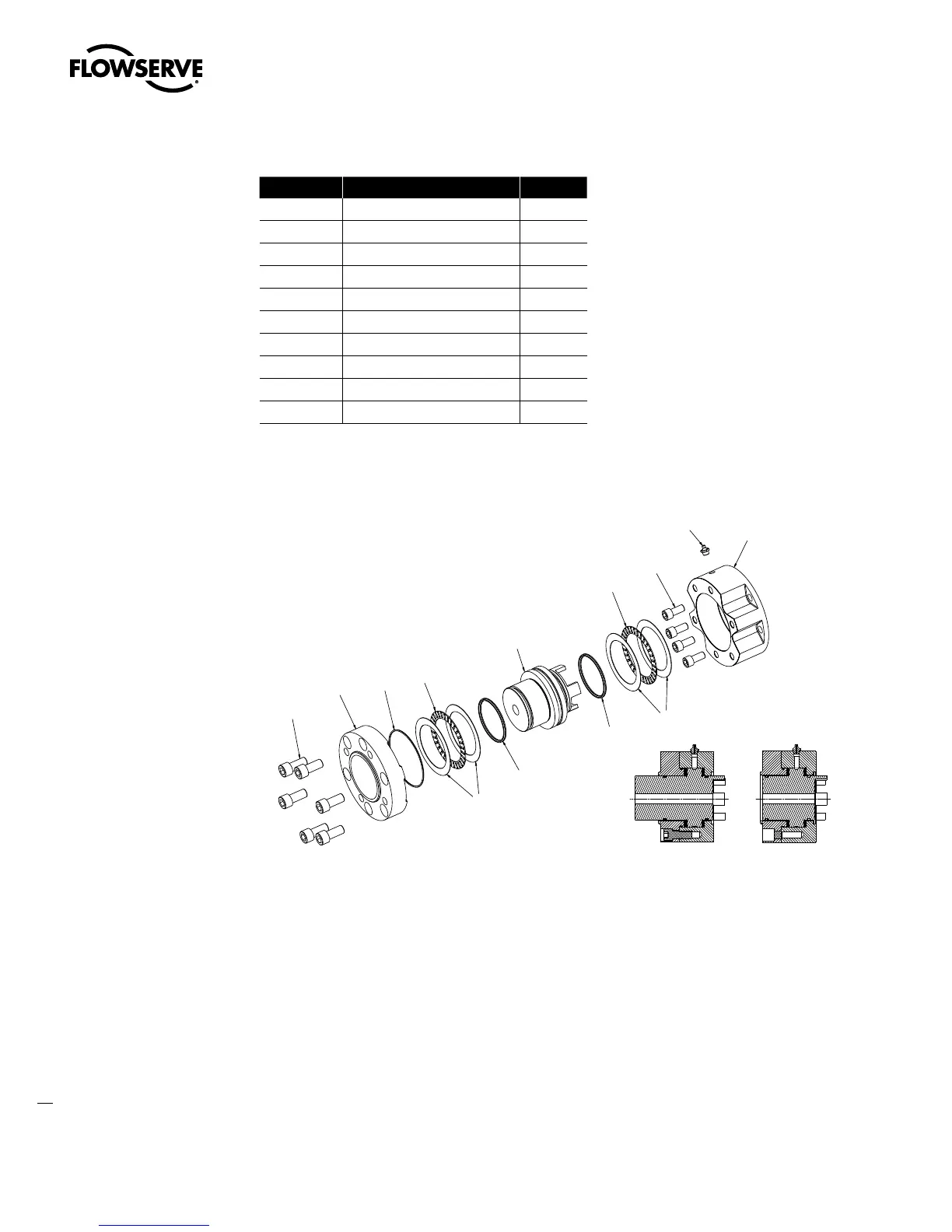

Figure 4.13 – Type A1 Thrust Base (MX-85) - F16 Flange
10-17
10-2
10-13
10-12
10-14
10-3
10-14
10-12
10-10
10-1
10-13
10-11
10-15
SECTION A-A
VIEW SHOWN WITH
STANDARD NUT
SECTION A-A
VIEW SHOWN WITH
EXTENDED NUT
