41
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.5.1 MX-85, -140, and -150 Handwheel with SGA
Table 4.11 – Side-Mounted Handwheel Parts List (MX-85, -140,
and -150)
c
WARNING: Do not manually
operate the actuator w/ devices
other than the installed hand-
wheel and declutch lever. Using
force beyond the ratings of the
actuator and/or additive forces
such as cheater bars, wheel
wrenches, pipe wrenches, or
other devices on the actuator
handwheel or declutch lever
may cause serious personal
injury and/or damage to the
actuator and valve.
Part Number Description Qty.
13-1 Handwheel worm shaft 1
13-2 Spur adapter plate 1
13-3 Ball bearing 1
13-5 Spiral pin 1
13-6 Gasket 1
13-7 Key 1
13-8 Needle bearing 1
13-9 Socket head cap screw M8x25 4
13-10 Side-Mounted handwheel 1
13-11 Ball bearing 1
13-12 Handwheel input gear 1
13-13 Spur adapter cap 1
13-14 Handwheel input pinion 1
13-15 Oil seal 1
13-17 Dowel pin 1
13-18 Set screw 1
13-19 Gasket 1
13-20 Socket head cap screw M8x20 4
13-22 Ball bearing 1
13-23 Ball bearing 1
13-24 Key 2
13-28 Retaining ring 1

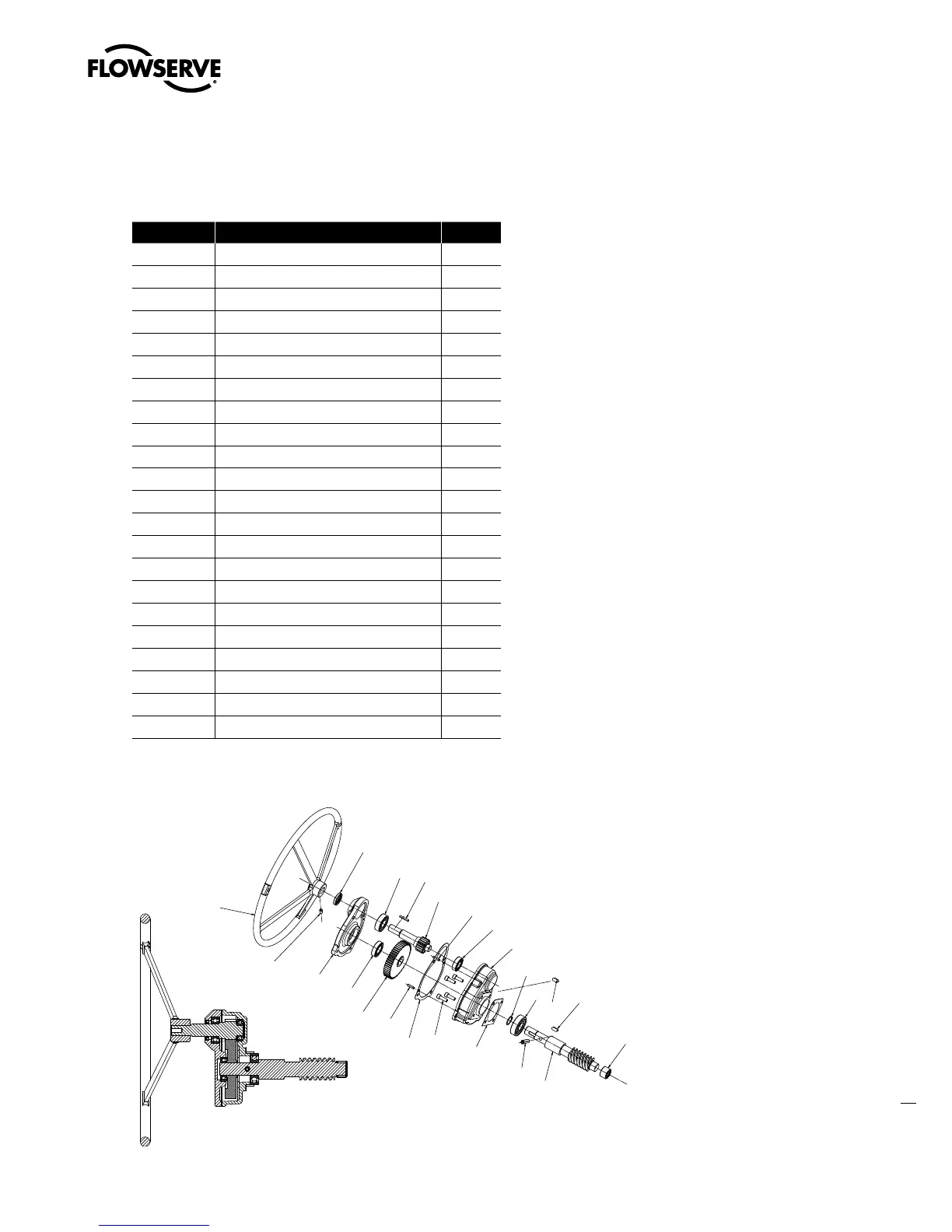

Figure 4.11 – Side-Mounted Handwheel With SGA (MX-85, -140, and -150)
13-10
13-18
13-17
13-19
13-9
13-6
13-5
13-1
13-8
13-24
13-24
13-3
13-28
13-2
13-17
13-14
13-7
13-23
13-15
13-11
13-12
13-22
13-13
