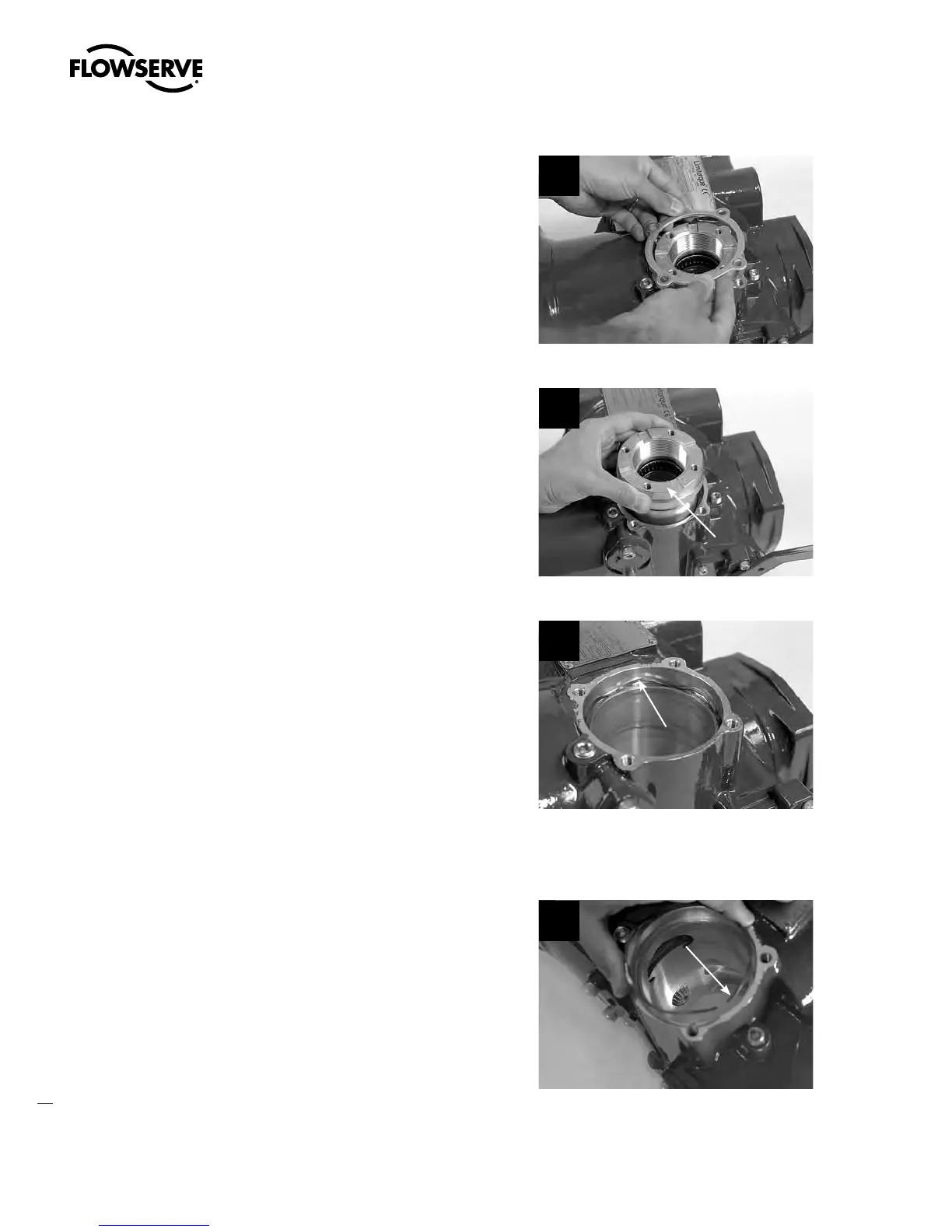

STEP 2
Lift off the retainer plate (#1-32).
2
STEP 3
Pull the handwheel adapter assembly (#12) out
of the actuator housing.
3
12
STEP 4 (MX-10 ONLY)
Lift out wave spring (#1-10) from the actuator
housing.
4
1-10
4.14.2 Remounting
STEP 5 (MX-10 ONLY)
Insert the wave spring (#1-10) onto the
shoulder of the actuator housing.
5
1-10
