5
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
If your unit incorporates a rising stem application, it may be shipped with a plastic cap over the drive
sleeve. If so, install a pipe plug or protective stem cover to protect the drive sleeve from possible
corrosion.
Preferred Storage Orientation
Your MX actuator should be stored with the motor and terminal compartment in the horizontal position
to obtain optimum service life.
2.1.3 Unit Weights
Table 2.2 – Unit weights
Unit lb. kg
MX-05 52 24
MX-10 65 29
MX-20 109 49
MX-40 133 60
MX-85 259 117
MX-140 300 136
MX-150 410 186
NOTE: Weights include stem nut and lubricant.
2.2 Product Identification
2.2.1 Initial Inspection and Recording Suggestions
Upon receipt of the actuator, several steps should be initially followed to ensure condition of equipment
and to establish proper record keeping.
1. After removing the actuator from the shipping carton or skid, thoroughly examine it for any physical
damage which may have occurred during shipment. If you note any damage, immediately report the
damage to the transport company and call Limitorque for further assistance.
2. A nameplate with important information is attached to each actuator. Record the following informa-
tion for use when you need to contact Limitorque with any questions about your actuator:
• Unit type/size
• Flowserve Limitorque order number
• Serial number

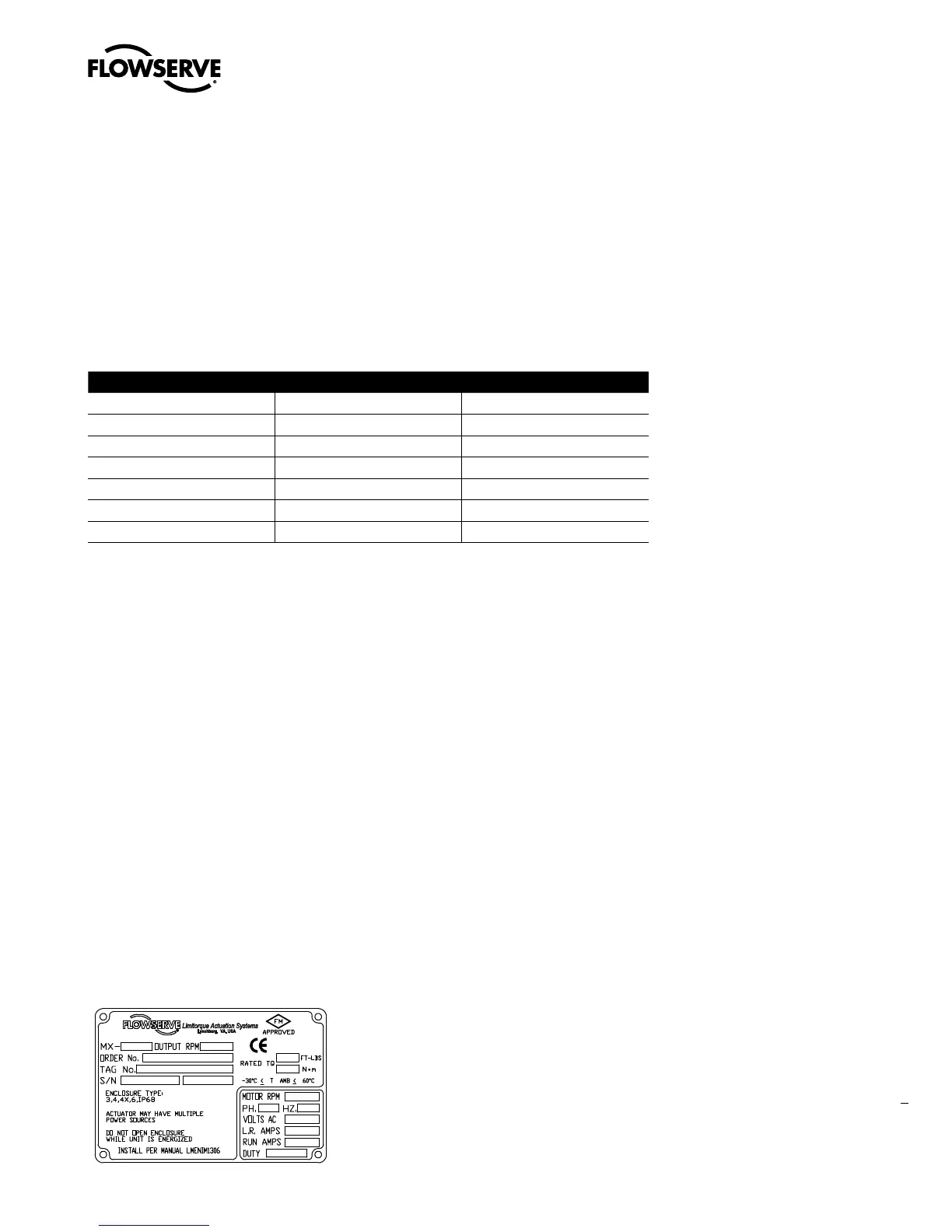

Figure 2.2 – MX Nameplate
