27
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
Table 4.6 – Declutch Parts List (MX-85, -140, and -150)
Part Number Description Qty.
5-1 Declutch cover 1
5-2 Declutch shaft 1
5-3 Declutch cam 1
5-4 Declutch spring 1
5-9 Retaining ring 2
5-10 Socket head set screw 1
5-11 O-ring 1
5-12 Socket head set screw 2
5-13 Spiral pin 1
5-15 O-ring 1
5-16 Pipe plug 1

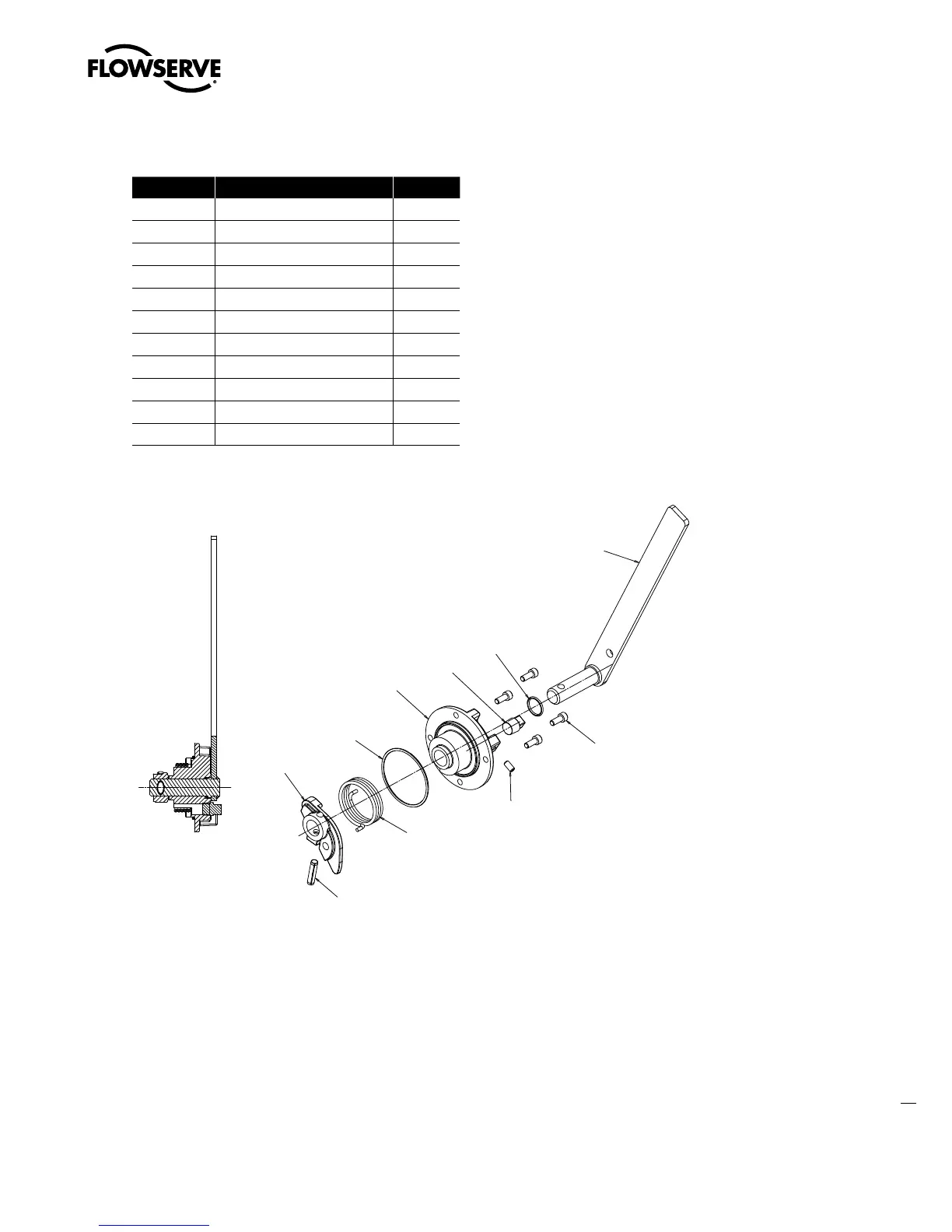

Figure 4.6 – Declutch (MX-85, -140, and -150)
4.2.1 Removal
NOTE: The MX-05, -10, -85, -140, and -150 declutch assembly may be removed and remounted without
other subassembly removal.
NOTE: The MX-20 and -40 declutch assembly may be removed without other subassembly removal, but
remounting requires removing the following subassemblies:
1. Handwheel (Subassembly #13)
2. Handwheel adapter (Subassembly #12)
3. Clutch and clutch ring (Subassembly #16)
