7
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

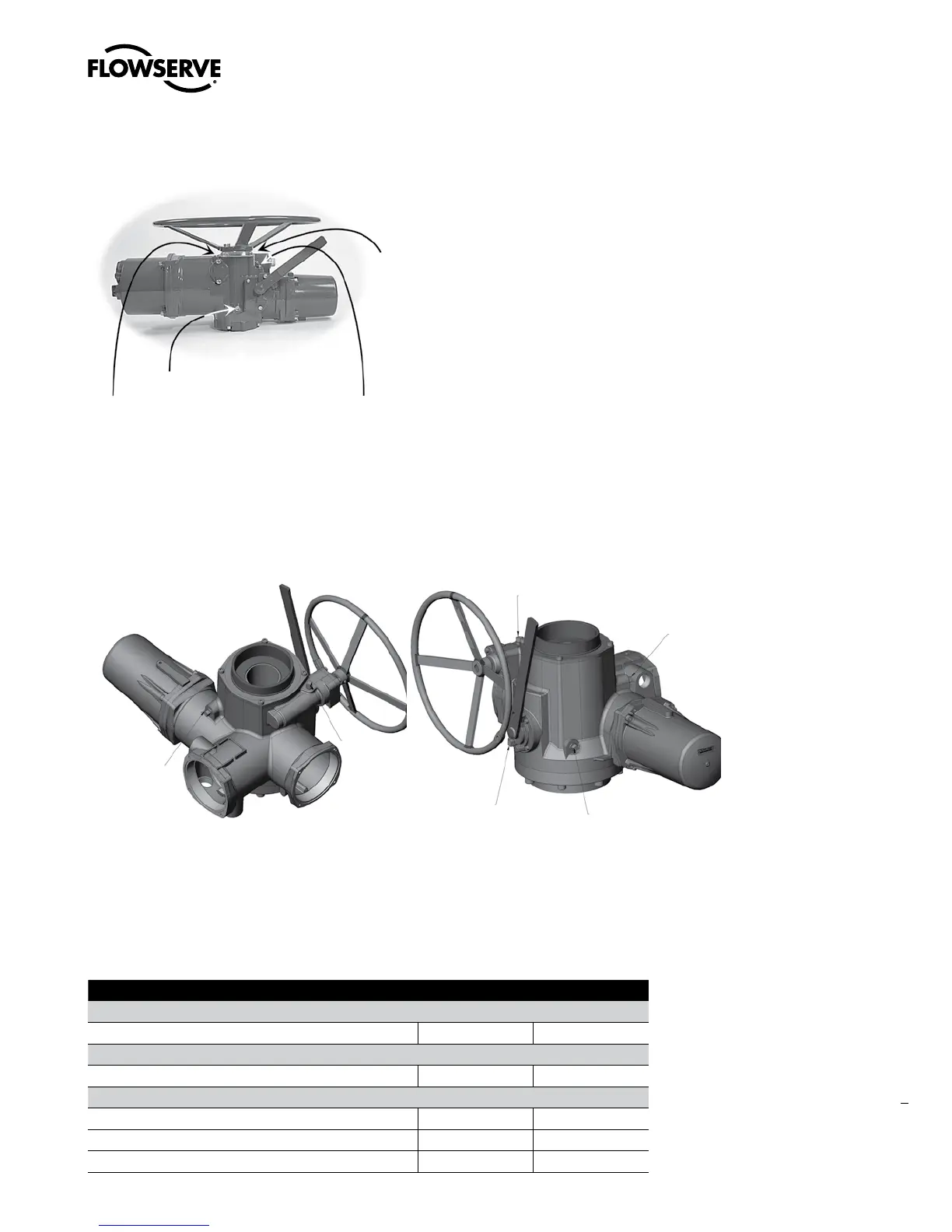

Figure 2.3 – Oil Fill/Plug Locations (MX-05 through -40)
t.9UPQNPVOUFE
IBOEXIFFMPJMDIFDLPJMmMM
t.9TJEFNPVOUFE
IBOEXIFFMPJMDIFDLPJMmMM
t0JMESBJOBMMVOJUT
t.9UPQNPVOUFE
IBOEXIFFMPJMDIFDLPJMmMM
t.9TJEFNPVOUFE
IBOEXIFFMPJMDIFDLPJMmMM
Figure 2.4 – Oil Fill and Drain Locations (MX-85, -140, and -150)
0JM1MVH
0JM1MVH
0JM1MVH
0JM1MVH
0JM1MVH
0JM1MVH
Lubrication Data
Oil Specifications: MX actuators are oil-filled using Mobil SHC-632, which is a synthetic oil suitable for
ambient temperatures of -22°F to 250°F (-30°C to 120°C). For extreme low temperature conditions,
alternative lubricants are available - consult factory for further information.
Table 2.3 – MX-05 and -10 Oil Capacities when using Oil Fill/Plug Ports
Nominal Oil Capacities oz. liters
MX-05
10 0.3
MX-10
16 .05
MX-20
Top-mounted handwheel with handwheel up 38 1.1
Top-mounted handwheel with terminal compartment up 47 1.4
Side-mounted handwheel with terminal compartment up 43 1.3
Swanson Flo | 800-288-7926 | www.swansonflo.com
