Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

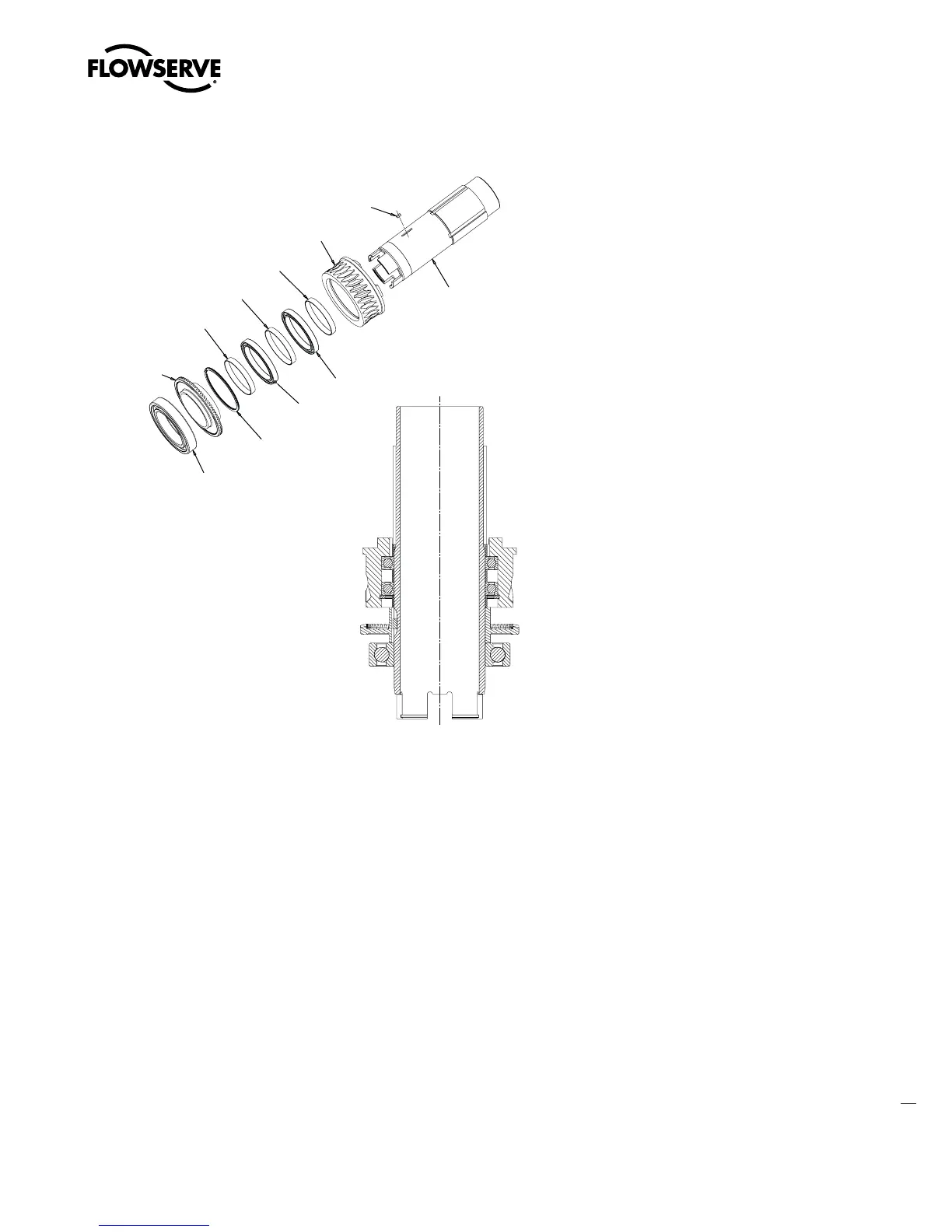

Figure 4.21 – MX-85, -140, and -150 10:1 and 13:1 ratios











4.12.1 Removal
First Remove
1. Remove actuator from mounting adapter.
2. Drain oil.
3. Remove thrust base (subassembly #10) - if fitted. (See Section 4.8.1.)
4. Remove motor (subassembly #4). (See Section 4.1.1.)
5. Remove worm shaft (subassembly #3). (See Section 4.10.1.)
6. Remove top-mounted handwheel (#1-8) or side-mounted handwheel (subassembly #16). (See
Section 4.3.1 or 4.4.2.)
7. Remove handwheel adapter (subassembly #12). (See Section 4.14.1.)
8. Remove clutch and clutch ring (subassembly #16). (See Section 4.15.1.)
9. Remove handwheel declutch (subassembly #5). (See Section 4.2.1.)
10. Remove base plate (subassembly #11). (See Section 4.9.1 or Section 4.12.1 for MX-85, -140, and -150)
