Flowserve ROTADISK RD User Manual

ROTADISK Pneumatic Actuator RD & RDF
Operating Manual – BA3002 EN
8 Repair
Page 46 of 79

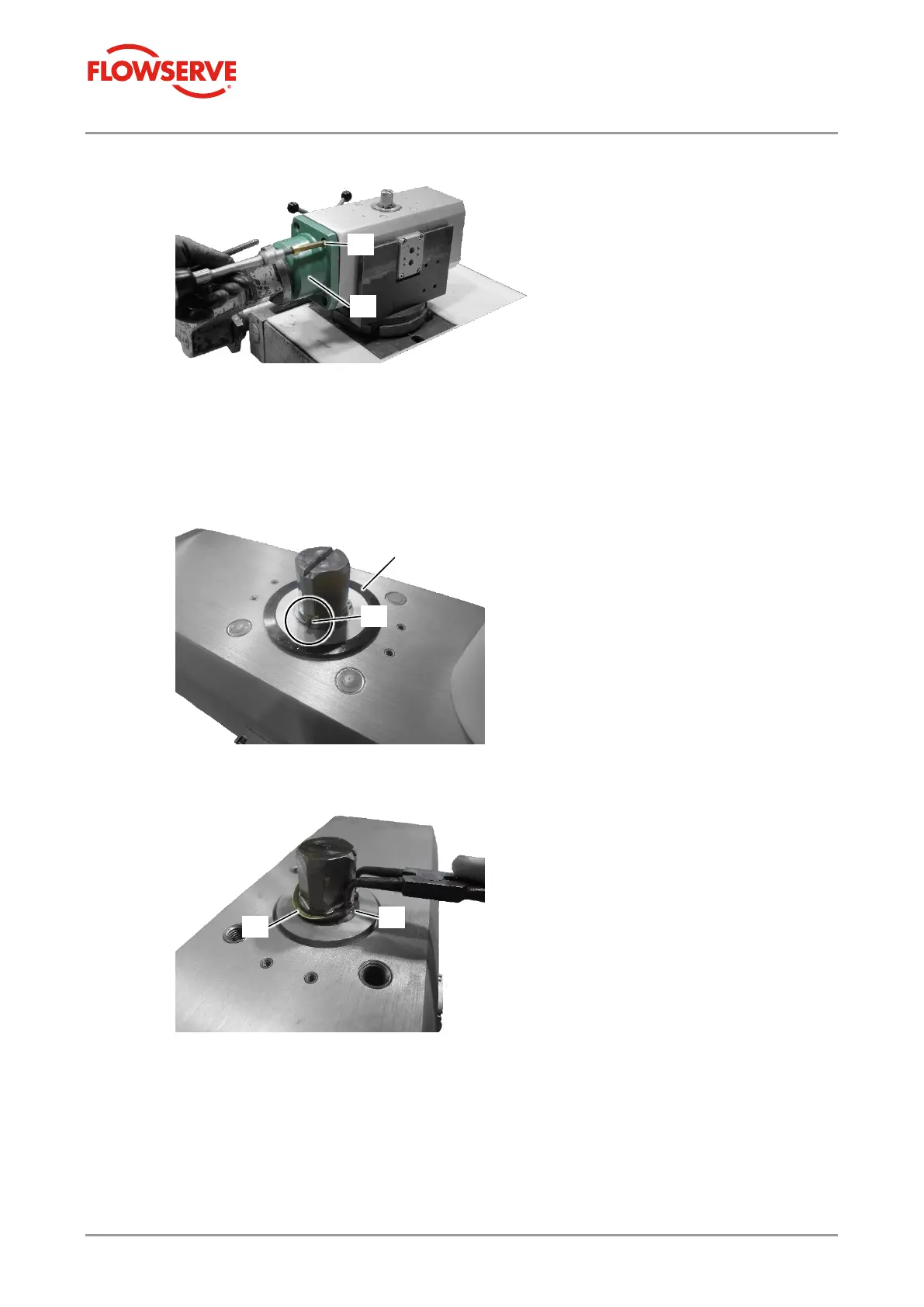

4. Loosen the lid screws [1] diagonally opposed on the lid [2].
5. Take the spring package out of the side of the body.
6. Repeat the previous steps for the other side of the body.
7. Unscrew the locking pin (threaded pin) [5] from the drive shaft.
8. Remove the black support ring [17].
9. Remove the shaft locking ring [6] and the washer [7].
[5]
[6]
[7]
[17]
[1]
[2]
