8 Repair
Page 55 of 79

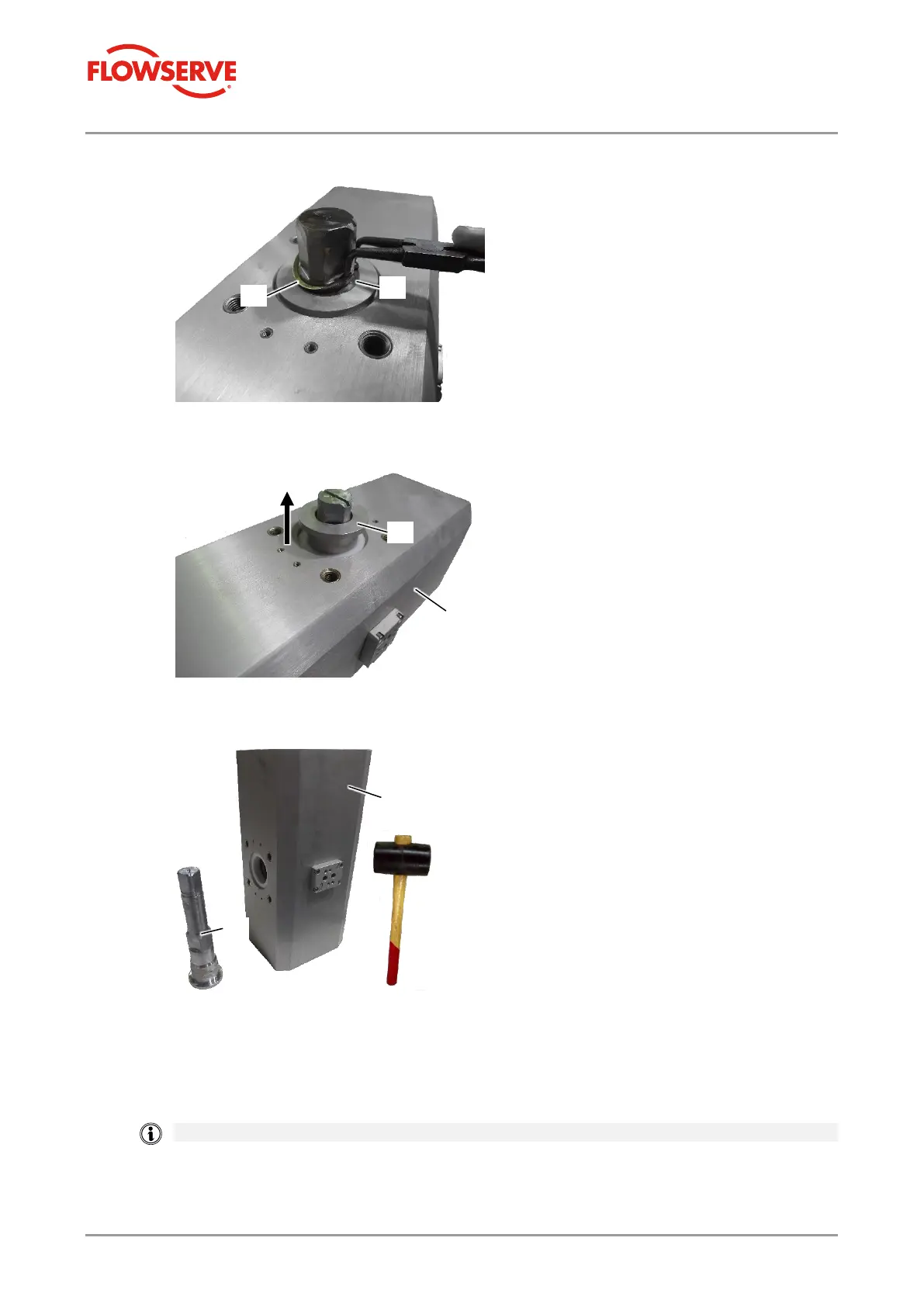

7. Remove the shaft locking ring [6] and the washer [7].
8. Pull the shim bushing [8] out of the body [10].
9. Knock the drive shaft [4] out of the body [10] with a rubber hammer.
10. Remove the bearing bushes [15] and the Q/O-rings [12][14] from the body [10].
11. Push out the piston pair [9] with a soft tool until it is flush with the body [10].
12. Mark the piston [9] and the body end wall.
Ideally use a felt-tipped pen or scriber for marking.
[6]
[8]
[7]
[4]
[10]
[10]
