45
Service Manual
8-6
Table 8-1. IEEE-488 Transceiver Control
Transceiver TE = 0 (Listener) TE = 1 (Talker)
DI01..DI08 Receiver Transmitter
SRQ Transmitter Transmitter
ATN Receiver Receiver
EOI Receiver Receiver (ATN = 0)
Receiver Transmitter (ATN = 1)
DAV Receiver Transmitter
NRFD Transmitter Receiver
NDAC Transmitter Receiver
IFC Receiver Receiver
REN Receiver Receiver
A.
Mounting Screw (2)
Chassis
Case
Rear Bezel
Grounding Screw (2)
B.
qb14f.eps

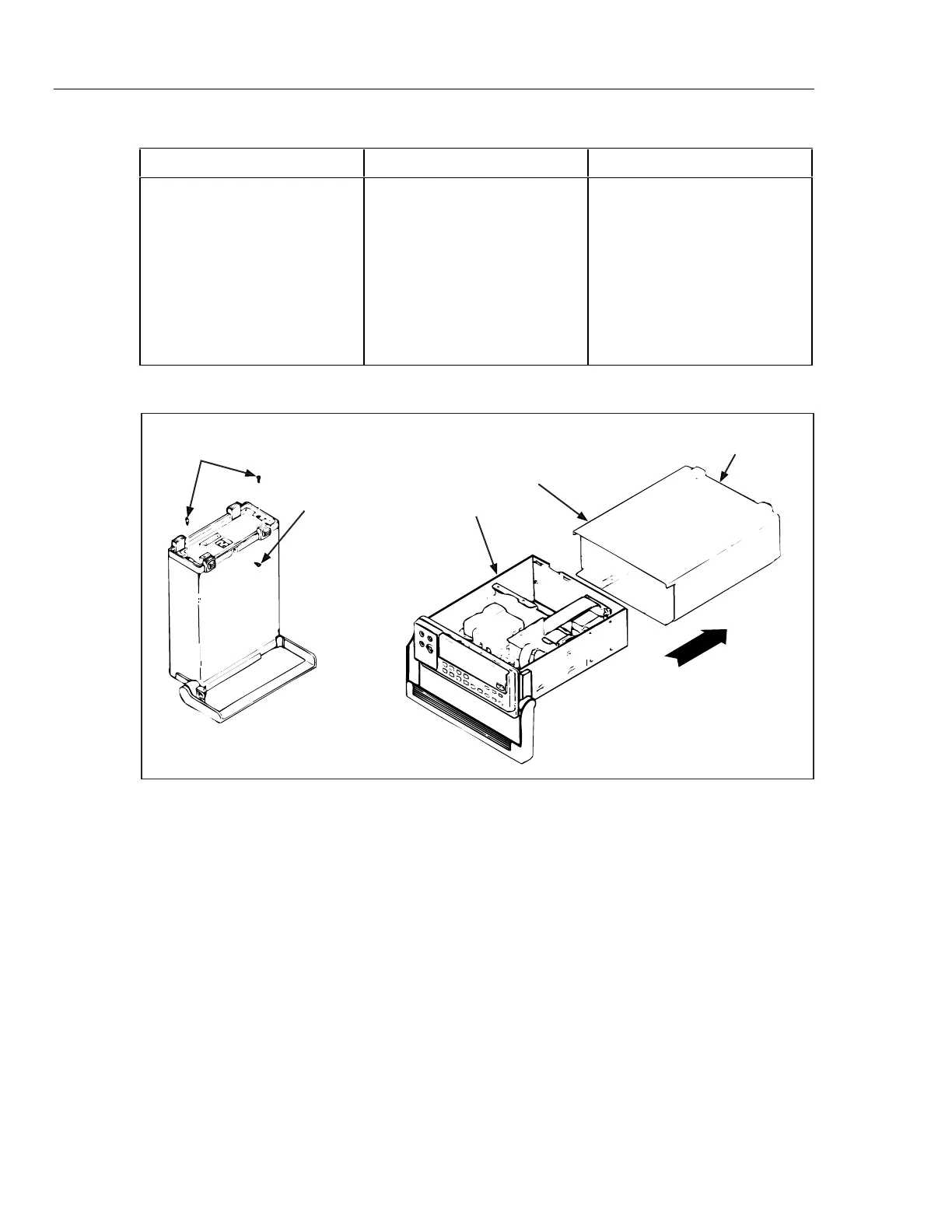

Figure 8-1. Disassembly
