Section 4: Using the Model 9100: AC Voltage Function 4.4-15
Final Width = 215mm
4.4.6 Volt-Hertz Limits
4.4.6.1 Volt-Hertz Profile (Sinusoidal Waveshape)
The combination of voltage and frequency of the sinewave output signal is enabled only
within the Volt-Hertz product envelope shown in Fig. 4.4.2.
100V
40Hz
Output Frequency (Hz) (log scale)
Output
Voltage
(log scale)
40
3k
50V
10 1k
1000V
10V
10Hz
10kHz
30kHz
100
Limit =
1.05 x 10
7
V-Hz
350V
105V
105V
1050V
100
kHz
30k
100k10k

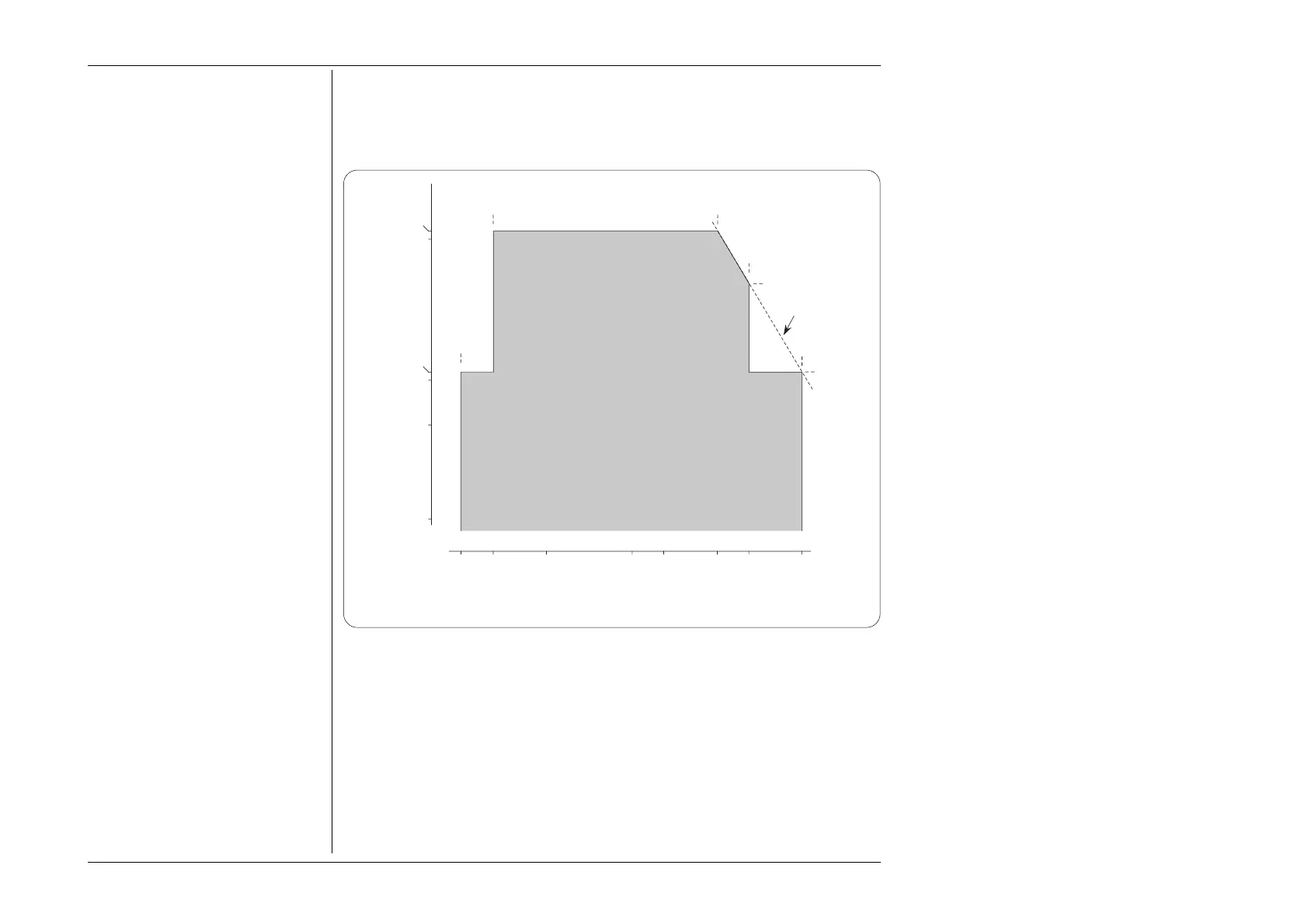

Fig. 4.4.2 9100 ACV Volt-Hertz Profile
Any attempt to select a combination of voltage and frequency (including the application
of deviation) outside these constraints will not be enabled. An audible warning will be
given, accompanied by the screen message: 'Out of range'.
If the abortive attempt involves the use of Direct Editing. then a further message '
Error!'
will be placed into the active editing box.
The other four waveshapes (see paras 4.4.3.4) have different limits:
1kHz maximum up to 150V peak (nominal);
45Hz-55Hz above 150V peak (nominal).
