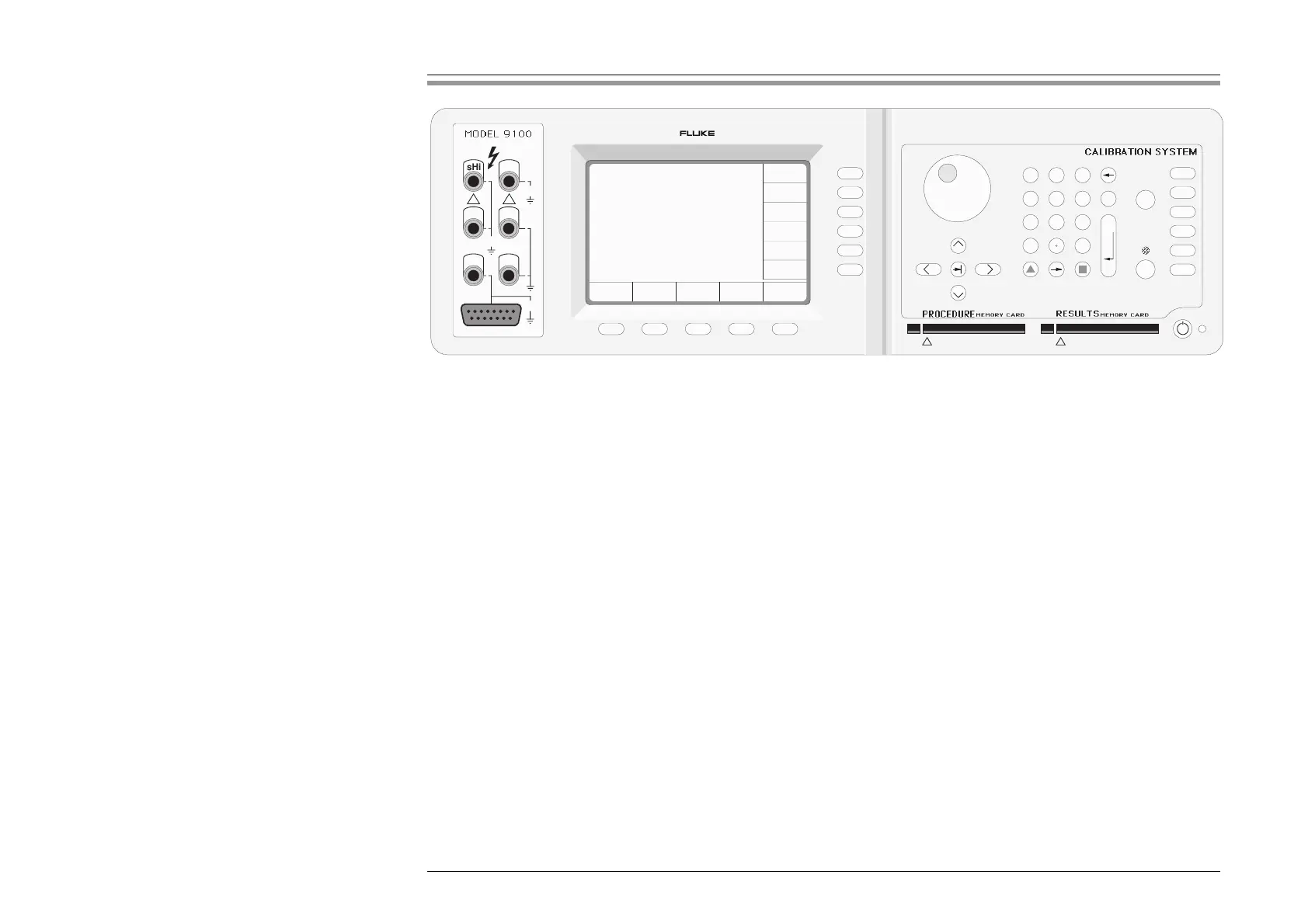

1.2 Introduction to the Model 9100
W
1.2.1 Functions
The Model 9100 is a state-of-the-art calibrator offering multimeter test capabilities, providing wide functionality from a single
source. It can calibrate:
• DC Voltage: ...............................................0V to ±1050V
• AC Voltage: ...............................................0V to 1050V 10Hz to 100kHz
Waveshapes: Sinusoidal, Square, Impulse, Triangular and Trapezoidal
• DC Current: ................................................0A to ±20A (1000A with Option 200)
• AC Current: ................................................0A to 20A 10Hz to 30kHz (1000A with Option 200)
Waveshapes: Sinusoidal, Square, Impulse, Triangular and Trapezoidal
• Resistance:..................................................0Ω to 400MΩ
• Frequency (1:1 Square Wave):...................0.5Hz to 10MHz
Voltage Levels (LF): -32V to +32V (HF): -6.5V to +6.5V
• Phase: ......................................................... ±180° on ACV and ACI functions
• Mark/Period Ratio: .....................................2.5 x 10
-8
: 1 to 0.999995 : 1
Pulse widths: 0.05 µ s to 1999.99ms Repetition Intervals: 0.1 µ s to 2000.00ms
Voltage Levels (LF): -32V to +32V (HF): -6.5V to +6.5V
• Per Cent Duty Cycle: .................................00.05% to 99.95% (2 decimal places)
Repetition Intervals: 0.1µs to 2000.00ms
Voltage Levels (LF): -32V to +32V (HF): -6.5V to +6.5V
• Capacitance: ...............................................500pF to 40mF
• Conductance: ..............................................2.5nS to 2.5mS
• Thermocouple Simulation: .........................Types: B, C, E, K, L, J, N, R, S and T. Temp. Scales: IPTS-68 & ITS-90.
Range depends on thermocouple type: Refer to Section 4, Paras 4.14.
• RTD Temperature Simulation:...................'PT385' (Euro) curve: -200°C to +850°C; or 'PT392' (USA) curve: -200°C to +630°C
Temp. Scales: IPTS-68 & ITS-90.
• Logic Stimulus: .......................................... Pulsed Logic: TTL, CMOS, ECL
Pulse widths: 0.05
µ s to 1999.99ms Repetition Intervals: 0.1 µ s to 2000.00ms
• Logic Stimulus: .......................................... DC Levels: TTL, CMOS, ECL
