Section 4: Using the Model 9100: AC Current Function 4.6-5
Final Width = 215mm

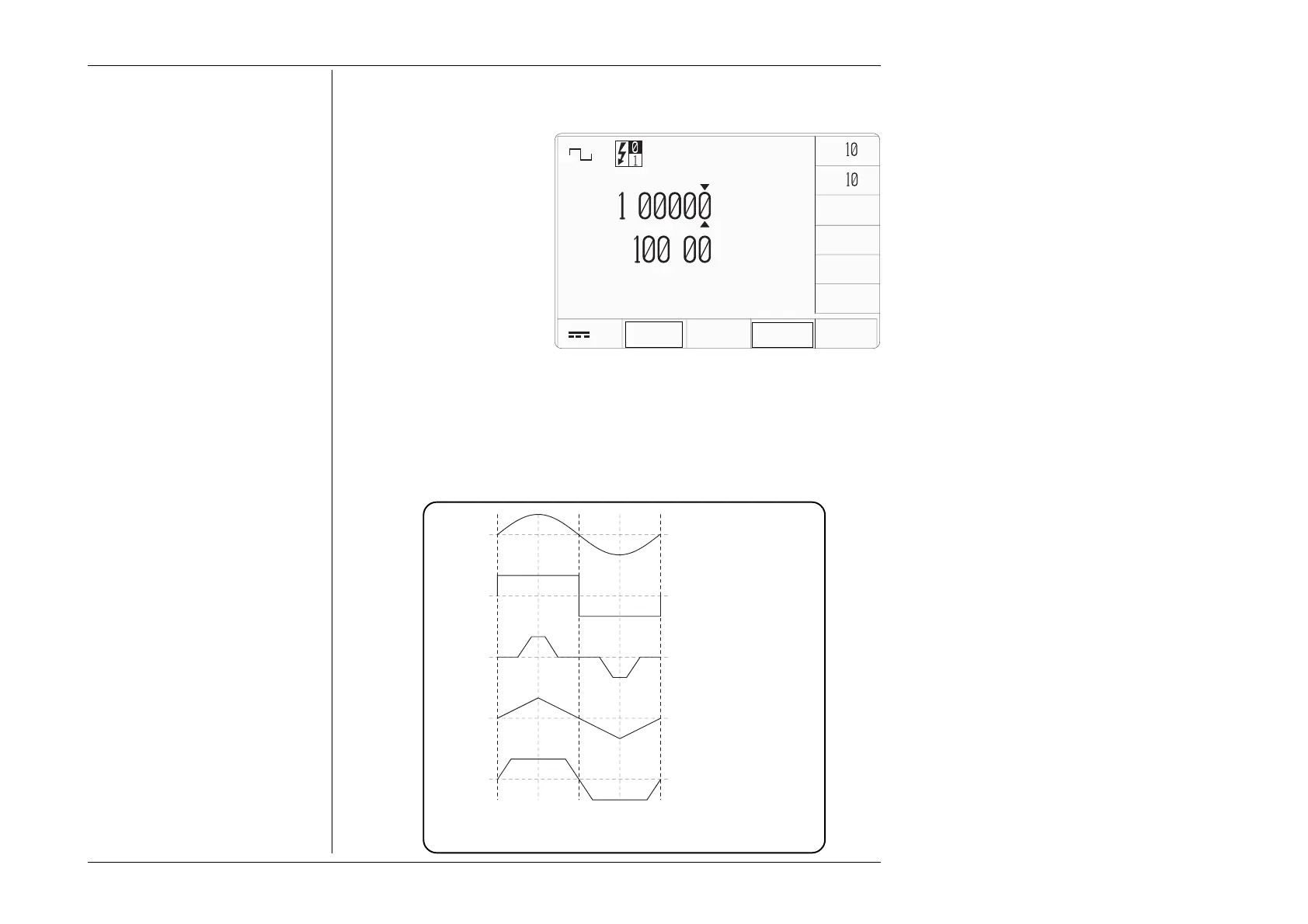

The screen reverts to the main
AC Current display, but with the
selected waveform identifier
('square' shown) transferred to the
top left corner:
The operation of the editing keys
is unchanged (paras 4.6.3.2).
The five waveshapes are shown
below, in their relative phase
positions (although, of course, only
one waveshape can exist at a time).
AC Current —
Available Waveshapes with their Relative Phase
A frequency limit of 1kHz is placed on all outputs with non-sinusoidal waveshapes,
which are specified only at frequencies up to 100Hz if Option 200 (10- and 50-turn current
coils) is in use.
Each waveshape's form factor results in its own mean/RMS and peak/RMS ratio, so for
the same RMS output value, the peak and mean readings at the top of the screen will
change between waveforms.
TODAYS DATE TIME
A
A
.
A
.
Hz
x
÷
∆
Φ
∆
%
WAVE
FORM
Peak 1.00377 A
Mean 0.99959 A
ZERO
SELECT
OUTPUT
Sinusoidal
Square
Impulse
Triangular
Trapezoidal
To Next Page
