4.6-16 Section 4: Using the Model 9100: AC Current Function
Final Width = 215mm
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Output Frequency (Hz) (log scale)
Output
Current
(log scale)
10Hz
10kHz
30kHz
320mA
30k10 10k 20k
20A
320mA
20A
10mA
100mA
1A
10A
100A
1000A
1k100
1000A
65Hz
9100 + Option 200
9100
No Option 200
440Hz
200A
200A
4.6.7 Amp-Hertz Limits
4.6.7.1 Amp-Hertz Profile (Sinusoidal Waveshape)
The combination of current and frequency of the sinewave output signal is enabled only
within the Amp-Hertz product envelope shown in Fig. 4.6.2.
Any attempt to select a combination of current and frequency (including the
application of deviations and/or offsets) outside these constraints will not be enabled.
An audible warning will be given, accompanied by a screen message:
'
Out of range', 'Target too big', or 'Frequency too big'.
If the abortive attempt involves the use of Direct Editing. then a further message
'
Error!' will be placed into the active editing box.

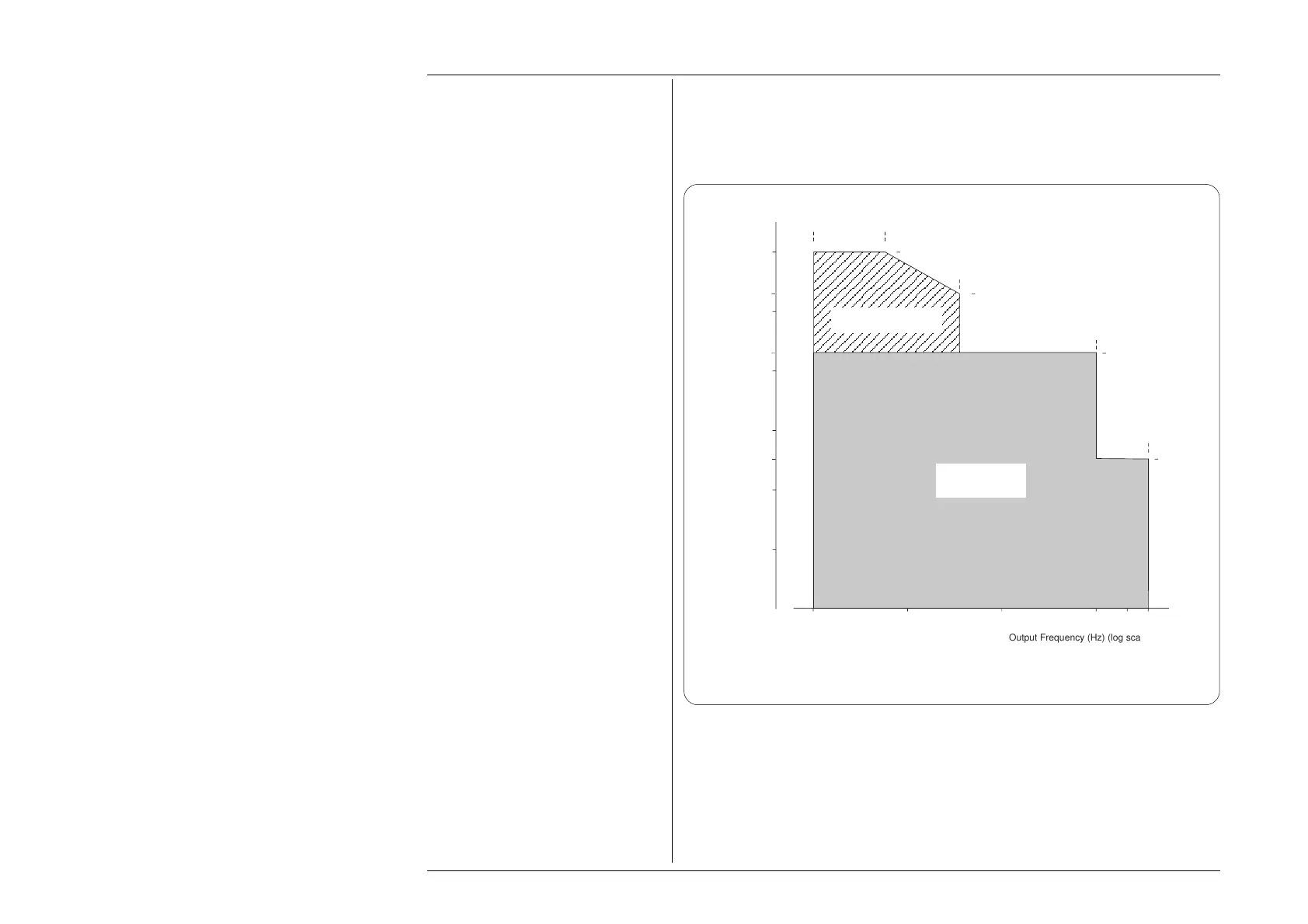

Fig. 4.6.2 9100 ACI Amp-Hertz Profile
