4.8-12 Section 4: Using the Model 9100: Conductance Function
Final Width = 215mm

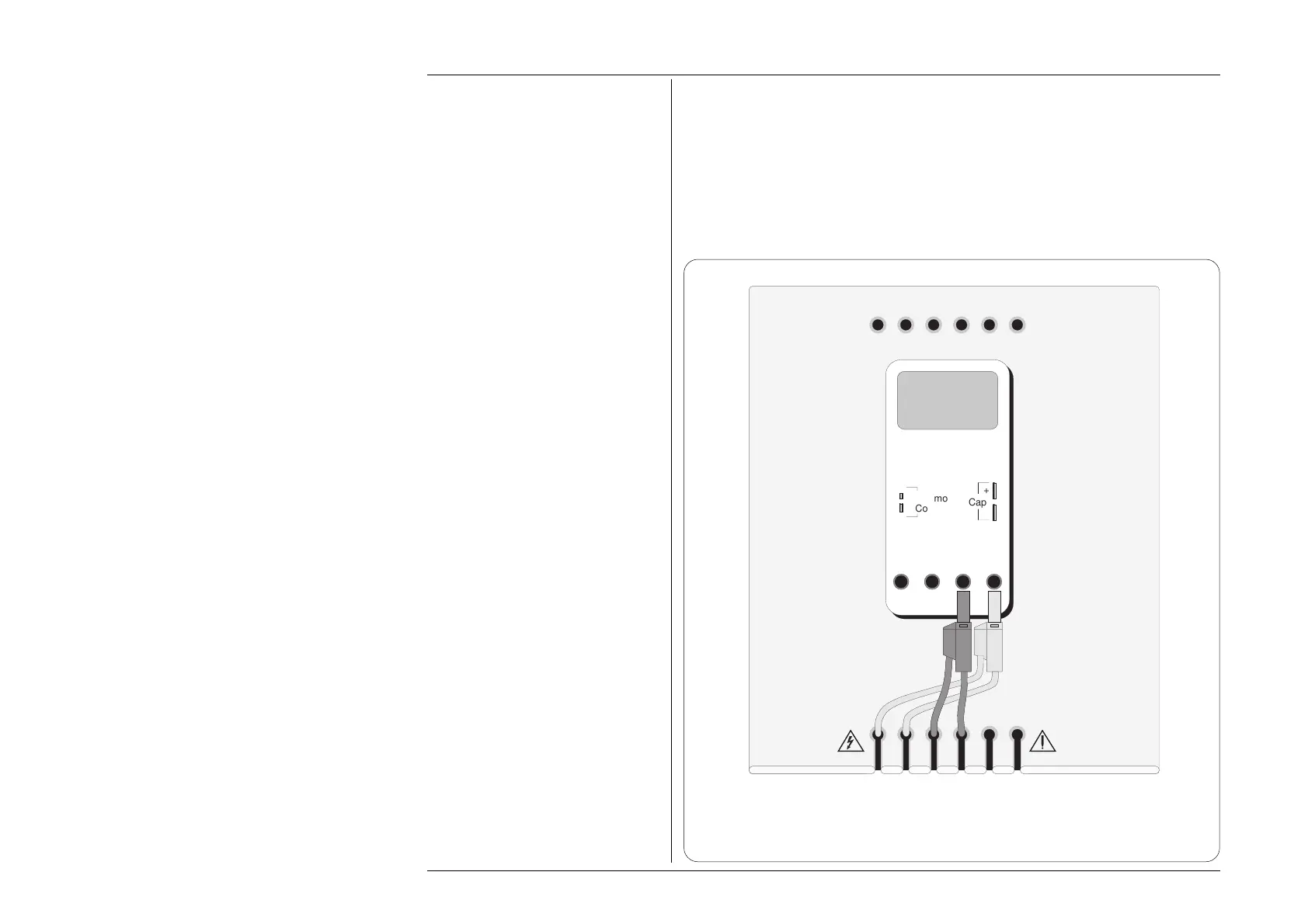

Fig. 4.8.4:
Interconnections for 2-Wire or 4-Wire UUT Conductance Calibration
(Leads which are not shown are not connected)
10A mA COM V-
A
A
A
A
Cap
+
-
I+mAI+ 20ALI-
sLsHH
WhiYellBlkBlkRedRed
Adaptor Parking Holes
Work Mat
UUT
A
A
A
A
Thermo
Couple
+
-
4.8.6 Conductance Routines for Calibrating UUTs
4.8.6.1 Interconnections
The general connection scheme for UUT calibration is illustrated in Fig. 4.8.4. The use
of either 4-wire remote sensing at the UUT terminals, or 2-wire local sensing at the 9100
terminals, is served by the same connections from the 9105 at the work mat. Selection
of 2/4-wire is carried out on the 9100 front panel.
For UUTs without safety banana sockets, use appropriate adaptors.
