4.11-2 Section 4: Using the Model 9100: % Duty Function
Final Width = 215mm
4.11.2 Selection of % Duty Function
(Manual Mode selected)
4.11.2.1 'Hz' Key
Pressing the
'Hz' key at the right of the 'CALIBRATION SYSTEM' panel selects the
Frequency Function.
4.11.2.2 Default Settings
At power-on the system defaults into DC Voltage function. Each time the
'Hz' key is
pressed, the system defaults into Frequency function.
If Frequency or Mark/Period is already active, then the % Duty menu screen is opened
by pressing the
% DUTY
screen key on the bottom row.
Whenever the
% DUTY
menu screen is opened, except on recovery from a standby period,

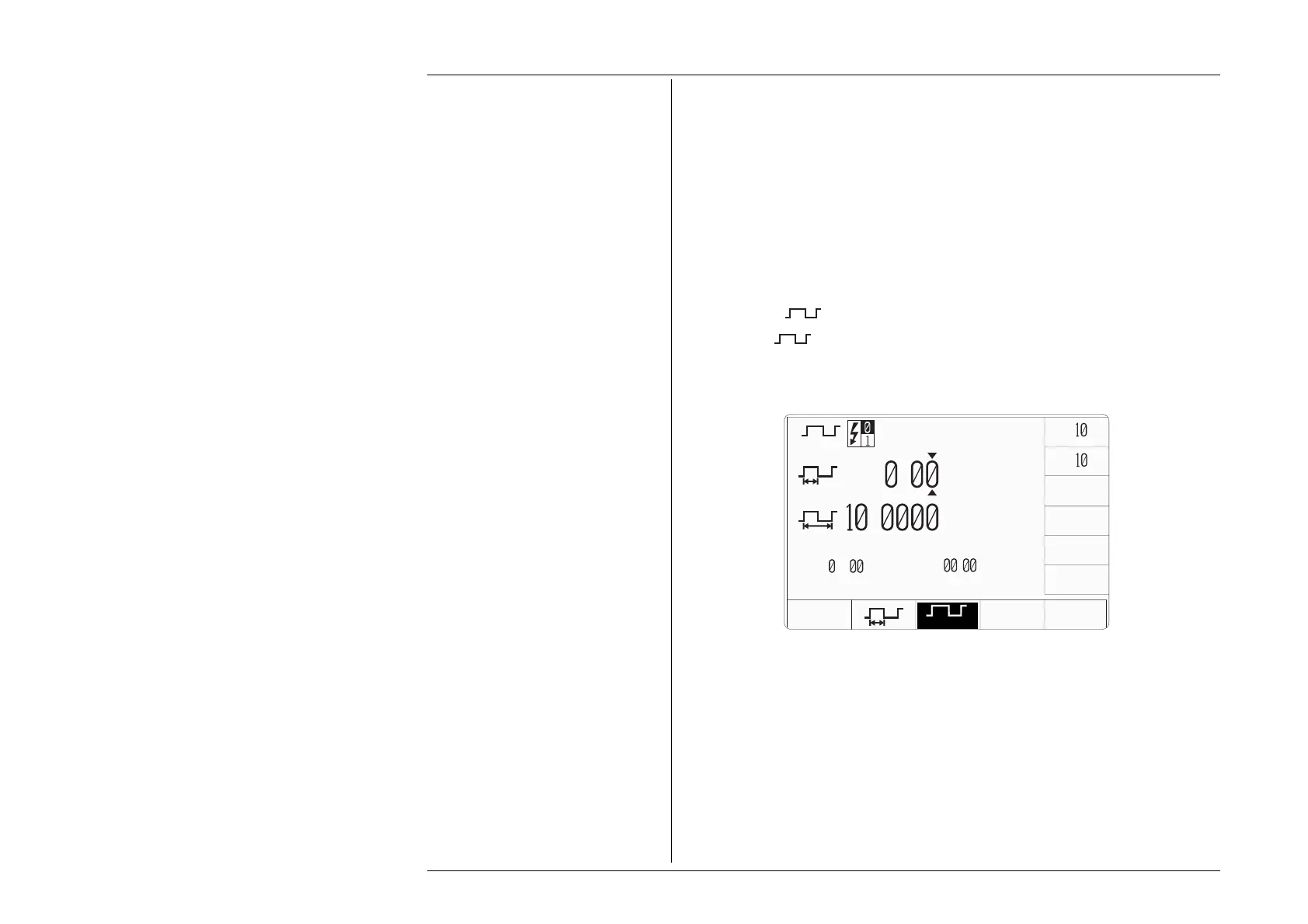

it will appear with the following default settings:
TODAYS DATE TIME
x
÷
5
.
%
Hz
+
5.
V
.
V
.
ms
INVERT
% DUTY
% DUTY
