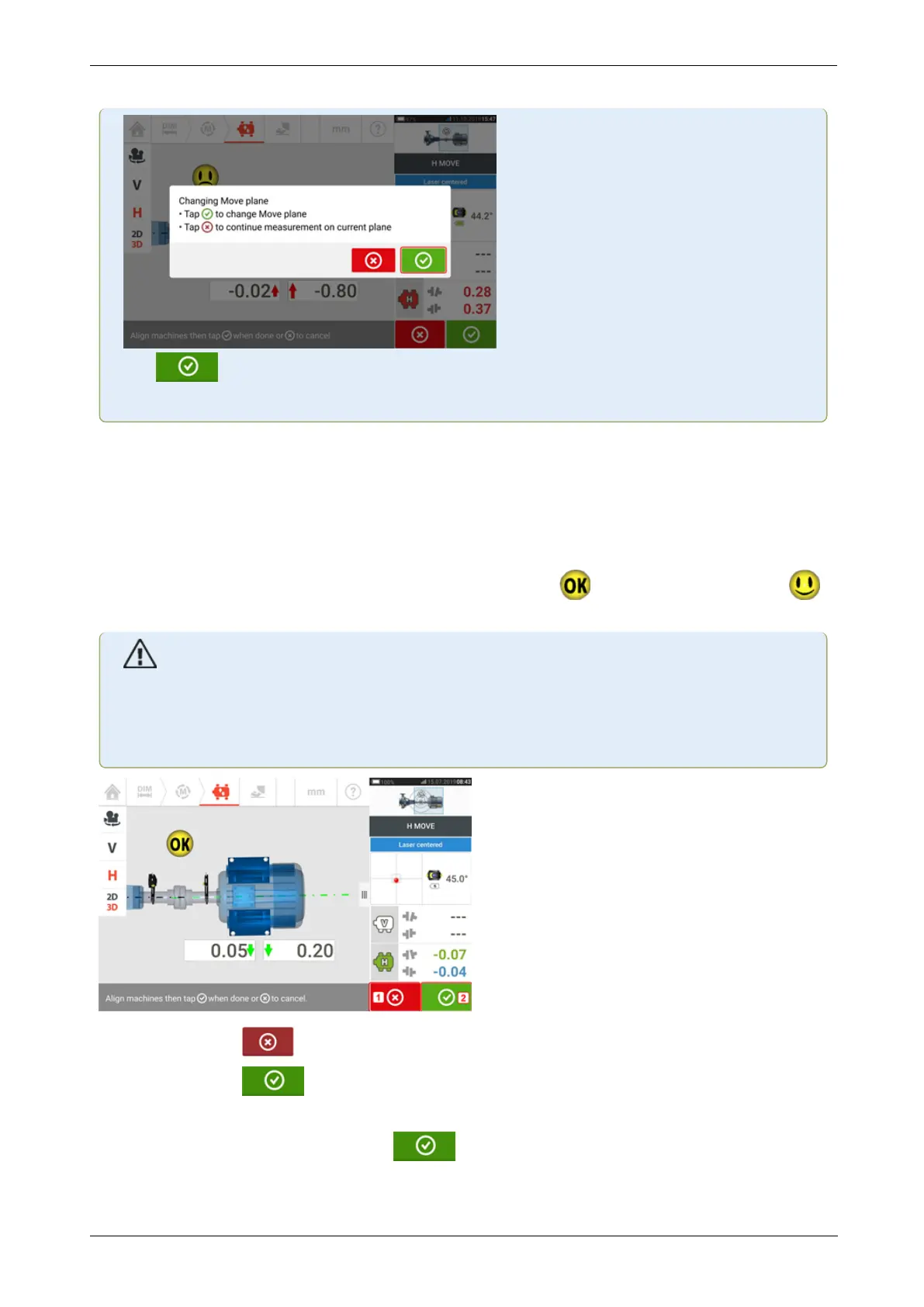

Tap to confirm changing Live Move planes. The sensor- reflector position selec-
tion screen appears.Proceed to position the displayed sensor as described previously.
After loosening the anchor bolts, correct the alignment condition by moving the machine feet
in the direction of the color coded bold arrows, keeping an eye on the smiley on the display
screen. The color coded bold arrows signify the attained coupling tolerance as follows: Blue
(excellent condition); Green (acceptable condition) and Red (poor condition). The color of the
arrows changes with the movements automatically. Watch the display screen carefully to
ensure that machine end and direction moved are correct. The smiley on the display screen
gives an indication of the alignment status as the machine is moved.
Machines should be moved to within acceptable tolerances ( ) or excellent tolerances ( )
while observing shaft alignment best practices.
CAUTION
Do NOT attempt to move the machine using heavy sledgehammer blows. This can cause
bearing damage, and also produce inaccurate Live Move results. Jack bolts on the feet
or other mechanical or hydraulic devices are recommended for moving machines.
l
(1) Tapping the 'Cancel' icon prompts the 'Cancel Move' hint.
l
(2) Tapping the 'Proceed' icon allows Live Move to be started afresh or the
machines be remeasured.
If the laser beam is centered, tapping starts Live Move automatically.
